SAP ABAP Table IST_SO_GSM_ATRH (IS-T: GSM Attributes for Service Objects)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IT (Application Component) Telecommunications
     ⤷ CRM_IST_SO (Package) Telco Service Object

Basic Data

Table Category	TRANSP	Transparent table

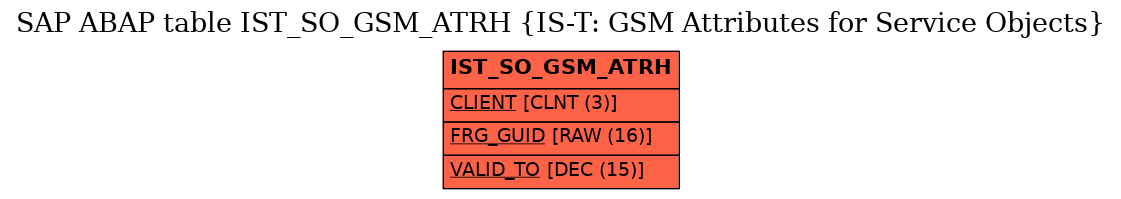

Transparent table	IST_SO_GSM_ATRH	Table Relationship Diagram
Short Description	IS-T: GSM Attributes for Service Objects

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Set History Key
2	CLIENT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	FRG_GUID	☑	COMT_FRG_GUID	SYSUUID	RAW	16	0	Set GUID
4	VALID_TO	☑	COMT_VALID_TO	BCOS_TSTMP	DEC	15	0	Valid To (Time Stamp)
5	.INCLUDE	☐				0	0	Product History: Sets - Administration Data
6	VALID_FROM	☐	COMT_VALID_FROM	BCOS_TSTMP	DEC	15	0	Valid From (Time Stamp)
7	UPNAME	☐	COMT_UPNAME	UNAME	CHAR	12	0	Name of the User Who Last Changed the Set
8	CNTRY_CDE	☐	GSM_COUNTRY_CODE	GSM_COUNTRY_CODE	CHAR	3	0	Country Code
9	AREA_CDE	☐	GSM_AREA_CODE	GSM_AREA_CODE	CHAR	7	0	Area Code
10	TEL_NUM	☐	GSM_TELNUM	GSM_TELNUM	CHAR	10	0	Telephone Number
11	SIM_ID	☐	GSM_SIMID	GSM_SIMID	CHAR	20	0	SIM Card Number

History

Last changed by/on	SAP	20100420
SAP Release Created in	500
