SAP ABAP Table ISH_MARA (IS-H MM: Append Structure for MARA)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM (Application Component) Customer Relationship Management
⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
⤷ NBAS (Package) Appl. development Hospital System master data, catalogs
⤷ CRM (Application Component) Customer Relationship Management
⤷ CRM_APPLICATION (Package) All CRM Components Without Special Structure Packages
⤷ NBAS (Package) Appl. development Hospital System master data, catalogs
Basic Data
Table Category | INTTAB | Structure |

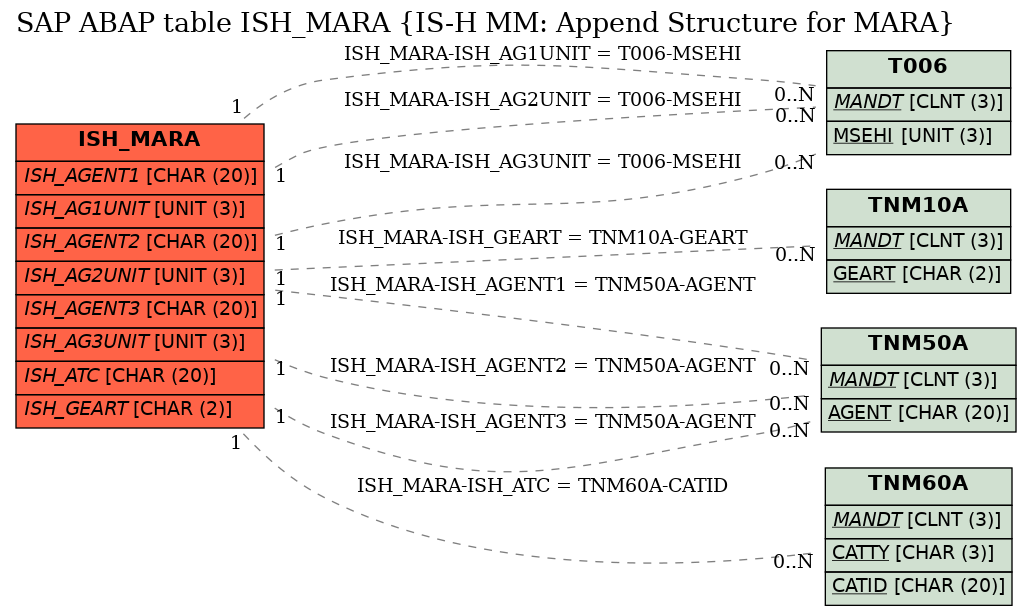

Structure | ISH_MARA | Table Relationship Diagram |
Short Description | IS-H MM: Append Structure for MARA |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | ISH_AGENT1 | ISH_AGENT1 | ISH_AGENT | CHAR | 20 | 0 | IS-H MM: Active Ingredient 1 (Main Active Ingredient) | TNM50A | |
2 | ISH_AG1QUANT | ISH_AGQUANT | MENG12_3 | QUAN | 12 | 3 | IS-H MM: Quantity of Active Ingredient in a Material | ||
3 | ISH_AG1UNIT | ISH_AGUNIT | MEINS | UNIT | 3 | 0 | IS-H MM: Unit of Measure of Active Ingredient in a Material | T006 | |
4 | ISH_AGENT2 | ISH_AGENT2 | ISH_AGENT | CHAR | 20 | 0 | IS-H MM: Active Ingredient 2 | TNM50A | |
5 | ISH_AG2QUANT | ISH_AGQUANT | MENG12_3 | QUAN | 12 | 3 | IS-H MM: Quantity of Active Ingredient in a Material | ||
6 | ISH_AG2UNIT | ISH_AGUNIT | MEINS | UNIT | 3 | 0 | IS-H MM: Unit of Measure of Active Ingredient in a Material | T006 | |
7 | ISH_AGENT3 | ISH_AGENT3 | ISH_AGENT | CHAR | 20 | 0 | IS-H MM: Active Ingredient 3 | TNM50A | |
8 | ISH_AG3QUANT | ISH_AGQUANT | MENG12_3 | QUAN | 12 | 3 | IS-H MM: Quantity of Active Ingredient in a Material | ||
9 | ISH_AG3UNIT | ISH_AGUNIT | MEINS | UNIT | 3 | 0 | IS-H MM: Unit of Measure of Active Ingredient in a Material | T006 | |
10 | ISH_KAT1 | ISH_KZKAT1 | XFELD | CHAR | 1 | 0 | IS-H MM: Catalog 1 Indicator | ||
11 | ISH_KAT2 | ISH_KZKAT2 | XFELD | CHAR | 1 | 0 | IS-H MM: Catalog 2 Indicator | ||
12 | ISH_KAT3 | ISH_KZKAT3 | XFELD | CHAR | 1 | 0 | IS-H MM: Catalog 3 Indicator | ||
13 | ISH_BTM | ISH_KZBTM | XFELD | CHAR | 1 | 0 | IS-H MM: Anesthetic Indicator | ||
14 | ISH_IMP | ISH_KZIMP | XFELD | CHAR | 1 | 0 | IS-H MM: Imported Material Indicator | ||
15 | ISH_GEF | ISH_KZGEF | XFELD | CHAR | 1 | 0 | IS-H MM: Hazardous Substance Indicator | ||
16 | ISH_ATC | ISH_ATC | ISH_MCATID | CHAR | 20 | 0 | IS-H MM: ATC Code | TNM60A | |
17 | ISH_GEART | ISH_MGEART | ISH_MGEART | CHAR | 2 | 0 | IS-H MM: Approval Type | TNM10A | |
18 | ISH_BILMOD | ISH_MM_BILMOD | ISH_MM_BILMOD | CHAR | 1 | 0 | Mode for Case-Related Material Billing |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | ISH_MARA | ISH_AG1UNIT | T006 | MSEHI | REF | 1 | CN |
2 | ISH_MARA | ISH_AG2UNIT | T006 | MSEHI | REF | 1 | CN |
3 | ISH_MARA | ISH_AG3UNIT | T006 | MSEHI | REF | 1 | CN |
4 | ISH_MARA | ISH_AGENT1 | TNM50A | AGENT | REF | 1 | CN |
5 | ISH_MARA | ISH_AGENT2 | TNM50A | AGENT | REF | 1 | CN |
6 | ISH_MARA | ISH_AGENT3 | TNM50A | AGENT | REF | 1 | CN |
7 | ISH_MARA | ISH_ATC | TNM60A | CATID | REF | 1 | CN |
8 | ISH_MARA | ISH_GEART | TNM10A | GEART | REF | 1 | CN |
History
Last changed by/on | SAP | 20070917 |
SAP Release Created in | 463B |
