SAP ABAP Table INITQKAT (Internal structure for QKAT selection)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-MSE (Application Component) Mobile Service
     ⤷ IWOC (Package) Application Development R/3 Work Order Cycle

Basic Data

Table Category	INTTAB	Structure

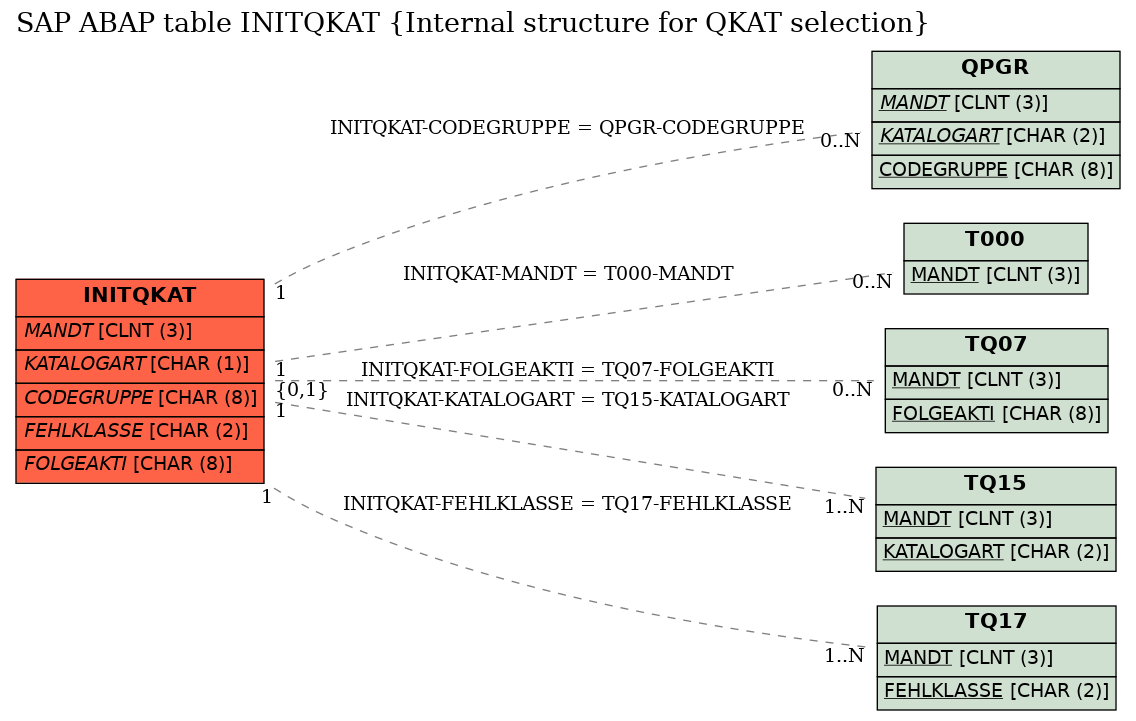

Structure	INITQKAT	Table Relationship Diagram
Short Description	Internal structure for QKAT selection

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	INXPT	☐	INXX_D	INT4	INT4	10	0	Pointer to Main Storage Table
2	TABIX	☐	INXX_D	INT4	INT4	10	0	Pointer to Main Storage Table
3	.INCLUDE	☐				0	0	Transfer structure for code of a code group and text
4	.INCLUDE	☐				0	0	Inspection Catalog Codes
5	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
6	KATALOGART	☐	QKATART	QKATART	CHAR	1	0	Catalog	TQ15
7	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
8	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
9	VERSION	☐	QVERSNR	QVERSNR	CHAR	6	0	Version Number
10	GUELTIGAB	☐	DATUV	DATUM	DATS	8	0	Valid-From Date
11	FEHLKLASSE	☐	QFEHLKLAS	QFEHLKLAS	CHAR	2	0	Defect class	TQ17
12	ERSTELLER	☐	QERSTELLER	QAENDERER	CHAR	12	0	Name of User Who Created the Data Record
13	E_DATUM	☐	QDATUMERST	DATUM	DATS	8	0	Date on Which the Data Record Was Created
14	AENDERER	☐	QAENDERER	QAENDERER	CHAR	12	0	Name of User who Most Recently Changed the Data Record
15	A_DATUM	☐	QDATUMAEND	DATUM	DATS	8	0	Date on Which Data Record Was Changed
16	INAKTIV	☐	QINAK	QKZ	CHAR	1	0	Status of Code Group or Code Record
17	VERWENDUNG	☐	QVERW	QKZ	CHAR	1	0	Data Record is Being Used
18	GELOESCHT	☐	QGEL	QKZ	CHAR	1	0	Data Record Was Deleted
19	FOLGEAKTI	☐	QFOLGEAKTI	QFOLGEAKTI	CHAR	8	0	Follow-Up Action	TQ07
20	KURZTEXTCD	☐	QCODETEXT	QTEXT80	CHAR	80	0	Description of a Code in the Catalog
21	LTEXTCD	☐	QLTEXTCODE	QKZ	CHAR	1	0	Long Text Exists for the Code
22	KURZTEXTGR	☐	QKURZTEXT	QKURZTEXT	CHAR	40	0	Short Text
23	LTEXTGR	☐	QLTEXTGRP	QKZ	CHAR	1	0	Long Text Exists for the Code Group
24	SPRACHE	☐	SPRAS	SPRAS	LANG	1	0	Language Key	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	INITQKAT	CODEGRUPPE	QPGR	CODEGRUPPE	KEY	1	CN
2	INITQKAT	FEHLKLASSE	TQ17	FEHLKLASSE	REF	1	N
3	INITQKAT	FOLGEAKTI	TQ07	FOLGEAKTI		C	CN
4	INITQKAT	KATALOGART	TQ15	KATALOGART	KEY	1	N
5	INITQKAT	MANDT	T000	MANDT	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in	470
