SAP ABAP Table IEEDM_FORMINSTALLOC_SCREEN (Table Control Data for Allocation of Profile to Parameter)
Hierarchy
☛
IS-UT (Software Component) SAP Utilities/Telecommunication
⤷ IS-U-EDM (Application Component) Energy Data Management
⤷ EE_EDM_PRO (Package) Profile Management
⤷ IS-U-EDM (Application Component) Energy Data Management
⤷ EE_EDM_PRO (Package) Profile Management
Basic Data
Table Category | INTTAB | Structure |

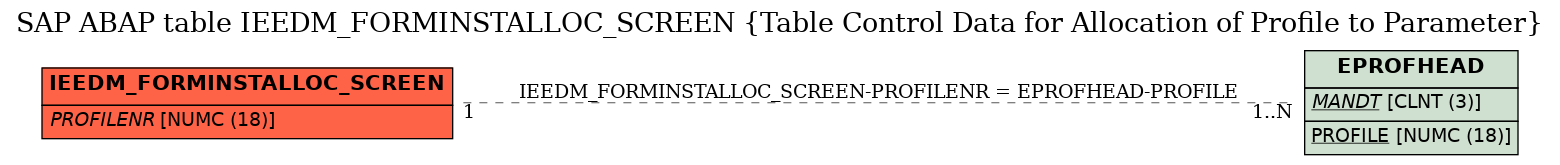

Structure | IEEDM_FORMINSTALLOC_SCREEN | Table Relationship Diagram |
Short Description | Table Control Data for Allocation of Profile to Parameter |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | ISU EDM Input Parameter Allocation for Formula Instance | |||||
2 | INSTANCE_NUMBER | E_INSTANCE_NUMBER | E_FORMULAINSTANCE | NUMC | 18 | 0 | Formula Allocation | * | |
3 | .INCLUDE | 0 | 0 | ISU EDM Key Fields for Input Parameters of Formula Instance | |||||
4 | PARNUMBER | EPARNUMBER | EPARNUMBER | NUMC | 2 | 0 | Parameter number | ||
5 | PARCSNO | E_PARCSNO | NUMC6 | NUMC | 6 | 0 | Consecutive number of parameter | ||
6 | .INCLUDE | 0 | 0 | Structure for To-Date | |||||
7 | DATETO | E_EDMDATETO | DATS | 8 | 0 | To-Date | |||
8 | TIMETO | E_EDMTIMETO | TIMS | 6 | 0 | To-Time | |||
9 | .INCLUDE | 0 | 0 | ISU EDM Data Fields for Input Parameters of Formula Instance | |||||
10 | .INCLUDE | 0 | 0 | Structure for From-Date | |||||
11 | DATEFROM | E_EDMDATEFROM | DATS | 8 | 0 | From-Date | |||
12 | TIMEFROM | E_EDMTIMEFROM | TIMS | 6 | 0 | From-time | |||
13 | PROFILENR | E_PROFILE | E_PROFILE | NUMC | 18 | 0 | Number of EDM Profile | EPROFHEAD | |
14 | FL_TRIGGER | E_FL_TRIGGER | BOOLE | CHAR | 1 | 0 | Does not trigger calculation | ||
15 | STATUS_NOT_USED | E_FL_STATUS_NOT_USED | BOOLE | CHAR | 1 | 0 | Ignore Parameter Status | ||
16 | CONST_VALUE | E_CONST_VALUE | DEC | 31 | 14 | Constant Value for Formula Allocation Parameter | |||
17 | SELECTED | KENNZ | KENNZ | CHAR | 8 | 0 | Key figure in the Logistics Information Library (LIL) | * |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | IEEDM_FORMINSTALLOC_SCREEN | PROFILENR | EPROFHEAD | PROFILE | 1 | N |
History
Last changed by/on | SAP | 20050224 |
SAP Release Created in | 462 |
