SAP ABAP Table ICL_CMC_ACT_REF_PAR (Parameters for Coverage Referrals)

Hierarchy

☛ INSURANCE (Software Component) SAP Insurance
   ⤷ FS-CM (Application Component) Claims Management
     ⤷ ICL_BASIS (Package) FS-CM: General Functionality

Basic Data

Table Category	INTTAB	Structure

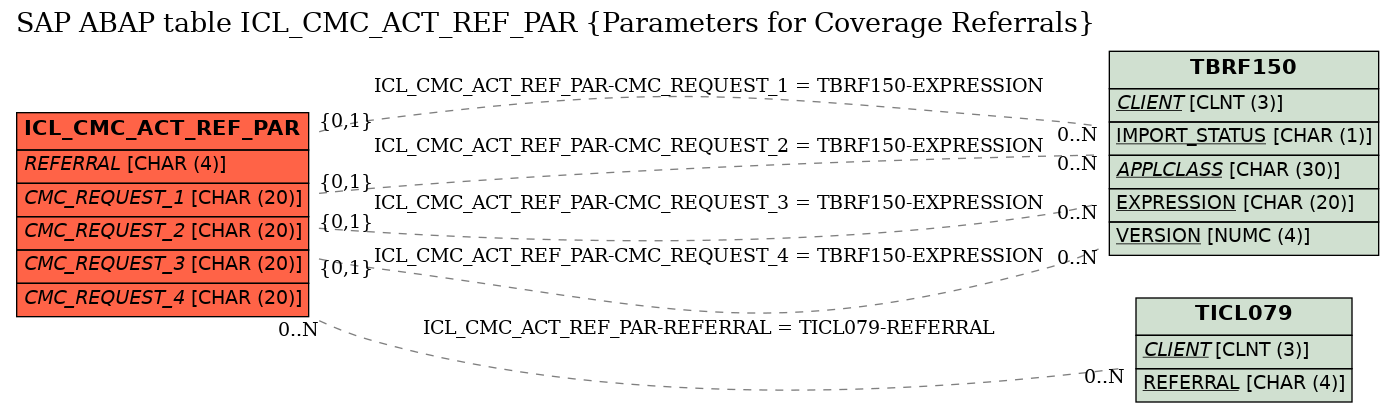

Structure	ICL_CMC_ACT_REF_PAR	Table Relationship Diagram
Short Description	Parameters for Coverage Referrals

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	REFERRAL	☐	ICL_REFERRAL	ICL_REFERRAL	CHAR	4	0	Coverage Referral	TICL079
2	TEXT	☐	ICL_REFERRALN	TEXT60	CHAR	60	0	Name for coverage referral
3	MESSAGE	☐	ICL_REFT	ICL_TEXT	CHAR	70	0	Name of Coverage Referral
4	XMSGVA	☐	ICL_CMC_XMSGVA	XFIELD	CHAR	1	0	Message Variables Will Be Loaded
5	XREQUEST	☐	ICL_CMC_XREQUEST	XFIELD	CHAR	1	0	Do value requests exist for this message
6	MSGV1	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
7	MSGV2	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
8	MSGV3	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
9	MSGV4	☐	ICL_CMC_MSGVA	ICL_TXT50	CHAR	50	0	Message Variable
10	CMC_REQUEST_1	☐	ICL_CMC_REQUEST	BRF_EXPRESSION	CHAR	20	0	Value Request	TBRF150
11	REQUEST_LEN_1	☐	ICL_CMC_OUTLEN	ICL_CMC_OUTLEN	NUMC	2	0	Output length
12	REQUEST_NAME_1	☐	ICL_CMC_REQUESTN	TEXT40	CHAR	40	0	Name of Claim Control Value Request
13	CMC_REQUEST_2	☐	ICL_CMC_REQUEST	BRF_EXPRESSION	CHAR	20	0	Value Request	TBRF150
14	REQUEST_LEN_2	☐	ICL_CMC_OUTLEN	ICL_CMC_OUTLEN	NUMC	2	0	Output length
15	REQUEST_NAME_2	☐	ICL_CMC_REQUESTN	TEXT40	CHAR	40	0	Name of Claim Control Value Request
16	CMC_REQUEST_3	☐	ICL_CMC_REQUEST	BRF_EXPRESSION	CHAR	20	0	Value Request	TBRF150
17	REQUEST_LEN_3	☐	ICL_CMC_OUTLEN	ICL_CMC_OUTLEN	NUMC	2	0	Output length
18	REQUEST_NAME_3	☐	ICL_CMC_REQUESTN	TEXT40	CHAR	40	0	Name of Claim Control Value Request
19	CMC_REQUEST_4	☐	ICL_CMC_REQUEST	BRF_EXPRESSION	CHAR	20	0	Value Request	TBRF150
20	REQUEST_LEN_4	☐	ICL_CMC_OUTLEN	ICL_CMC_OUTLEN	NUMC	2	0	Output length
21	REQUEST_NAME_4	☐	ICL_CMC_REQUESTN	TEXT40	CHAR	40	0	Name of Claim Control Value Request
22	SHOW_1	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
23	SHOW_2	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
24	SHOW_3	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')
25	SHOW_4	☐	BOOLE_D	BOOLE	CHAR	1	0	Data element for domain BOOLE: TRUE (='X') and FALSE (=' ')

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	ICL_CMC_ACT_REF_PAR	CMC_REQUEST_1	TBRF150	EXPRESSION	REF	C	CN
2	ICL_CMC_ACT_REF_PAR	CMC_REQUEST_2	TBRF150	EXPRESSION	REF	C	CN
3	ICL_CMC_ACT_REF_PAR	CMC_REQUEST_3	TBRF150	EXPRESSION	REF	C	CN
4	ICL_CMC_ACT_REF_PAR	CMC_REQUEST_4	TBRF150	EXPRESSION	REF	C	CN
5	ICL_CMC_ACT_REF_PAR	REFERRAL	TICL079	REFERRAL

History

Last changed by/on	SAP	20110901
SAP Release Created in
