SAP ABAP Table HIER_IFACE_SOL (Hierarchy Maintenance Tool Node Passing Interface)

Hierarchy

☛ ST (Software Component) SAP Solution Manager Tool
   ⤷ SV-SMG-TWB-BCA (Application Component) Business Process Change Analyzer
     ⤷ AGS_BPCA_EN (Package) Business Process Chanage Analysis

Basic Data

Table Category	INTTAB	Structure

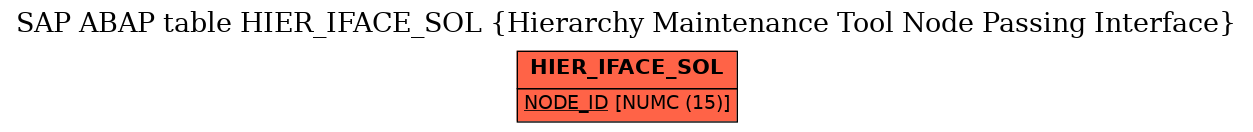

Structure	HIER_IFACE_SOL	Table Relationship Diagram
Short Description	Hierarchy Maintenance Tool Node Passing Interface

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	NODE_ID	☑	DSWPDOBJECTID	DSWPDOBJECTID	NUMC	15	0	Object ID
2	NODE_TYPE	☐	DMDDIDENTIFIER	DMDDIDENTIFIER	CHAR	20	0	General Identifier (Length 20)
3	NODE_LEVEL	☐	SEU_LEVEL	SEU_LEVEL	NUMC	2	0	Node level
4	EXTENSION	☐	HIER_NAMES	HIER_NAMES	CHAR	15	0	Structure enhancement ID	*
5	PARENT_ID	☐	DSWPDOBJECTID	DSWPDOBJECTID	NUMC	15	0	Object ID
6	BROTHER_ID	☐	DSWPDOBJECTID	DSWPDOBJECTID	NUMC	15	0	Object ID
7	TREE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
8	REFNODE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
9	REFTREE_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
10	LOG_REF	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
11	LOCAL_FLAG	☐	HIER_LOCAL	HIER_YESNO	CHAR	1	0	Local use: Must not be referenced
12	VALID_F_R	☐	SYSAPRL	SYCHAR04	CHAR	4	0	Release of SAP System
13	VALID_T_R	☐	SYSAPRL	SYCHAR04	CHAR	4	0	Release of SAP System
14	VALID_F_D	☐	SYDATUM	SYDATS	DATS	8	0	System Date
15	VALID_T_D	☐	SYDATUM	SYDATS	DATS	8	0	System Date
16	FORCE_PLUS	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
17	W_SUBNODES	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
18	FILTER_ID	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
19	LOST_EXT	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
20	LOST_NODE	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
21	APPL_FLAG1	☐	HIER_AFLAG	CHAR1	CHAR	1	0	Flag: Use by application only
22	APPL_FLAG2	☐	HIER_AFLAG	CHAR1	CHAR	1	0	Flag: Use by application only
23	APPL_FLAG3	☐	HIER_AFLAG	CHAR1	CHAR	1	0	Flag: Use by application only
24	.INCLUDE	☐				0	0	Creation data and change data for gen. hierarchy storage
25	FUSER	☐	HIER_FUSER	HIER_USER	CHAR	12	0	Created by
26	FDATE	☐	HIER_FDATE	SYDATS	DATS	8	0	Created on
27	FTIME	☐	HIER_FTIME	SYTIME	TIMS	6	0	Created at
28	FRELEASE	☐	SYSAPRL	SYCHAR04	CHAR	4	0	Release of SAP System
29	LUSER	☐	HIER_LUSER	HIER_USER	CHAR	12	0	Last changed by
30	LDATE	☐	HIER_LDATE	SYDATS	DATS	8	0	Last Changed On
31	LTIME	☐	HIER_LTIME	SYTIME	TIMS	6	0	Time of Last Change
32	LRELEASE	☐	SYSAPRL	SYCHAR04	CHAR	4	0	Release of SAP System
33	NODE_KEY	☐	TV_NODEKEY	TM_CHAR12	CHAR	12	0	Tree Control: Node Key
34	PARENT_KEY	☐	TV_NODEKEY	TM_CHAR12	CHAR	12	0	Tree Control: Node Key
35	IS_CUT	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
36	CHECKBOXST	☐	HIER_BOXST	HIER_BOXST	CHAR	1	0	Status of a checkbox in a tree structure; values: A, I, P
37	MANUAL_SET	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
38	NOFRONTEND	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
39	NO_DISPLAY	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
40	HIDDEN_FL	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
41	DOUBLE_FL	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
42	DEFAULTFLG	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
43	COPY_NODE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
44	COPY_TREE	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
45	COPNODFRST	☐	HIER_GUID	SYCHAR32	CHAR	32	0	Unique ID - 32 characters
46	COPTREFRST	☐	HIER_TREEG	SYCHAR32	CHAR	32	0	GUID for Structure
47	COMPONENT	☐	SYSDLVUNIT	SYSDLVUNIT	CHAR	30	0	Technical Description of Logical Components	*
48	SYSTEMINST	☐	SYSTEMINST	SYSTEMINST	CHAR	20	0	Code for an Assigned System Landscape in Project	*
49	COMPRELFR	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
50	COMPRELTO	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
51	NODRAGDROP	☐	HIER_YESNO	HIER_YESNO	CHAR	1	0	Flag with values ' ' and 'X'
52	PRDVERSFR	☐	SBORPV_FRM	SBORPVNR	CHAR	20	0	Component Release
53	PRDVERSTO	☐	SBORPV_TO	SBORPVNR	CHAR	20	0	Component Release

History

Last changed by/on	SAP	20100705
SAP Release Created in	400
