SAP ABAP Table FTPT_IMR_SURFACE (IMR - Other Segments of Trip as Flights)

Hierarchy

☛ SAP_HRGXX (Software Component) Sub component SAP_HRGXX of SAP_HR
   ⤷ FI-TV-PL (Application Component) Travel Planning
     ⤷ PTRI (Package) Interfaces for Travel Planning

Basic Data

Table Category	TRANSP	Transparent table

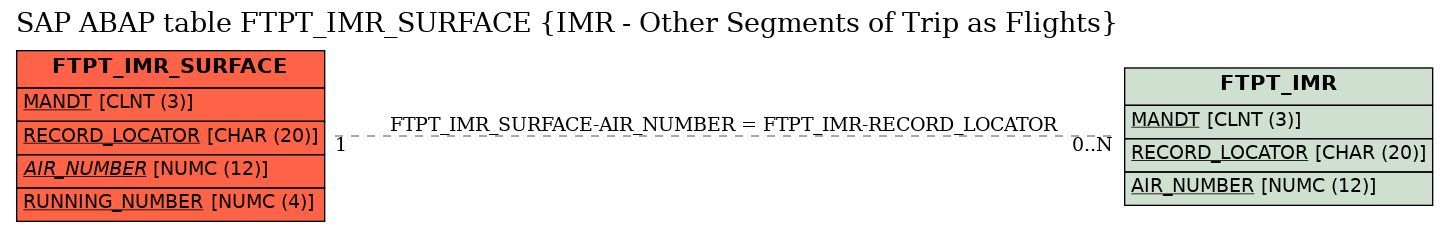

Transparent table	FTPT_IMR_SURFACE	Table Relationship Diagram
Short Description	IMR - Other Segments of Trip as Flights

Delivery and Maintenance

Pool/cluster
Delivery Class	A	Application Table (Master- and Transaction Data)
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☑				0	0	Key for Information Management record
2	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	*
3	RECORD_LOCATOR	☑	PNR_RECORD_LOCATOR	FTPD_PNR_RECORD_LOCATOR	CHAR	20	0	Passenger Name Record Locator
4	AIR_NUMBER	☑	AIR_RECORD_NUMBER		NUMC	12	0	Air record unique identifier	FTPT_IMR
5	RUNNING_NUMBER	☑	RUNNING_NUMBER	FTPD_RUNNING_NUMBER	NUMC	4	0	Index
6	.INCLUDE	☐				0	0	AIR : Structure to describe Flight information
7	TKT_SEG_IND	☐			CHAR	1	0
8	FLIGHT_SEG_TYPE	☐	API_1A_AIR_SEGMENT_TYPE	FTPD_AIR_SEGMENT_TYPE	NUMC	2	0	AIR : Description of segment type for itinerary portion
9	TATTOO_NUMBER	☐	API_1A_TATTOO_NUMBER		NUMC	4	0	Amadeus unique identifier for each element stored in PNR
10	DISPLAY_NUMBER	☐	API_1A_DISPLAY_NUMBER		NUMC	4	0	Amadeus unique identifier for each element displayed in PNR
11	STOPOVER_IND	☐			CHAR	1	0
12	DEP_ARPT	☐	API_1A_AIRPORT_CODE		CHAR	5	0	Airport code definition
13	DEP_ARPT_TEXT	☐			CHAR	20	0
14	ARR_ARPT	☐	API_1A_AIRPORT_CODE		CHAR	5	0	Airport code definition
15	ARR_ARPT_TEXT	☐			CHAR	20	0
16	VOID_INDICATOR	☐			CHAR	1	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FTPT_IMR_SURFACE	AIR_NUMBER	FTPT_IMR	RECORD_LOCATOR	KEY	1	CN

History

Last changed by/on	SAP	20010720
SAP Release Created in
