SAP ABAP Table FRMLS_SUBRANGE (RMS-FRM: Value Range for a Substance)
Hierarchy
☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration
Basic Data
Table Category INTTAB    Structure

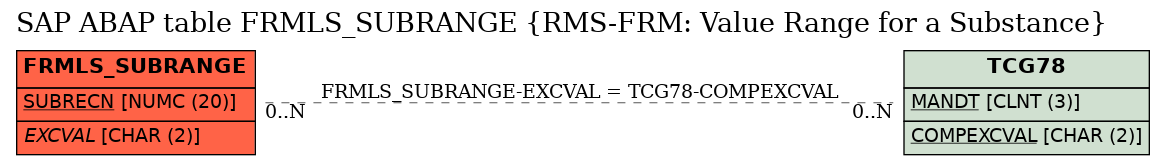

Structure FRMLS_SUBRANGE   Table Relationship Diagram
Short Description RMS-FRM: Value Range for a Substance
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 SUBRECN FRMLE_SUBRECN ESDRECN NUMC 20   0   Substance Key
2 .INCLUDE       0   0   RMS-FRM: Value Range of a Component
3 COMPTGT FRMLE_COMPTGT EHSBD_QUAN6_6 QUAN 12   6   Quantity of a Material or Substance Item
4 COMPTGT_ERR_FLG FRMLE_ERR_FLG FLAG CHAR 1   0   Error When Converting Units
5 OPLOW FRMLE_OPLOW FRMLD_OPLOW CHAR 2   0   Operator for Lower Limit
6 COMPLOW FRMLE_COMPLOW FRMLD_QUAN6_6 QUAN 12   6   Value of Lower Limit of Item Quantity
7 OPUP FRMLE_OPUP FRMLD_OPUP CHAR 2   0   Operator for Upper Limit
8 COMPUPP FRMLE_COMPUPP FRMLD_QUAN6_6 QUAN 12   6   Value of Upper Limit of Item Quantity
9 UNIT FRMLE_COMPUNIT MEINS UNIT 3   0   Unit of Measure of a Material or Substance Item *
10 EXCVAL FRMLE_EXCVAL ESDCOMPEXCVAL CHAR 2   0   Exception Value TCG78
11 ADDVAL FRMLE_ADDVAL CHAR030 CHAR 30   0   Freely Available Field of Type Character String w.30 Characs
12 COMPTGT_FLT FRMLE_FLT FLTP FLTP 16   16   Floating-Point Value
13 COMPLOW_FLT FRMLE_COMPLOW_FLT FLTP FLTP 16   16   Lower Limit Value of Item Quantity (Floating Point Value)
14 COMPUPP_FLT FRMLE_COMPUPP_FLT FLTP FLTP 16   16   Upper Limit Value of Item Quantity (Floating Point Value)
15 OVR_FACTOR FRMLE_OVR_FACTOR FRMLD_OVR NUMC 3   0   Overrun Factor
Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 FRMLS_SUBRANGE EXCVAL TCG78 COMPEXCVAL
History
Last changed by/on SAP  20130529
SAP Release Created in
