SAP ABAP Table FRMLS_SUB_POS (RMS-FRM: Substance Item)
Hierarchy
☛
EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration
⤷ PLM-RM (Application Component) Recipe Management
⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration
Basic Data
Table Category | INTTAB | Structure |

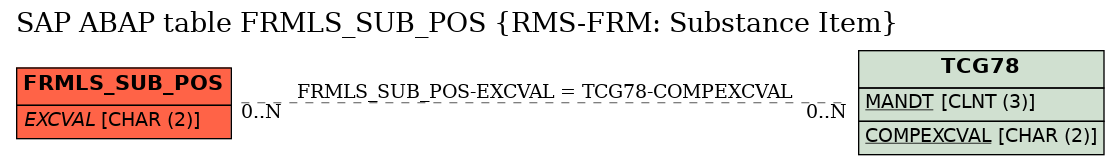

Structure | FRMLS_SUB_POS | Table Relationship Diagram |
Short Description | RMS-FRM: Substance Item |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | STD_ALT_FLG | FRMLE_STDALT_FLG | FRMLD_FLAG | CHAR | 1 | 0 | Standard Item | ||
2 | .INCLUDE | 0 | 0 | RMS-FRM: Value Range for a Substance | |||||
3 | SUBRECN | FRMLE_SUBRECN | ESDRECN | NUMC | 20 | 0 | Substance Key | ||
4 | .INCLUDE | 0 | 0 | RMS-FRM: Value Range of a Component | |||||
5 | COMPTGT | FRMLE_COMPTGT | EHSBD_QUAN6_6 | QUAN | 12 | 6 | Quantity of a Material or Substance Item | ||
6 | COMPTGT_ERR_FLG | FRMLE_ERR_FLG | FLAG | CHAR | 1 | 0 | Error When Converting Units | ||
7 | OPLOW | FRMLE_OPLOW | FRMLD_OPLOW | CHAR | 2 | 0 | Operator for Lower Limit | ||
8 | COMPLOW | FRMLE_COMPLOW | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Value of Lower Limit of Item Quantity | ||
9 | OPUP | FRMLE_OPUP | FRMLD_OPUP | CHAR | 2 | 0 | Operator for Upper Limit | ||
10 | COMPUPP | FRMLE_COMPUPP | FRMLD_QUAN6_6 | QUAN | 12 | 6 | Value of Upper Limit of Item Quantity | ||
11 | UNIT | FRMLE_COMPUNIT | MEINS | UNIT | 3 | 0 | Unit of Measure of a Material or Substance Item | * | |
12 | EXCVAL | FRMLE_EXCVAL | ESDCOMPEXCVAL | CHAR | 2 | 0 | Exception Value | TCG78 | |
13 | ADDVAL | FRMLE_ADDVAL | CHAR030 | CHAR | 30 | 0 | Freely Available Field of Type Character String w.30 Characs | ||
14 | COMPTGT_FLT | FRMLE_FLT | FLTP | FLTP | 16 | 16 | Floating-Point Value | ||
15 | COMPLOW_FLT | FRMLE_COMPLOW_FLT | FLTP | FLTP | 16 | 16 | Lower Limit Value of Item Quantity (Floating Point Value) | ||
16 | COMPUPP_FLT | FRMLE_COMPUPP_FLT | FLTP | FLTP | 16 | 16 | Upper Limit Value of Item Quantity (Floating Point Value) | ||
17 | OVR_FACTOR | FRMLE_OVR_FACTOR | FRMLD_OVR | NUMC | 3 | 0 | Overrun Factor |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | FRMLS_SUB_POS | EXCVAL | TCG78 | COMPEXCVAL |
History
Last changed by/on | SAP | 20130529 |
SAP Release Created in |
