SAP ABAP Table FRMLS_PVFRMID (RMS-FRM: Stream Data of PVS Item Variant)
Hierarchy
☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PLM-RM (Application Component) Recipe Management
     ⤷ RMSFRMIPP (Package) RMS-FRM: RMS Formula - iPPE Integration
Basic Data
Table Category INTTAB    Structure
Structure FRMLS_PVFRMID   Table Relationship Diagram
Short Description RMS-FRM: Stream Data of PVS Item Variant
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type		 Length Decimal
Places		 Short Description Check
table
1 DEF_EXPL_FLG FRMLE_DEFEXPL_FLG FRMLD_DEFEXPL_FLG CHAR 1   0   Standard Explosion
2 .INCLUDE       0   0   RMS-FRM: Stream with Value Range
3 STREAM_ID FRMLE_STREAM_GUID FRMLD_GUID CHAR 32   0   Unique Data Record Number (GUID) for Stream
4 .INCLUDE       0   0   RMS-FRM: Value Range of a Component
5 COMPTGT FRMLE_COMPTGT EHSBD_QUAN6_6 QUAN 12   6   Quantity of a Material or Substance Item
6 COMPTGT_ERR_FLG FRMLE_ERR_FLG FLAG CHAR 1   0   Error When Converting Units
7 OPLOW FRMLE_OPLOW FRMLD_OPLOW CHAR 2   0   Operator for Lower Limit
8 COMPLOW FRMLE_COMPLOW FRMLD_QUAN6_6 QUAN 12   6   Value of Lower Limit of Item Quantity
9 OPUP FRMLE_OPUP FRMLD_OPUP CHAR 2   0   Operator for Upper Limit
10 COMPUPP FRMLE_COMPUPP FRMLD_QUAN6_6 QUAN 12   6   Value of Upper Limit of Item Quantity
11 UNIT FRMLE_COMPUNIT MEINS UNIT 3   0   Unit of Measure of a Material or Substance Item *
12 EXCVAL FRMLE_EXCVAL ESDCOMPEXCVAL CHAR 2   0   Exception Value TCG78
13 ADDVAL FRMLE_ADDVAL CHAR030 CHAR 30   0   Freely Available Field of Type Character String w.30 Characs
14 COMPTGT_FLT FRMLE_FLT FLTP FLTP 16   16   Floating-Point Value
15 COMPLOW_FLT FRMLE_COMPLOW_FLT FLTP FLTP 16   16   Lower Limit Value of Item Quantity (Floating Point Value)
16 COMPUPP_FLT FRMLE_COMPUPP_FLT FLTP FLTP 16   16   Upper Limit Value of Item Quantity (Floating Point Value)
17 OVR_FACTOR FRMLE_OVR_FACTOR FRMLD_OVR NUMC 3   0   Overrun Factor
18 STREAM_DELFLG FRMLE_DEL_FLG XFELD CHAR 1   0   Deletion Indicator
19 STR_RECN FRMLE_RECN FRMLD_GUID CHAR 32   0   RMS-FRM: Object Identifier
20 PVTXCNT PVS_TXTCOUNT NUMC5 NUMC 5   0   Counter for Text Tables

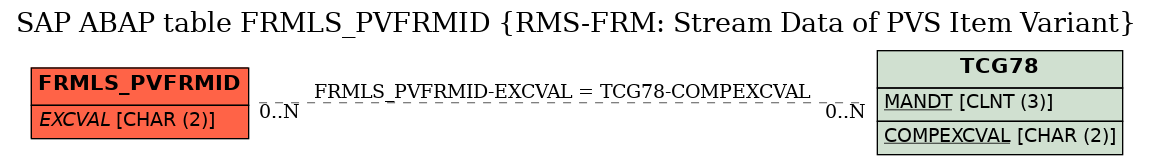

Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 FRMLS_PVFRMID EXCVAL TCG78 COMPEXCVAL
History
Last changed by/on SAP  20130529
SAP Release Created in 471
