SAP ABAP Table FMCOBJVD (Zuordnung Verdichtungsobjekte (Detailebene))

Hierarchy

☛ EA-PS (Software Component) SAP Enterprise Extension Public Services
   ⤷ PSM-FM-IS (Application Component) Information system
     ⤷ FMKO (Package) FM: Reporting for German Local Authorities

Basic Data

Table Category	TRANSP	Transparent table

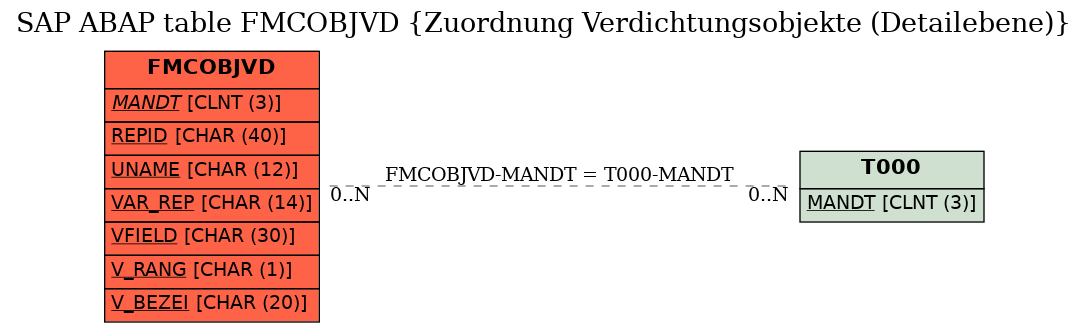

Transparent table	FMCOBJVD	Table Relationship Diagram
Short Description	Zuordnung Verdichtungsobjekte (Detailebene)

Delivery and Maintenance

Pool/cluster
Delivery Class	C	Customizing table, maintenance only by cust., not SAP import
Data Browser/Table View Maintenance	X	Display/Maintenance Allowed

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☑	MANDT	MANDT	CLNT	3	0	Client	T000
2	REPID	☑	FM_RPPROG	FM_RPPROG	CHAR	40	0	Main program	*
3	UNAME	☑	SYUNAME	SYCHAR12	CHAR	12	0	User Name
4	VAR_REP	☑	RALDB_VARI	RALDB_VARI	CHAR	14	0	Variant Name
5	VFIELD	☑	NAME_FELD	FDNAME	CHAR	30	0	Field name	*
6	V_RANG	☑	FM_V_RANG	FM_V_RANG	CHAR	1	0	Rang der Verdichtungsebene
7	V_BEZEI	☑	FM_BEZEICH	TEXT20	CHAR	20	0	Name
8	V_TEXT	☐	FM_BESCHR0	TEXT50	CHAR	50	0	Description
9	V_LINE1	☐	FM_CL60	CHAR60	CHAR	60	0	Berechnungszeile 60
10	V_LINE2	☐	FM_CL60	CHAR60	CHAR	60	0	Berechnungszeile 60
11	V_LINE3	☐	FM_CL60	CHAR60	CHAR	60	0	Berechnungszeile 60

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FMCOBJVD	MANDT	T000	MANDT

History

Last changed by/on	SAP	20130529
SAP Release Created in
