SAP ABAP Table FC03_S_UPL15LST (Listfields Flexible Upload: Breakdown Categories)

Hierarchy

☛ SAP_FIN (Software Component) SAP_FIN
   ⤷ EC-CS (Application Component) Consolidation
     ⤷ FC03_UC (Package) Cons: Entry, validation

Basic Data

Table Category	INTTAB	Structure

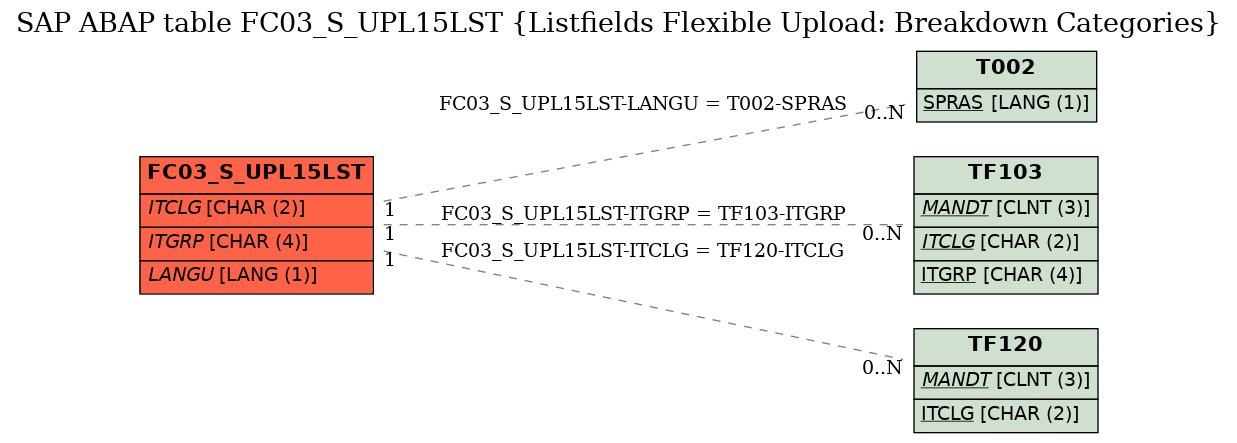

Structure	FC03_S_UPL15LST	Table Relationship Diagram
Short Description	Listfields Flexible Upload: Breakdown Categories

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SUMIND	☐	FC_SUMIND	RAW1	RAW	1	0	Summation index for list processor
2	.INCLUDE	☐				0	0	Flexible Upload: Breakdown Categories
3	.INCLUDE	☐				0	0	Field Catalog Flexible Upload: Breakdown Categories
4	ITCLG	☐	FC_ITCLG	FC_ITCLG	CHAR	2	0	Consolidation chart of accounts	TF120
5	ITGRP	☐	FC_ITGRP	FC_ITGRP	CHAR	4	0	Breakdown category	TF103
6	LANGU	☐	SPRAS	SPRAS	LANG	1	0	Language Key	T002
7	TXT	☐	FC_TXT	TEXT30	CHAR	30	0	Description
8	FIELDNAME	☐	FC_FIELDNAME_LST	TEXT30	CHAR	30	0	Field Name in Structures for List Output
9	BREAKDOWN	☐	FC_BRKDOWN	FC_BRKDOWN	NUMC	1	0	Breakdown type
10	VALUE	☐	FC_INDEPVA	CHAR10	CHAR	10	0	Fixed value for a subitem category-like characteristic
11	SETNAME	☐	FC_SETNAME	FC_SETNAME	CHAR	21	0	SAP Consolidation set Name
12	SETNAME_MAX	☐	FC_SETNAME_MAX	FC_SETNAME	CHAR	21	0	Maximum Value
13	DUMMY	☐	FC_DUMMY	FC_DUMMY	CHAR	36	0	User-defined field for use in upload methods
14	SETID	☐	FC_SETID	SETID	CHAR	34	0	Identification of a set
15	SETID_MAX	☐	FC_SETID_MAX	SETID	CHAR	34	0	Maximum Value
16	.INCLUDE	☐				0	0	Additional Information for a Data Row
17	LINECOUNT	☐	FC_LINECOUNT	FC_NUMC6	NUMC	6	0	Row number
18	LINETYPE	☐	FC_LINETYPE	FC_LINETYPE	CHAR	1	0	Row type
19	LINECOUNT_HEAD	☐	FC_LINECOUNT	FC_NUMC6	NUMC	6	0	Row number
20	PROT_ERR	☐	FC_PROTUPL	FC_PROTUPL	CHAR	1	0	Upload log
21	TXT_FIELDNAME	☐	SCRTEXT_L	SCRTEXT_L	CHAR	40	0	Long Field Label
22	.INCLUDE	☐				0	0	Additional Information for a Data Row in the List Output
23	PROTUPL_MAIN	☐	FC_PROTUPL	FC_PROTUPL	CHAR	1	0	Upload log
24	PROTUPL	☐	FC_PROTUPL	FC_PROTUPL	CHAR	1	0	Upload log
25	LINETYPE_LST	☐	FC_LINETYPE_LST	FC_LINETYPE_LST	CHAR	1	0	Row Type (for list output)
26	STATOBJ	☐	FC_STATOBJ	FC_STATOBJ	CHAR	1	0	Object status in regards to preceding database operation
27	MSGTY_STAT	☐	FC_MSGTY_STAT	FC_MSGTY_STAT	CHAR	1	0	Message type for log statistics
28	COUNTER	☐	FC_COUNTER	SYST_LONG	INT4	10	0	Count of entries in the list
29	TXT_COUNTER	☐	FC_TXT_COUNTER		CHAR	10	0	Count of Entries in the List
30	MSGID	☐	FC_MSGID	INT3	NUMC	3	0	Message index for the list processor
31	MSGPROT	☐	FC_PROTUPL	FC_PROTUPL	CHAR	1	0	Upload log

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	FC03_S_UPL15LST	ITCLG	TF120	ITCLG	KEY	1	CN
2	FC03_S_UPL15LST	ITGRP	TF103	ITGRP	KEY	1	CN
3	FC03_S_UPL15LST	LANGU	T002	SPRAS	KEY	1	CN

History

Last changed by/on	SAP	20130529
SAP Release Created in
