SAP ABAP Table EDEX_AGGR_MON (Monitoring of Aggregated Messages)
Hierarchy
☛
IS-UT (Software Component) SAP Utilities/Telecommunication
⤷ IS-U-EDM (Application Component) Energy Data Management
⤷ EE_DATEX (Package) Data Exchange at Point of Delivery Level
⤷ IS-U-EDM (Application Component) Energy Data Management
⤷ EE_DATEX (Package) Data Exchange at Point of Delivery Level
Basic Data
Table Category | INTTAB | Structure |
Structure | EDEX_AGGR_MON | Table Relationship Diagram |
Short Description | Monitoring of Aggregated Messages |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | ||
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | DOCNUM | EDI_DOCNUM | EDI_DOCNUM | NUMC | 16 | 0 | IDoc number | EDIDC | |
2 | ICON_DEXTASK | E_DEXICONTASKDISP | CHAR | 30 | 0 | Icon for 'Data Exchange Task Display' in ALV | |||
3 | ICON_WB | E_DEXICONWBDISP | CHAR | 30 | 0 | Icon for 'Switch Document Display' in ALV | |||
4 | DEXDUEDATE | E_DEXDUEDATE | DATS | 8 | 0 | Due Date for Data Exchange Task | |||
5 | DEXPROC | E_DEXPROC | E_DEXPROC | CHAR | 10 | 0 | Data Exchange Process | EDEXPROC | |
6 | DEXPROCTXT | E_DEXPROCTXT | TEXT60 | CHAR | 60 | 0 | Text for Data Exchange Process | ||
7 | DEXSERVPROV | E_DEXSERVPROV | SERVICE_PROV | CHAR | 10 | 0 | Third Party Service Provider | ESERVPROV | |
8 | DEXSERVPROVTXT | SERVICE_PROV_TEXT | TEXT40 | CHAR | 40 | 0 | Name of service provider | ||
9 | DEXSERVPROVSELF | E_DEXSERVPROVSELF | SERVICE_PROV | CHAR | 10 | 0 | Own Service Provider | ESERVPROV | |
10 | DEXSERVPROVSELFTXT | SERVICE_PROV_TEXT | TEXT40 | CHAR | 40 | 0 | Name of service provider | ||
11 | NUM_MSG | E_DEXNUMMSG | INT4 | 10 | 0 | Number of Messages in Aggregated IDoc | |||
12 | NUM_SUCCESS_MSG | E_DEXNUMMSG_SUCCESS | INT4 | 10 | 0 | Number of Successfully Processed DE Tasks in Aggregated IDoc | |||
13 | NUM_ERROR_MSG | E_DEXNUMMSG_ERROR | INT4 | 10 | 0 | Number of Incorrect Processed DE Tasks in Aggregated IDoc | |||
14 | NUM_CORR_MSG | E_DEXNUMMSG_ERRORCORR | INT4 | 10 | 0 | Number of Corrected Data Exchange Tasks in Aggregated IDoc | |||
15 | NUM_WAIT_MSG | E_DEXNUMMSG_WAIT | INT4 | 10 | 0 | Number of DE Tasks in Process for Aggregated IDoc | |||
16 | NUM_SUCCESS_WB | E_DEXNUMWB_SUCCESS | INT4 | 10 | 0 | Number of Successfully Processed Switch Docs in Aggr. IDoc | |||
17 | NUM_ERROR_WB | E_DEXNUMWB_ERROR | INT4 | 10 | 0 | Number of Incorrect Processed Switch Docs in Aggregated IDoc | |||
18 | NUM_WAIT_WB | E_DEXNUMWB_WAIT | INT4 | 10 | 0 | Number of Switch Docs in Process in Aggregated IDoc | |||
19 | .INCLUDE | 0 | 0 |

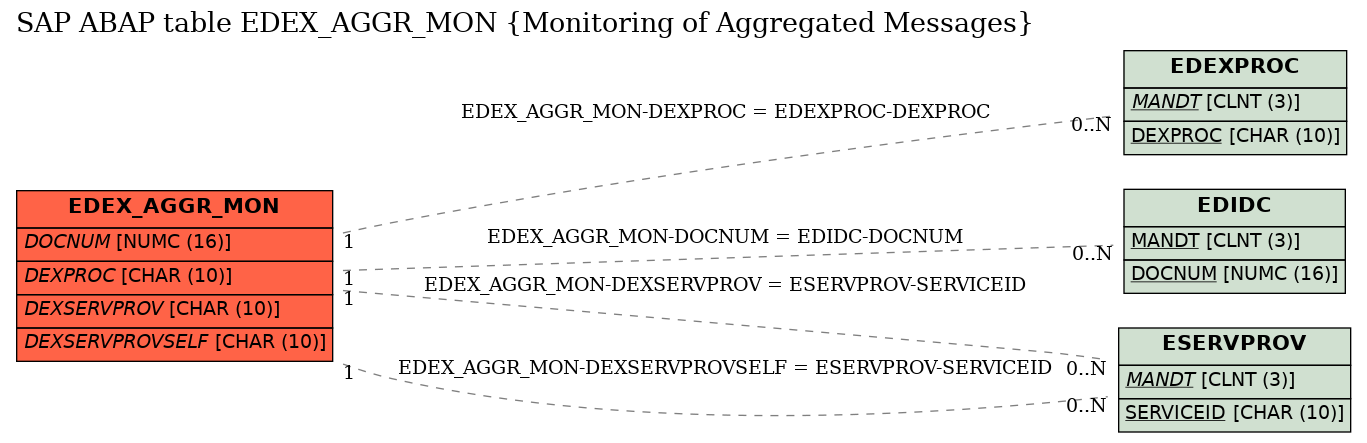

Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | EDEX_AGGR_MON | DEXPROC | EDEXPROC | DEXPROC | KEY | 1 | CN |
2 | EDEX_AGGR_MON | DEXSERVPROV | ESERVPROV | SERVICEID | KEY | 1 | CN |
3 | EDEX_AGGR_MON | DEXSERVPROVSELF | ESERVPROV | SERVICEID | KEY | 1 | CN |
4 | EDEX_AGGR_MON | DOCNUM | EDIDC | DOCNUM | KEY | 1 | CN |
History
Last changed by/on | SAP | 20050224 |
SAP Release Created in | 600 |
