SAP ABAP Table EDEVICED_CUST_EXIT (Scrn Fields Devices Subscrn)

Hierarchy

☛ IS-UT (Software Component) SAP Utilities/Telecommunication
   ⤷ IS-U-DM (Application Component) Device Management
     ⤷ EE10 (Package) IS-U: Device Management

Basic Data

Table Category	INTTAB	Structure

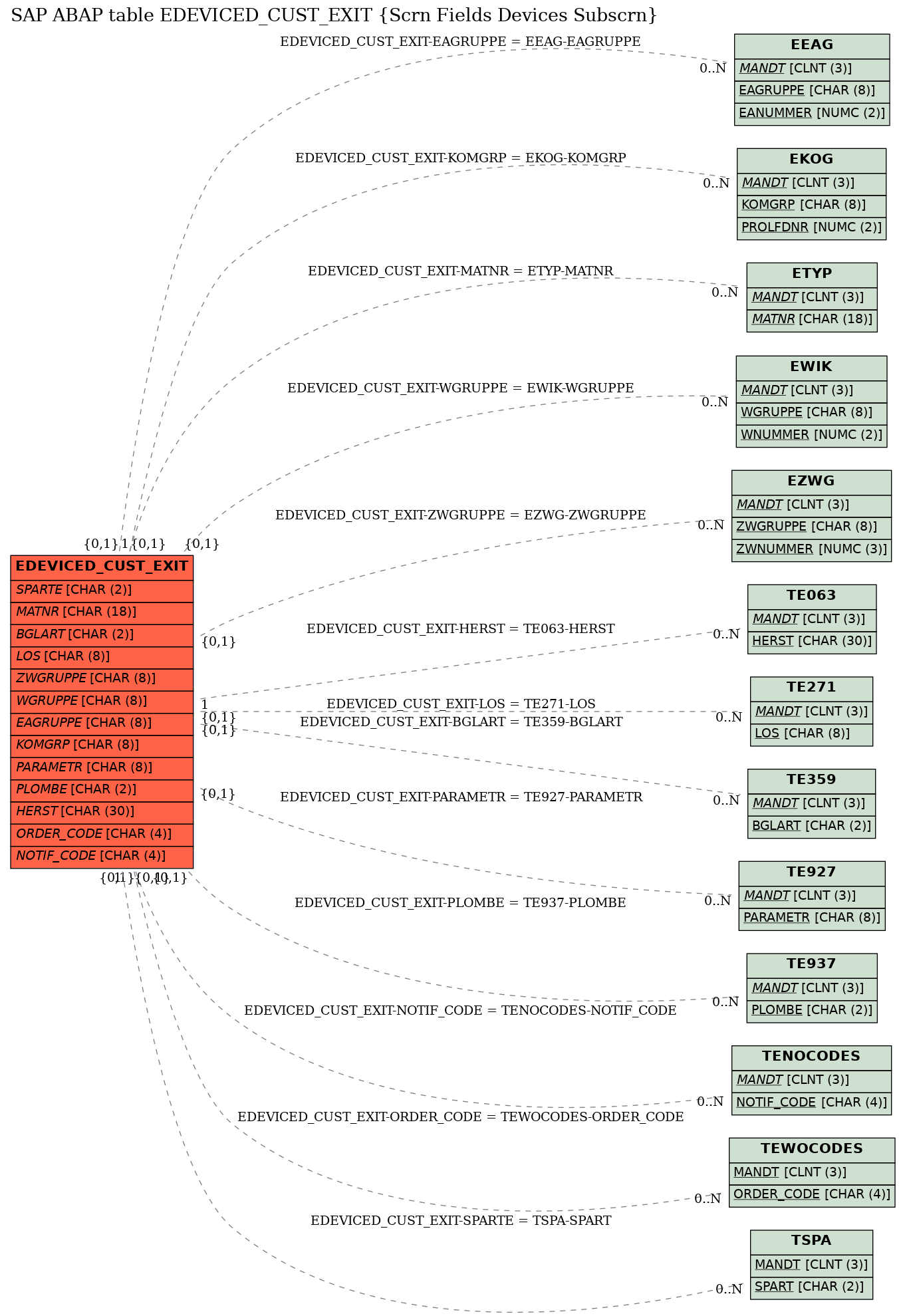

Structure	EDEVICED_CUST_EXIT	Table Relationship Diagram
Short Description	Scrn Fields Devices Subscrn

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	*
2	AB	☐	ABZEITSCH	DATUM	DATS	8	0	Date from which time slice is valid
3	SPARTE	☐	SPARTE	SPART	CHAR	2	0	Division	TSPA
4	MATNR	☐	GERTYP	MATNR	CHAR	18	0	Device category	ETYP
5	BGLJAHR	☐	BGLJAHR	JAHR	NUMC	4	0	Certification Year
6	BGLNUM	☐	BGLNUM	CHAR15	CHAR	15	0	Certification number
7	BGLSTAT	☐	BGLSTAT	BGLSTAT	CHAR	1	0	Certification status
8	BGLART	☐	BGLART	BGLART	CHAR	2	0	Type of certification	TE359
9	BGLBIS	☐	BGLBIS	JAHR	NUMC	4	0	Next replacement year
10	BGLTXT	☐	TEXT30	TEXT30	CHAR	30	0	Text (30 Characters)
11	LOS	☐	LOS	GEGST	CHAR	8	0	Sample lot	TE271
12	KZSTICH	☐	KZSTICH	KZSTICH	CHAR	1	0	Status of sample device
13	ZWGRUPPE	☐	E_ZWGRUPPE	GEGST	CHAR	8	0	Register Group	EZWG
14	WGRUPPE	☐	WGRUPPE	GEGST	CHAR	8	0	Winding group	EWIK
15	EAGRUPPE	☐	EAGRUPPE	GEGST	CHAR	8	0	Input/output group	EEAG
16	KOMGRP	☐	KOMGRP	GEGST	CHAR	8	0	ARCR Command Group	EKOG
17	BESITZ	☐	BESITZ	BESITZ	NUMC	2	0	Inspection relevance of device	*
18	PARAMETR	☐	PARAMETR	PARAMETR	CHAR	8	0	Parametrization	TE927
19	PLOMBDAT	☐	PLOMBDAT	DATUM	DATS	8	0	Date of last lead sealing
20	PLOMBE	☐	PLOMBE	PLOMBE	CHAR	2	0	Seal code	TE937
21	MESSDRCK	☐	MESSDRCK	MESSDRCK	DEC	7	4	Measured Pressure (Outlet Pressure) in Bars	*
22	SCHWGRAD	☐	SCHWGRAD	DEC2_1	DEC	3	1	Difficulty level: Factor for meter reader payment
23	BAUJJ	☐	BAUJJ	CJAHR	CHAR	4	0	Year of construction
24	HERST	☐	HERST	TEXT30	CHAR	30	0	Manufacturer of asset	TE063
25	TYPBZ	☐	TYPBZ	TYPBZ	CHAR	20	0	Manufacturer model number
26	VLZEIT_DEV	☐	VLZEIT_DEV	ALLGVLZEIT	DEC	2	0	Individual cal. validity (years) of dev. subject to certif.
27	BGLNETZ	☐	BGLNETZ	KENNZX	CHAR	1	0	Certify installed devices
28	ORDER_CODE	☐	ORDERCODE2	CHAR004	CHAR	4	0	Special Order Code for Dev./Dev. Category in Replacement	TEWOCODES
29	NOTIF_CODE	☐	NOTIF_CODE	CHAR004	CHAR	4	0	Notification code	TENOCODES

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EDEVICED_CUST_EXIT	BGLART	TE359	BGLART	KEY	C	CN
2	EDEVICED_CUST_EXIT	EAGRUPPE	EEAG	EAGRUPPE	KEY	C	CN
3	EDEVICED_CUST_EXIT	HERST	TE063	HERST	KEY	1	CN
4	EDEVICED_CUST_EXIT	KOMGRP	EKOG	KOMGRP	KEY	C	CN
5	EDEVICED_CUST_EXIT	LOS	TE271	LOS	KEY	C	CN
6	EDEVICED_CUST_EXIT	MATNR	ETYP	MATNR	KEY	1	CN
7	EDEVICED_CUST_EXIT	NOTIF_CODE	TENOCODES	NOTIF_CODE	KEY	C	CN
8	EDEVICED_CUST_EXIT	ORDER_CODE	TEWOCODES	ORDER_CODE	KEY	C	CN
9	EDEVICED_CUST_EXIT	PARAMETR	TE927	PARAMETR	KEY	C	CN
10	EDEVICED_CUST_EXIT	PLOMBE	TE937	PLOMBE	KEY	C	CN
11	EDEVICED_CUST_EXIT	SPARTE	TSPA	SPART		1	CN
12	EDEVICED_CUST_EXIT	WGRUPPE	EWIK	WGRUPPE	KEY	C	CN
13	EDEVICED_CUST_EXIT	ZWGRUPPE	EZWG	ZWGRUPPE		C	CN

History

Last changed by/on	SAP	20050224
SAP Release Created in
