SAP ABAP Table EAMS_S_BO_WCM_WCI_HEADER (Business Object Work Clearance Document Item - Header)

Hierarchy

☛ EA-APPL (Software Component) SAP Enterprise Extension PLM, SCM, Financials
   ⤷ PM (Application Component) Plant Maintenance
     ⤷ EAMS_BO_MISC (Package) Miscellaneous for Business Object

Basic Data

Table Category	INTTAB	Structure

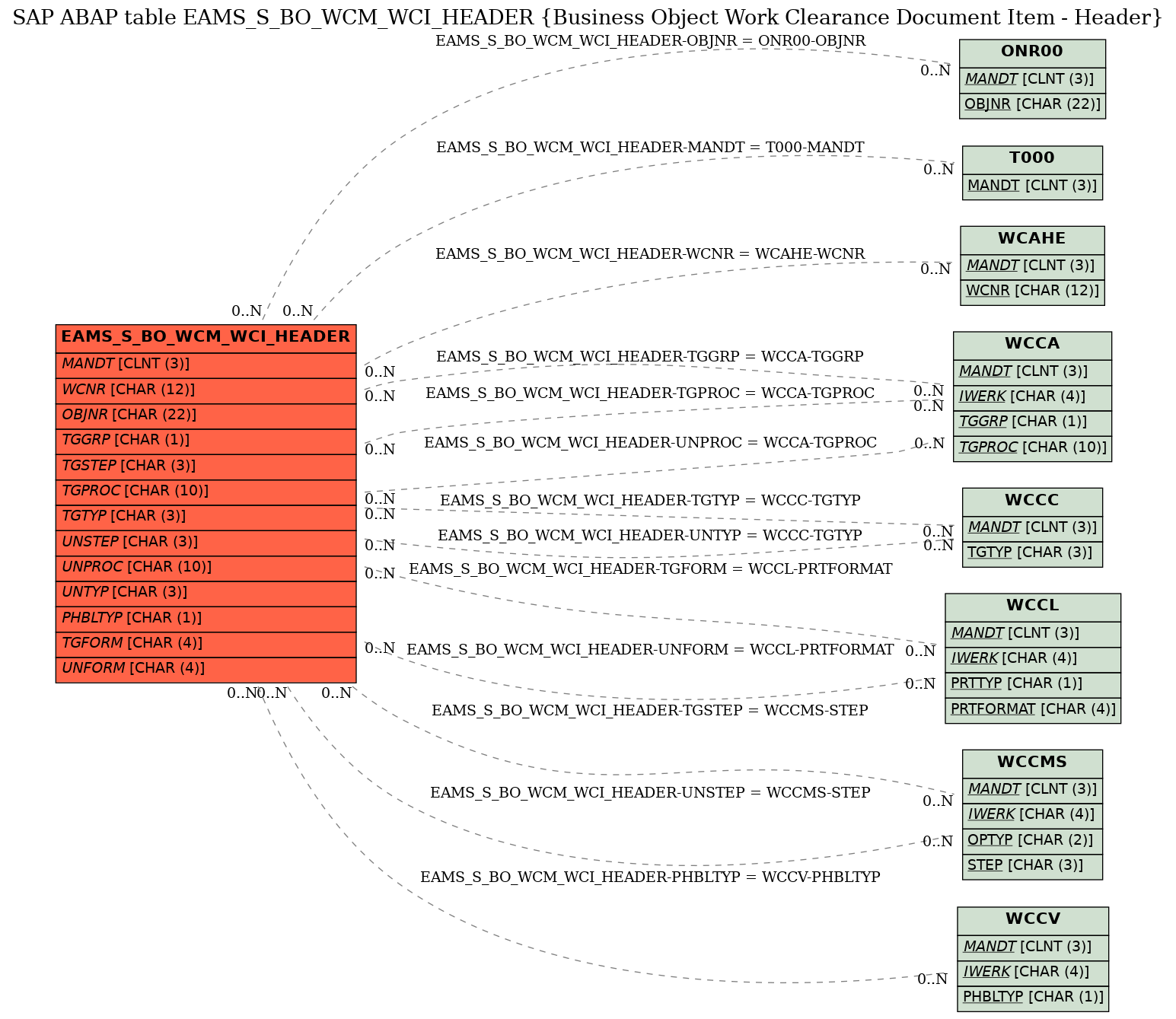

Structure	EAMS_S_BO_WCM_WCI_HEADER	Table Relationship Diagram
Short Description	Business Object Work Clearance Document Item - Header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	EAMS ID structure for Work Clearance Document Item
2	EAMS_WCNR	☐	WCEWCNR	WCDNO	CHAR	12	0	Work Clearance Document
3	EAMS_WCITM	☐	WCEITM	WCDITM	NUMC	6	0	Item
4	.INCLUDE	☐				0	0	WCM: Work Clearance Document (Item)
5	MANDT	☐	MANDT	MANDT	CLNT	3	0	Client	T000
6	WCNR	☐	WCEWCNR	WCDNO	CHAR	12	0	Work Clearance Document	WCAHE
7	WCITM	☐	WCEITM	WCDITM	NUMC	6	0	Item
8	OBJNR	☐	J_OBJNR	J_OBJNR	CHAR	22	0	Object number	ONR00
9	ITMTYP	☐	WCEITMTYP	WCDITMTYP	CHAR	1	0	Item Category
10	SEQ	☐	WCEITMSEQ	NUM6	NUMC	6	0	Item
11	PRED	☐	WCEPREDITM	WCDITM	NUMC	6	0	Predecessor
12	SUCC	☐	WCESUCCITM	WCDITM	NUMC	6	0	Successor
13	CCOBJ	☐	WCECCOBJ	WCDCCOBJ	CHAR	40	0	Technical Object
14	CCTYP	☐	WCECCTYP	WCDCCTYP	CHAR	1	0	Item Category
15	STXT	☐	WCESTXT	TEXT40	CHAR	40	0	Descriptive Short Text
16	TGGRP	☐	WCETGGRP	CHAR1	CHAR	1	0	Operational Group	WCCA
17	TGSTEP	☐	WCETGSTEP	WCDSTEP	CHAR	3	0	Operational Step for Tagging	WCCMS
18	TGPROC	☐	WCETGPROC	WCDPROC	CHAR	10	0	Tagging Condition	WCCA
19	TGTYP	☐	WCETGTYP	CHAR3	CHAR	3	0	Tagging Type	WCCC
20	TGSEQ	☐	WCETGSEQ	WCDSEQ	NUMC	5	0	Sequence for Tagging
21	TGTXT	☐	WCETGCOMMENT	TEXT40	CHAR	40	0	Comment Line for Tagging
22	UNSTEP	☐	WCEUNSTEP	WCDSTEP	CHAR	3	0	Operational Step for Untagging	WCCMS
23	UNPROC	☐	WCEUNPROC	WCDPROC	CHAR	10	0	Untagging Condition	WCCA
24	UNTYP	☐	WCEUNTYP	CHAR3	CHAR	3	0	Untagging Type	WCCC
25	UNSEQ	☐	WCEUNSEQ	WCDSEQ	NUMC	5	0	Sequence for Untagging
26	UNTXT	☐	WCEUNCOMMENT	TEXT40	CHAR	40	0	Comment Line for Untagging
27	PHBLFLG	☐	WCEPHBLFLG	WCDFLG	CHAR	1	0	Physical Blocking Required
28	PHBLTYP	☐	WCEPHBLTYP	CHAR1	CHAR	1	0	Physical Blocking Type	WCCV
29	PHBLNR	☐	WCEPHBLNR	WCDPHBLNR	CHAR	5	0	Lock
30	TGFLG	☐	WCETAGFLG	WCDFLG	CHAR	1	0	Tag Required
31	TGFORM	☐	WCETGFORM	WCDPRTFORM	CHAR	4	0	Print Format for Tag	WCCL
32	TGNR	☐	WCETGNR	WCDNO	CHAR	12	0	Tag
33	UNFORM	☐	WCEUNFORM	WCDPRTFORM	CHAR	4	0	Print Format for Test Tag	WCCL
34	UNNR	☐	WCEUNNR	WCDNO	CHAR	12	0	Test Tag
35	CONTROL	☐	WCECTRL	TEXT40	CHAR	40	0	Switching Location
36	LOCATION	☐	WCELOC	TEXT40	CHAR	40	0	Location
37	LFLG	☐	WCELTXTFLG	WCDFLG	CHAR	1	0	Long Text Exists
38	DOCFLG	☐	WCEDOCFLG	WCDFLG	CHAR	1	0	Linked to Document
39	REFOBJ	☐	WCEREFOBJ	J_OBJNR	CHAR	22	0	Template (Object Number)	*
40	.INCLUDE	☐				0	0
41	.INCLUDE	☐				0	0	EAMS. Additional Data for WC Document
42	BLOCKING_TYPE_TXT	☐	WCEPHBLTYPX	TEXT40	CHAR	40	0	Text for Physical Blocking Type
43	WCMTYPE_TXT	☐	EAMS_WCMTYPE_TXT	CHAR15	CHAR	15	0	Work Clearance Management Type

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	EAMS_S_BO_WCM_WCI_HEADER	MANDT	T000	MANDT
2	EAMS_S_BO_WCM_WCI_HEADER	OBJNR	ONR00	OBJNR
3	EAMS_S_BO_WCM_WCI_HEADER	PHBLTYP	WCCV	PHBLTYP
4	EAMS_S_BO_WCM_WCI_HEADER	TGFORM	WCCL	PRTFORMAT
5	EAMS_S_BO_WCM_WCI_HEADER	TGGRP	WCCA	TGGRP
6	EAMS_S_BO_WCM_WCI_HEADER	TGPROC	WCCA	TGPROC
7	EAMS_S_BO_WCM_WCI_HEADER	TGSTEP	WCCMS	STEP
8	EAMS_S_BO_WCM_WCI_HEADER	TGTYP	WCCC	TGTYP
9	EAMS_S_BO_WCM_WCI_HEADER	UNFORM	WCCL	PRTFORMAT
10	EAMS_S_BO_WCM_WCI_HEADER	UNPROC	WCCA	TGPROC
11	EAMS_S_BO_WCM_WCI_HEADER	UNSTEP	WCCMS	STEP
12	EAMS_S_BO_WCM_WCI_HEADER	UNTYP	WCCC	TGTYP
13	EAMS_S_BO_WCM_WCI_HEADER	WCNR	WCAHE	WCNR

History

Last changed by/on	SAP	20130529
SAP Release Created in	606
