SAP ABAP Table DRF_S_FILTERPARAMETERS (FilterParameters)

Hierarchy

☛ SAP_BS_FND (Software Component) SAP Business Suite Foundation
   ⤷ CA-MDG-DRF (Application Component) Data Replication Framework
     ⤷ DRF_DDIC (Package) Data Replication Framework: Data Dictionary & Customizing

Basic Data

Table Category	INTTAB	Structure

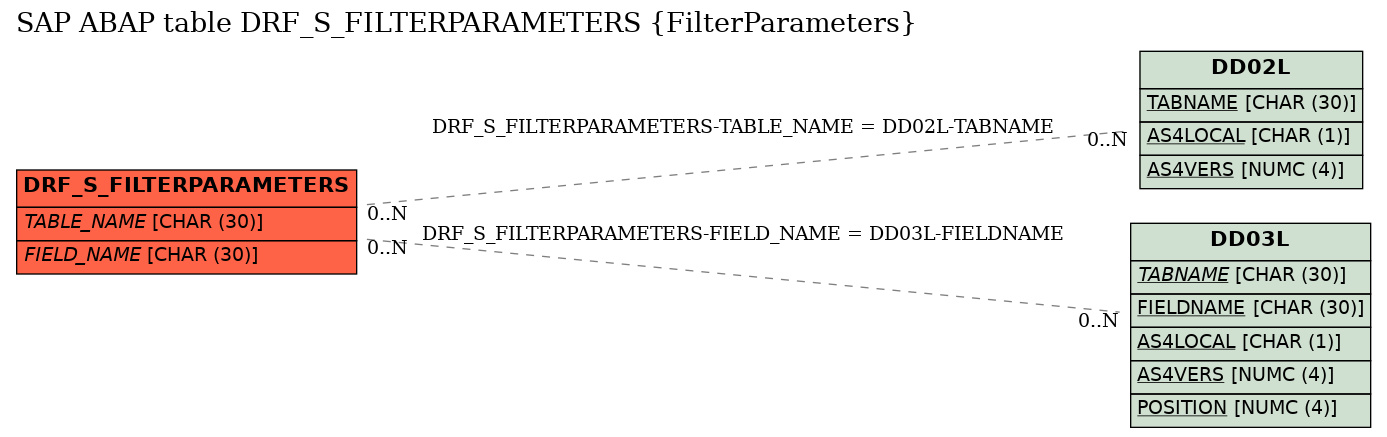

Structure	DRF_S_FILTERPARAMETERS	Table Relationship Diagram
Short Description	FilterParameters

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Include Structure for Key Information
2	KEY	☐	/BOBF/CONF_KEY	/BOBF/CONF_KEY	RAW	16	0	NodeID
3	PARENT_KEY	☐	/BOBF/CONF_KEY	/BOBF/CONF_KEY	RAW	16	0	NodeID
4	ROOT_KEY	☐	/BOBF/CONF_KEY	/BOBF/CONF_KEY	RAW	16	0	NodeID
5	.INCLUDE	☐				0	0	Filter Parameters
6	FILTER_ID	☐	DRF_FILTER	DRF_FILTER	NUMC	2	0	Filter for a Filter Object	*
7	TABLE_NAME	☐	TABNAME	AS4TAB	CHAR	30	0	Table Name	DD02L
8	FIELD_NAME	☐	FIELDNAME	FDNAME	CHAR	30	0	Field Name	DD03L
9	SIGN	☐	TVARV_SIGN	SYCHAR01	CHAR	1	0	ABAP: ID: I/E (include/exclude values)
10	OPT	☐	TVARV_OPTI	SYCHAR02	CHAR	2	0	ABAP: Selection option (EQ/BT/CP/...)
11	LOW	☐	RSDSSELOP_	RSDSSELOPT	CHAR	45	0	'Generic' SELECT-OPTION for Dynamic Selections
12	HIGH	☐	RSDSSELOP_	RSDSSELOPT	CHAR	45	0	'Generic' SELECT-OPTION for Dynamic Selections
13	.INCLUDE	☐				0	0	Adminitrativ data of th data Replication Framework (Filter)
14	CREATION_DATE	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
15	CREATED_BY	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*
16	CHANGE_DATE	☐	TIMESTAMP	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
17	CHANGED_BY	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DRF_S_FILTERPARAMETERS	FIELD_NAME	DD03L	FIELDNAME
2	DRF_S_FILTERPARAMETERS	TABLE_NAME	DD02L	TABNAME

History

Last changed by/on	SAP	20130604
SAP Release Created in	702
