SAP ABAP Table DBASLDSYS (DB6: System Registration Table)

Hierarchy

☛ SAP_BASIS (Software Component) SAP Basis Component
   ⤷ BC-DB (Application Component) Database Interface, Database Platforms
     ⤷ SDBA_RUNTIME (Package) DBA Cockpit: Runtime

Basic Data

Table Category	INTTAB	Structure

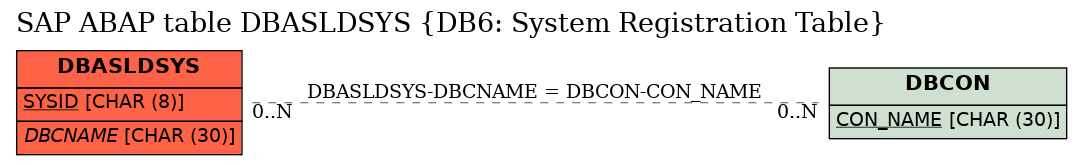

Structure	DBASLDSYS	Table Relationship Diagram
Short Description	DB6: System Registration Table

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	SYSID	☑	SYSYSID	SYCHAR08	CHAR	8	0	Name of SAP System
2	DBHOST	☐	DBA_SERVER	DBA_SERVER	CHAR	255	0	DBA Cockpit: Server Name
3	SCHEMANAME	☐	DB6SCHEMA		CHAR	20	0	DB6: Schema Name
4	DBCNAME	☐	DBCON_NAME	DBCON_NAME	CHAR	30	0	Logical name for a database connection	DBCON
5	DBSYS	☐	DBCON_DBMS	DBCON_DBMS	CHAR	3	0	Database system
6	REALSID	☐	SYSYSID	SYCHAR08	CHAR	8	0	Name of SAP System
7	DBSID	☐	DBA_DBNAME	DBA_DBNAME	CHAR	128	0	DBA Cockpit: Database Name
8	DESCRIPTION	☐			CHAR	80	0
9	SYSTEMTYPE	☐	SDB_ITYPE	SDB_ITYPE	CHAR	7	0	SAP DB: Instance Type
10	SLD_NAME	☐			CHAR	255	0
11	DB6_SERVICE_NAME	☐			CHAR	14	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	DBASLDSYS	DBCNAME	DBCON	CON_NAME

History

Last changed by/on	SAP	20141013
SAP Release Created in	710
