SAP ABAP Table CRMT_UBB_NOTIF_H_EXT (Notification: Structure of External Fields)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-VOL (Application Component) Usage Volumes
     ⤷ CRM_UBB_VOLUME (Package) UBB Volume Document

Basic Data

Table Category	INTTAB	Structure

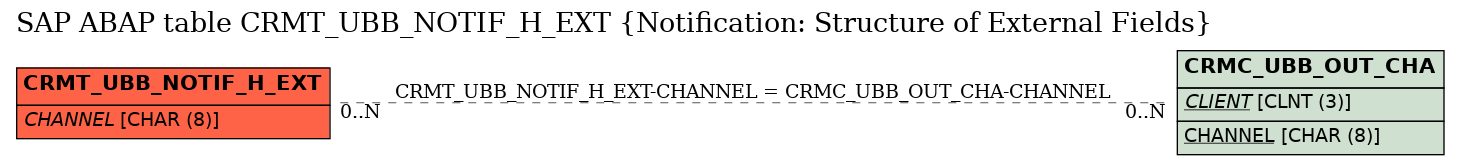

Structure	CRMT_UBB_NOTIF_H_EXT	Table Relationship Diagram
Short Description	Notification: Structure of External Fields

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	HEADER	☐	CRMT_ITEM_GUID	SYSUUID	RAW	16	0	Item GUID for a CRM Document
2	ITEM	☐	CRMT_ITEM_GUID	SYSUUID	RAW	16	0	Item GUID for a CRM Document
3	PARTNER_GUID	☐	CRMT_PARTNER_GUID	SYSUUID	RAW	16	0	GUID for an Individual Partner
4	REF_PARTNER_NO	☐	CRMT_PARTNER_NUMBER	CRM_PARTNER_NUMBER	CHAR	20	0	Partner Number for Use Outside Partner Processing
5	.INCLUDE	☐				0	0	Address Data of a Partner
6	ADDR_NR	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
7	ADDR_NP	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
8	ADDR_TYPE	☐	AD_ADRTYPE	AD_ADRTYPE	CHAR	1	0	Address type (1=Organization, 2=Person, 3=Contact person)
9	ADDR_ORIGIN	☐	CRMT_ADDR_ORIGIN_MD	CRM_ADDR_ORIGIN_MD	CHAR	1	0	Origin of a Partner Address
10	STD_BP_ADDRESS	☐	CRMT_PARTNER_STD_BP_ADDRESS	XFELD	CHAR	1	0	Standard Business Partner Address (Depending on Addr.Type)
11	ADDR_OPERATION	☐	BU_OPERATION	BU_OPERATION	CHAR	6	0	Transaction for BP Address Determination	*
12	ADDR_NR_SEND	☐	AD_ADDRNUM	AD_ADDRNUM	CHAR	10	0	Address number	*
13	ADDR_NP_SEND	☐	AD_PERSNUM	AD_PERSNUM	CHAR	10	0	Person number	*
14	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
15	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
16	PARTNER_PROD	☐	CRMT_ITEM_DESCR_PARTNER	PRSHTEXT40	CHAR	40	0	Product Number of Business Partner
17	DATE_FROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
18	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
19	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
20	IBIB_GUID	☐	SMO_GUID	SMO_GUID	CHAR	32	0	Global Unique Identifier
21	IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
22	IB_COMP_REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
23	IB_INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
24	IOBJECT_ID	☐	COMT_PRODUCT_OBJECT_ID	COM_PRODUCT_ID	CHAR	40	0	Object ID
25	IOBJECT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
26	SETTL_FROM	☐	CRMT_SETTL_FROM	BCOS_TSTMP	DEC	15	0	Start of Settlement for Period
27	SETTL_TO	☐	CRMT_SETTL_TO	BCOS_TSTMP	DEC	15	0	End of Settlement for Period
28	CHANNEL	☐	CRMT_UBB_CHANNEL	CRM_UBB_CHANNEL	CHAR	8	0	Reading Reminder Output Channel	CRMC_UBB_OUT_CHA
29	OUT_MEDIA	☐	CRMT_UBB_OUT_MEDIA	CRM_UBB_OUT_MEDIA	CHAR	8	0	Reading Reminder Messaging Medium
30	PARTNER_FCT	☐	COMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
31	FORMNAME	☐	TDSFNAME	TDSFNAME	CHAR	30	0	Smart Forms: Form Name	*
32	PROCESSED	☐	CRMT_UBB_RR_PROCESSED	CRMT_UBB_RR_PROCESSED	CHAR	1	0	Reading Reminder Created
33	PRO_ERROR	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
34	SEQUENCE	☐	CRMT_UBB_SEQUENCE	CRM_UBB_SEQUENCE	CHAR	4	0	Message Sequence for Reading Reminder	*
35	SEQ_ORDER	☐	CRMT_UBB_SEQ_ORDER	CRM_UBB_SEQ_ORDER	NUMC	3	0	Sequence for Reading Reminder
36	CONTRACT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
37	CONTRACT_ITEM	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
38	POOL_CONTRACT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
39	POOL_CONTRACT_IT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_UBB_NOTIF_H_EXT	CHANNEL	CRMC_UBB_OUT_CHA	CHANNEL

History

Last changed by/on	SAP	20110908
SAP Release Created in	320
