SAP ABAP Table CRMT_SRV_REFOBJ_WRK (CRM Service: Structure Workarea and Buffer)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-CAT (Application Component) Categorization and Reference Object in Transactions
     ⤷ CRM_SERVICE_REFOBJ (Package) CRM: Service Reference Object-Subject

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_SRV_REFOBJ_WRK	Table Relationship Diagram
Short Description	CRM Service: Structure Workarea and Buffer

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Reference Object
2	.INCLUDE	☐				0	0	One Order: Key Fields
3	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	.INCLUDE	☐				0	0	CRM Service: Structure Reference Object Internal Fields
6	GUID_REF	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_OSSET
7	.INCLUDE	☐				0	0	CRM Service :Structure Reference Object External Fields
8	TYPE_OBJECT	☐	CRMT_TYPE_OBJECT	TYPE_OBJECT	CHAR	1	0	Object Type for Reference Object in Subject Set
9	GUID_OBJECT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
11	IB_COMP_REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
12	IB_COMP_VALID	☐	TZNTSTMPS	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
13	IB_TZONE	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
14	MAIN_OBJECT	☐	CRMT_SRV_MAIN_OBJECT	BOOLEAN	CHAR	1	0	Main Reference Object
15	PART_CAUS_FAIL	☐	CRMT_SRV_PART_CAUSING_FAILURE	BOOLEAN	CHAR	1	0	Part Causing Defect
16	INST_DISM_INFO	☐	CRMT_INSTALL_DISMANTLE_INFO	CRMT_INSTALL_DISMANTLE_INFO	CHAR	1	0	Installation Information/Dismantling Information
17	PRODUCT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
18	SERIAL_NUMBER	☐	CRMT_SERIAL_NUMBER	CHAR40	CHAR	40	0	Product Serial Number
19	EXT_REFOBJ	☐	CRMT_EXT_REFOBJ	CHAR40	CHAR	40	0	External Reference Object
20	.INCLUDE	☐				0	0	CRM Service: Structure Reference Object Dynamic Fields
21	TEXT_OBJECT	☐	CRMT_TEXT_OBJECT	SM_CHAR40	CHAR	40	0	Reference Object Text
22	SELECT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
23	IB_IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
24	IB_INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
25	TEXT_IB_COMP	☐	IB_INST_DESCR	TEXT40	CHAR	40	0	IB: Component Description
26	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
27	.INCLUDE	☐				0	0	CRM Service: Structure Areas External Fields
28	ALTID_TYPE	☐	COMT_ALTID_TYPE	CHAR16	CHAR	16	0	ID Type for Alternative IDs
29	ID_FROM	☐	CRMT_ID_FROM_VALUE	CHAR255	CHAR	255	0	Object ID 'FROM' Value for Area Specification
30	ID_TO	☐	CRMT_ID_TO_VALUE	CHAR255	CHAR	255	0	Object ID 'TO' Value for Area Specification
31	GUID_RANGE	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object

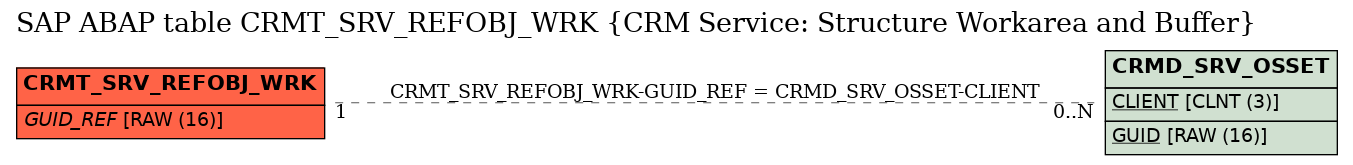

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SRV_REFOBJ_WRK	GUID_REF	CRMD_SRV_OSSET	CLIENT	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in
