SAP ABAP Table CRMT_SERVICE_OS_WRK (CRM Subject Reference Object Set)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_SERVICE_OS_WRK	Table Relationship Diagram
Short Description	CRM Subject Reference Object Set

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Service: Structure Subject External Fields
2	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
3	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
4	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
5	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
6	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
7	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
8	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_SUBJECT
9	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
10	EXT_CODE	☐	CRMT_TSRV_EXT_CODE	CRMT_TSRV_EXT_CODE	CHAR	40	0	Code in External System
11	ASP_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
12	CAT_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
13	KATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
14	.INCLUDE	☐				0	0	CRM Service :Structure Reference Object External Fields
15	TYPE_OBJECT	☐	CRMT_TYPE_OBJECT	TYPE_OBJECT	CHAR	1	0	Object Type for Reference Object in Subject Set
16	GUID_OBJECT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
17	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
18	IB_COMP_REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
19	IB_COMP_VALID	☐	TZNTSTMPS	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
20	IB_TZONE	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
21	MAIN_OBJECT	☐	CRMT_SRV_MAIN_OBJECT	BOOLEAN	CHAR	1	0	Main Reference Object
22	PART_CAUS_FAIL	☐	CRMT_SRV_PART_CAUSING_FAILURE	BOOLEAN	CHAR	1	0	Part Causing Defect
23	INST_DISM_INFO	☐	CRMT_INSTALL_DISMANTLE_INFO	CRMT_INSTALL_DISMANTLE_INFO	CHAR	1	0	Installation Information/Dismantling Information
24	PRODUCT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
25	SERIAL_NUMBER	☐	CRMT_SERIAL_NUMBER	CHAR40	CHAR	40	0	Product Serial Number
26	EXT_REFOBJ	☐	CRMT_EXT_REFOBJ	CHAR40	CHAR	40	0	External Reference Object

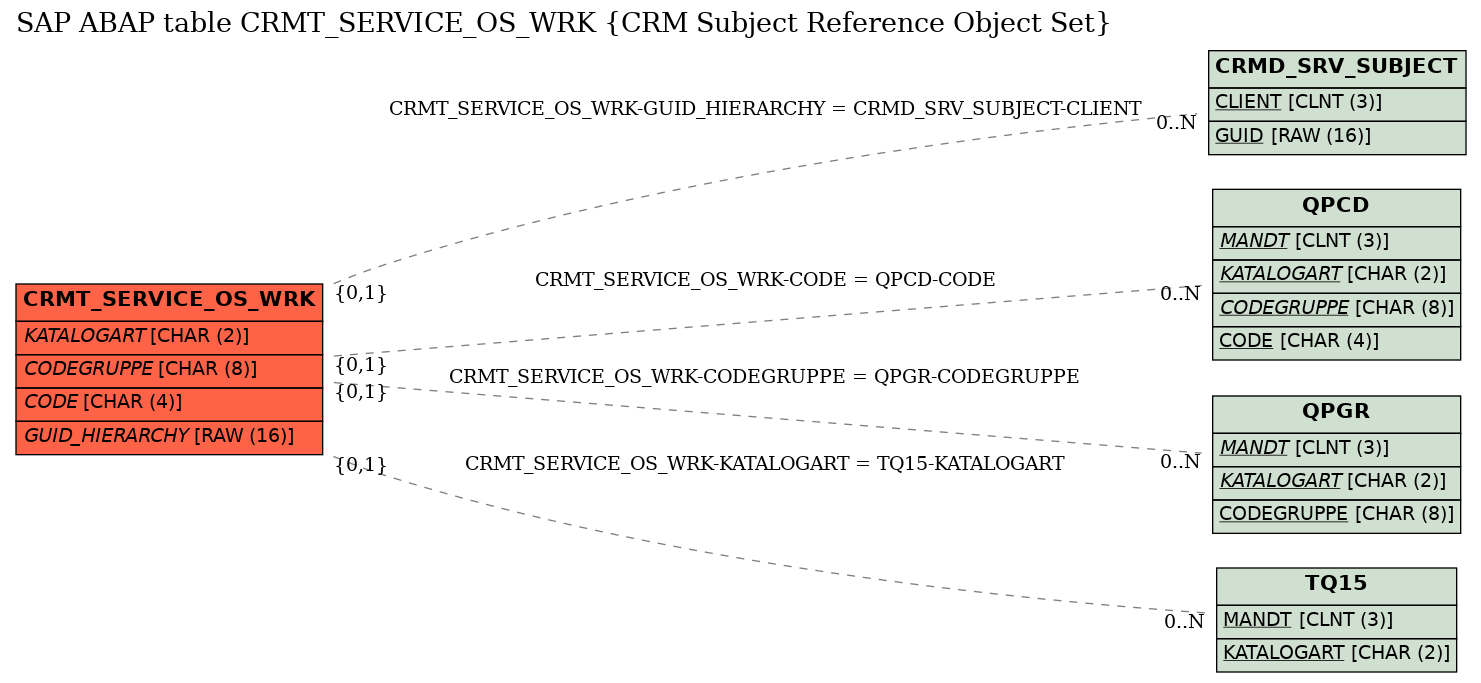

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_SERVICE_OS_WRK	CODE	QPCD	CODE	REF	C	CN
2	CRMT_SERVICE_OS_WRK	CODEGRUPPE	QPGR	CODEGRUPPE	REF	C	CN
3	CRMT_SERVICE_OS_WRK	GUID_HIERARCHY	CRMD_SRV_SUBJECT	CLIENT	REF	C	CN
4	CRMT_SERVICE_OS_WRK	KATALOGART	TQ15	KATALOGART	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
