SAP ABAP Table CRMT_REFOBJ_WRK (CRM Service: Reference Object Work Area and Buffer)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF-CAT (Application Component) Categorization and Reference Object in Transactions
     ⤷ CRM_SERVICE_REFOBJ (Package) CRM: Service Reference Object-Subject

Basic Data

Table Category	INTTAB	Structure

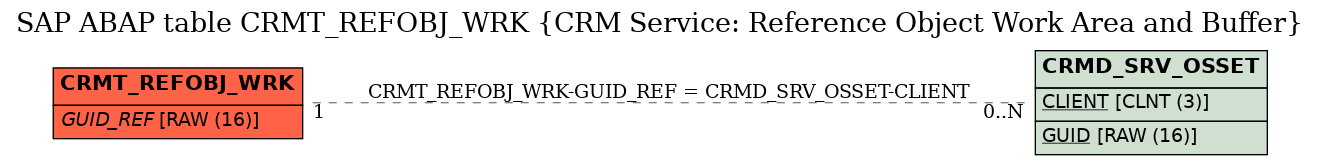

Structure	CRMT_REFOBJ_WRK	Table Relationship Diagram
Short Description	CRM Service: Reference Object Work Area and Buffer

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	One Order: Key Fields
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	REF_KIND	☐	CRMT_OBJECT_KIND	CRM_OBJECTKIND	CHAR	1	0	Object Type
6	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
7	.INCLUDE	☐				0	0	CRM Service: Structure Reference Object Internal Fields
8	GUID_REF	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_OSSET
9	.INCLUDE	☐				0	0	CRM Service :Structure Reference Object External Fields
10	TYPE_OBJECT	☐	CRMT_TYPE_OBJECT	TYPE_OBJECT	CHAR	1	0	Object Type for Reference Object in Subject Set
11	GUID_OBJECT	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
12	PRODUCT_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
13	IB_COMP_REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
14	IB_COMP_VALID	☐	TZNTSTMPS	TZNTSTMPS	DEC	15	0	UTC Time Stamp in Short Form (YYYYMMDDhhmmss)
15	IB_TZONE	☐	SYSTZONLO	SYCHAR06	CHAR	6	0	Time Zone
16	MAIN_OBJECT	☐	CRMT_SRV_MAIN_OBJECT	BOOLEAN	CHAR	1	0	Main Reference Object
17	PART_CAUS_FAIL	☐	CRMT_SRV_PART_CAUSING_FAILURE	BOOLEAN	CHAR	1	0	Part Causing Defect
18	INST_DISM_INFO	☐	CRMT_INSTALL_DISMANTLE_INFO	CRMT_INSTALL_DISMANTLE_INFO	CHAR	1	0	Installation Information/Dismantling Information
19	PRODUCT_GUID	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
20	SERIAL_NUMBER	☐	CRMT_SERIAL_NUMBER	CHAR40	CHAR	40	0	Product Serial Number
21	EXT_REFOBJ	☐	CRMT_EXT_REFOBJ	CHAR40	CHAR	40	0	External Reference Object
22	.INCLUDE	☐				0	0	CRM Service: Structure Reference Object Dynamic Fields
23	TEXT_OBJECT	☐	CRMT_TEXT_OBJECT	SM_CHAR40	CHAR	40	0	Reference Object Text
24	SELECT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
25	IB_IBASE	☐	IB_IBASE	IB_INSTANCE	NUMC	18	0	IBase: Number of the Installed Base/IBase
26	IB_INSTANCE	☐	IB_INSTANCE	IB_INSTANCE	NUMC	18	0	IB: Component (instance)
27	TEXT_IB_COMP	☐	IB_INST_DESCR	TEXT40	CHAR	40	0	IB: Component Description
28	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
29	.INCLUDE	☐				0	0	CRM Service: Structure Areas External Fields
30	ALTID_TYPE	☐	COMT_ALTID_TYPE	CHAR16	CHAR	16	0	ID Type for Alternative IDs
31	ID_FROM	☐	CRMT_ID_FROM_VALUE	CHAR255	CHAR	255	0	Object ID 'FROM' Value for Area Specification
32	ID_TO	☐	CRMT_ID_TO_VALUE	CHAR255	CHAR	255	0	Object ID 'TO' Value for Area Specification
33	GUID_RANGE	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_REFOBJ_WRK	GUID_REF	CRMD_SRV_OSSET	CLIENT	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
