SAP ABAP Table CRMT_READING_MPIL (BTIL Attribute Structure for READING Set)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-COU (Application Component) Counter
     ⤷ CRM_MPIL (Package) Measuring Points - Model and Interaction Layer

Basic Data

Table Category	INTTAB	Structure

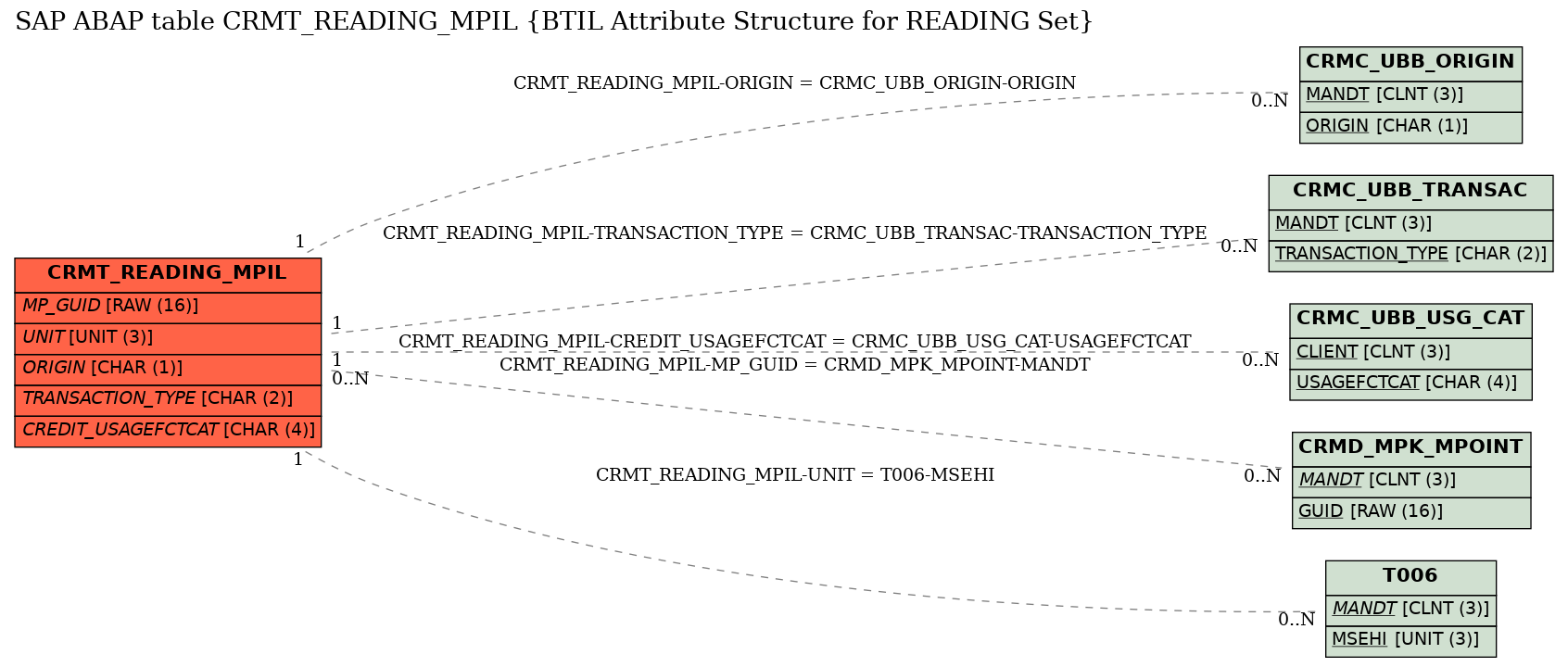

Structure	CRMT_READING_MPIL	Table Relationship Diagram
Short Description	BTIL Attribute Structure for READING Set

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Workstructure of Readings
2	GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object
3	.INCLUDE	☐				0	0	Fields Shared Between Work and DB Structures of Readings
4	.INCLUDE	☐				0	0	Time and User Information
5	CREATED_AT	☐	CRMT_MPK_CREATED_AT	BCOS_TSTMP	DEC	15	0	Transaction was Created at this Time
6	CREATED_BY	☐	CRMT_MPK_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
7	CHANGED_AT	☐	CRMT_MPK_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
8	CHANGED_BY	☐	CRMT_MPK_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
9	MP_GUID	☐	CRMT_MPK_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a Kernel Object	CRMD_MPK_MPOINT
10	OBJECT_ID	☐	CRMT_MPK_OBJECT_ID_READING	CRM_MPK_OBJECT_ID_READING	CHAR	20	0	Reading Number
11	LOGSYS	☐	LOGSYS	LOGSYS	CHAR	10	0	Logical system	*
12	ERROR_FLAG	☐	CRMT_MPK_ERROR	CRM_MPK_BOOLEAN	CHAR	1	0	Reading Error
13	CANCEL	☐	CRMT_MPK_CANCEL	CRM_MPK_BOOLEAN	CHAR	1	0	Cancel Reading
14	DELETE_FLAG	☐	CRMT_MPK_DELETE	CRM_MPK_BOOLEAN	CHAR	1	0	Deletion Flag for One-stage Deletion
15	DESCRIPTION	☐	CRMT_MPK_DESCR	CRM_MPK_DESCR	CHAR	40	0	Counter Description
16	TEXT_EXISTS	☐	CRMT_MPK_TEXT_EXISTS	CRM_MPK_BOOLEAN	CHAR	1	0	Long Text Exists for this Object
17	UNIT	☐	CRMT_MPK_UNIT_ENTER	MEINS	UNIT	3	0	Unit for Counter Reading	T006
18	READER	☐	CRMT_MPK_READER	BU_PARTNER	CHAR	10	0	Person who took the reading	*
19	READER_GUID	☐	BU_PARTNER_GUID	SYSUUID	RAW	16	0	Business Partner GUID
20	SOURCE	☐	CRMT_MPK_SOURCE	CRM_MPK_SOURCE	CHAR	1	0	Reading Origin
21	INPUT_MODE	☐	CRMT_MPK_INPUT_MODE	CRM_MPK_INPUT_MODE	CHAR	1	0	Input Mode for Readings
22	TIMESTAMP_FROM	☐	CRMT_MPK_TIMESTAMP_FROM	TZNTSTMPS	DEC	15	0	Valid from timestamp
23	TIMEZONE_FROM	☐	CRMT_MPK_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone from	*
24	TIMESTAMP_TO	☐	CRMT_MPK_TIMESTAMP_TO	TZNTSTMPS	DEC	15	0	Valid to timestamp
25	TIMEZONE_TO	☐	CRMT_MPK_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone to	*
26	.INCLUDE	☐				0	0	EEW Include Readings
27	EEW_MPK_READING	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
28	.INCLUDE	☐				0	0
29	.INCLUDE	☐				0	0	Value Fields of Readings in work format
30	VALUE	☐	CRMT_MPK_VALUE_VISIBLE_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Visible Counter Value
31	VALUE_DELTA	☐	CRMT_MPK_VALUE_DIFF_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Difference Value from Previous Counter Reading
32	OVERALL	☐	CRMT_MPK_VALUE_OVERALL_UI	CRM_MPK_FLTP_UI	CHAR	22	0	Overall Counter Value
33	.INCLUDE	☐				0	0	Reading values in SI unit in FLTP format
34	SI_VALUE	☐	CRMT_MPK_VALUE_VISIBLE_SI	CRM_MPK_FLTPS	FLTP	16	16	Visible value in SI unit of measure
35	SI_VALUE_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
36	SI_OVERALL	☐	CRMT_MPK_VALUE_OVERALL_SI	CRM_MPK_FLTPS	FLTP	16	16	Overall value in SI unit of measure
37	SI_OVERALL_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
38	SI_DELTA	☐	CRMT_MPK_VALUE_DIFF_SI	CRM_MPK_FLTPS	FLTP	16	16	Difference Value in SI Unit of Measure
39	SI_DELTA_X	☐	CRMT_MPK_IS_VALUE	CRM_MPK_BOOLEAN	CHAR	1	0	Associated Number Field Contains a Value
40	.INCLUDE	☐				0	0	UBB Reading Information (Additional Data)
41	ORIGIN	☐	CRMT_UBB_ORIGIN_TYPE	CRM_UBB_ORIGIN_TYPE	CHAR	1	0	Reading Origin	CRMC_UBB_ORIGIN
42	TRANSACTION_TYPE	☐	CRMT_UBB_TRANSACT_TYPE	CRM_UBB_TRANSACT_TYPE	CHAR	2	0	Reading Type	CRMC_UBB_TRANSAC
43	USAGE_CALC	☐	CRMT_UBB_USAGE_CALC	BOOLE	CHAR	1	0	Used in Usage Volume Overview
44	ESTIMATION	☐	CRMT_UBB_ESTIMATION_CHK	BOOLE	CHAR	1	0	Use in Estimations
45	USAGE_REPOSITORY	☐	CRMT_UBB_USAGE_REPOS	BOOLE	CHAR	1	0	Used in Usage Credit
46	NOT_CHANGEABLE	☐	CMRT_UBB_RD_NOT_CHNGABLE	BOOLE	CHAR	1	0	Reading Not Modifiable
47	CHANGED_MAN	☐	CMRT_UBB_RD_CHANGED_MAN	CRM_UBB_RD_CHANGED_MAN	CHAR	1	0	Reading was Changed Manually
48	MULTIPLE_OFL	☐	CRMT_UBB_MUL_OVERFLOW	CRM_UBB_MUL_OVERFLOW	FLTP	16	16	Multiple Overflow
49	CONTRACT_ITM	☐	CRMT_UBB_CONTRACT_ITEM_GUID	SYSUUID	RAW	16	0	GUID for Service Item of Contract
50	CONTRACT_ITM_PRE	☐	CRMT_UBB_CONTRACT_ITEM_GUID_2	SYSUUID	RAW	16	0	GUID for Service Item of Previous Contract
51	CONTRACT_OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
52	CONTRACT_ITEM_NO	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
53	.INCLUDE	☐				0	0	UBB Credit Clipboard for Incorrect Readings
54	CREDIT_USAGEFCTCAT	☐	CRMT_UBB_USAGEFCT_CAT	CRM_UBB_USAGEFCT_CAT	CHAR	4	0	Usage Function Category	CRMC_UBB_USG_CAT
55	CREDIT_QUANTITY	☐	CRMT_UBB_CRED_QUANTITY	CRM_MENGV15	QUAN	15	3	Credit Quantity
56	CREDIT_UNIT	☐	CRMT_UBB_CRED_UNIT	MEINS	UNIT	3	0	Credit Unit	*
57	CREDIT_COMMENTS	☐	CRMT_UBB_COMMENT_60	CRM_UBB_COMMENT_60	CHAR	60	0	Comment
58	SRV_LVL	☐	CRMT_SLA_SRV_LVL	CRM_SLA_SRV_LVL	CHAR	22	0	SLA Metric Service Level

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_READING_MPIL	CREDIT_USAGEFCTCAT	CRMC_UBB_USG_CAT	USAGEFCTCAT		1	CN
2	CRMT_READING_MPIL	MP_GUID	CRMD_MPK_MPOINT	MANDT
3	CRMT_READING_MPIL	ORIGIN	CRMC_UBB_ORIGIN	ORIGIN		1	CN
4	CRMT_READING_MPIL	TRANSACTION_TYPE	CRMC_UBB_TRANSAC	TRANSACTION_TYPE		1	CN
5	CRMT_READING_MPIL	UNIT	T006	MSEHI	REF	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	510
