SAP ABAP Table CRMD_MPK_MPOINT (Measuring Point)
Hierarchy
☛
BBPCRM (Software Component) BBPCRM
⤷ CRM-BF-COU (Application Component) Counter
⤷ CRM_MPK (Package) Measuring Point Kernel
⤷ CRM-BF-COU (Application Component) Counter
⤷ CRM_MPK (Package) Measuring Point Kernel
Basic Data
Table Category | TRANSP | Transparent table |

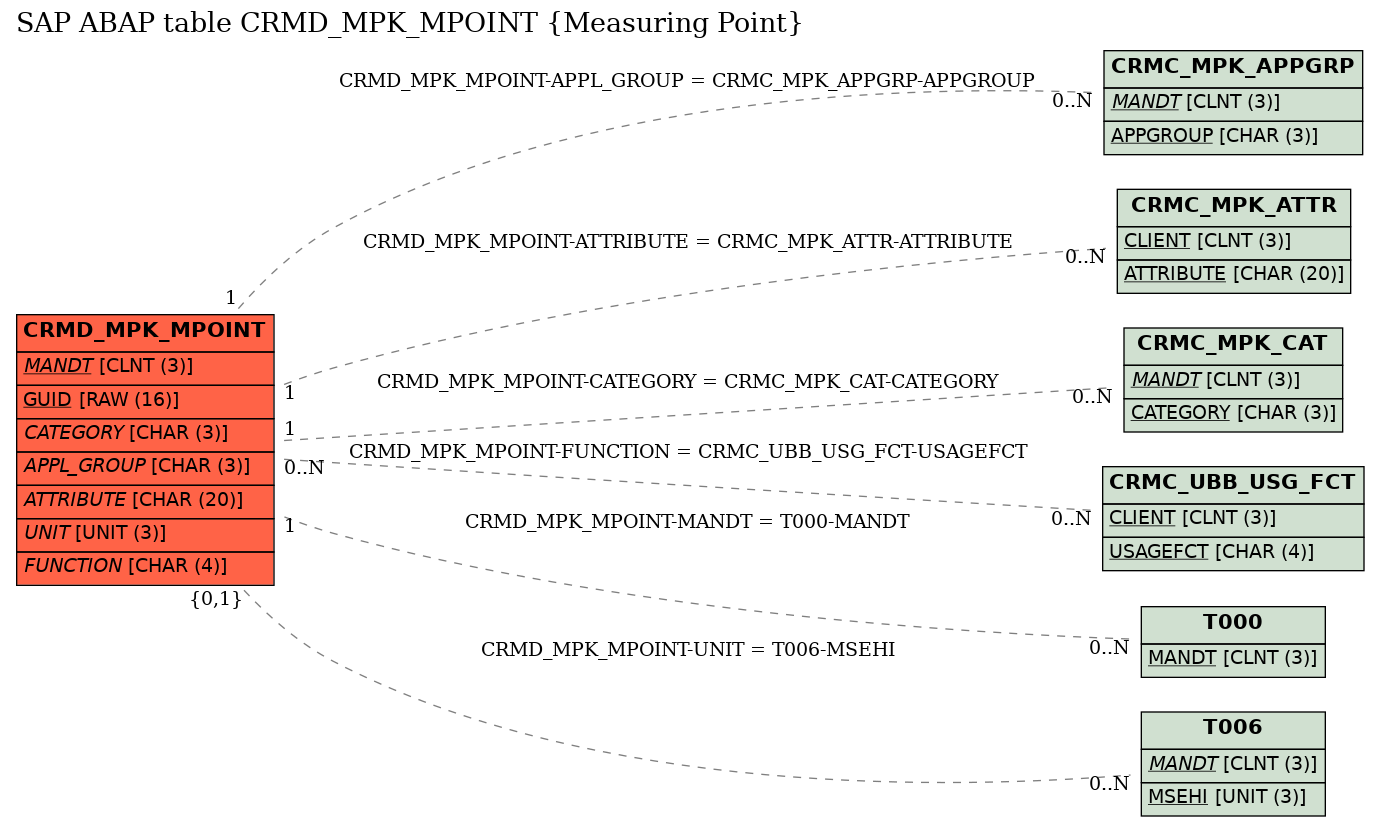

Transparent table | CRMD_MPK_MPOINT | Table Relationship Diagram |
Short Description | Measuring Point |
Delivery and Maintenance
Pool/cluster | ||
Delivery Class | A | Application Table (Master- and Transaction Data) |
Data Browser/Table View Maintenance | Display/Maintenance Allowed with Restrictions |
Components
Field | Key | Data Element | Domain | Data Type |
Length | Decimal Places |
Short Description | Check table |
|
---|---|---|---|---|---|---|---|---|---|
1 | .INCLUDE | 0 | 0 | Key Fields | |||||
2 | MANDT | MANDT | MANDT | CLNT | 3 | 0 | Client | T000 | |
3 | GUID | CRMT_MPK_OBJECT_GUID | SYSUUID | RAW | 16 | 0 | GUID of a Kernel Object | ||
4 | .INCLUDE | 0 | 0 | Fields Shared by DB and WRK Structures of Measuring Point | |||||
5 | .INCLUDE | 0 | 0 | Time and User Information | |||||
6 | CREATED_AT | CRMT_MPK_CREATED_AT | BCOS_TSTMP | DEC | 15 | 0 | Transaction was Created at this Time | ||
7 | CREATED_BY | CRMT_MPK_CREATED_BY | UNAME | CHAR | 12 | 0 | User that Created the Transaction | ||
8 | CHANGED_AT | CRMT_MPK_CHANGED_AT | BCOS_TSTMP | DEC | 15 | 0 | Time of Last Change to the Transaction | ||
9 | CHANGED_BY | CRMT_MPK_CHANGED_BY | UNAME | CHAR | 12 | 0 | Transaction Last Changed By | ||
10 | OBJECT_ID | CRMT_MPK_OBJECT_ID_MPOINT | CRM_MPK_OBJECT_ID_MPOINT | CHAR | 20 | 0 | Counter Identifier | ||
11 | DESCRIPTION | CRMT_MPK_DESCR | CRM_MPK_DESCR | CHAR | 40 | 0 | Counter Description | ||
12 | TEXT_EXISTS | CRMT_MPK_TEXT_EXISTS | CRM_MPK_BOOLEAN | CHAR | 1 | 0 | Long Text Exists for this Object | ||
13 | CATEGORY | CRMT_MPK_CATEGORY | CRM_MPK_CATEGORY | CHAR | 3 | 0 | Counter Category | CRMC_MPK_CAT | |
14 | APPL_GROUP | CRMT_MPK_APPGROUP | CRM_MPK_APPGROUP | CHAR | 3 | 0 | Application Group | CRMC_MPK_APPGRP | |
15 | TYPE | CRMT_MPK_TYPE | CRM_MPK_TYPE | NUMC | 1 | 0 | Counter Type | ||
16 | ATTRIBUTE | CRMT_MPK_ATTRIBUTE | CRM_MPK_ATTRIBUTE | CHAR | 20 | 0 | Counter Attribute | CRMC_MPK_ATTR | |
17 | UNIT | CRMT_MPK_UNIT | MEINS | UNIT | 3 | 0 | Unit of Measurement for Counter | T006 | |
18 | DECIMALS | CRMT_MPK_DECIMALS | CRM_MPK_DECIMALS | INT2 | 5 | 0 | Number of Decimal Places in a Counter | ||
19 | PLAN_TIME | CRMT_MPK_PLTIME | CRM_MPK_PLTIME | INT1 | 3 | 0 | Planned Timeframe | ||
20 | PLAN_UNIT | CRMT_MPK_UNIT_PLANNED | MEINS | UNIT | 3 | 0 | Planned Unit of Time | * | |
21 | STATUS | CRMT_MPK_STATUS | CRM_MPK_STATUS | CHAR | 1 | 0 | Counter Status | ||
22 | STATUS_READING | CRMT_MPK_STATUS_READING | CRM_MPK_STATUS_READING | CHAR | 1 | 0 | Reading Status of Counter | ||
23 | FUNCTION | CRMT_UBB_USAGEFCT | CRM_UBB_USAGEFCT | CHAR | 4 | 0 | Usage Function | CRMC_UBB_USG_FCT | |
24 | LOGSYS | LOGSYS | LOGSYS | CHAR | 10 | 0 | Logical system | * | |
25 | .INCLUDE | 0 | 0 | EEW Include Measuring Points | |||||
26 | EEW_MPK_MPOINT | DUMMY | DUMMY | CHAR | 1 | 0 | Dummy function in length 1 | ||
27 | .INCLUDE | 0 | 0 | ||||||
28 | .INCLUDE | 0 | 0 | Value Fields for Database Structure | |||||
29 | VALUE_INIT | CRMT_MPK_VALUE_INIT | CRM_MPK_FLTPS | FLTP | 16 | 16 | Initial Value | ||
30 | VALUE_INIT_X | CRMT_MPK_IS_VALUE | CRM_MPK_BOOLEAN | CHAR | 1 | 0 | Associated Number Field Contains a Value | ||
31 | VALUE_MIN | CRMT_MPK_VALUE_MIN | CRM_MPK_FLTPS | FLTP | 16 | 16 | Minimum Counter Value | ||
32 | VALUE_MIN_X | CRMT_MPK_IS_VALUE | CRM_MPK_BOOLEAN | CHAR | 1 | 0 | Associated Number Field Contains a Value | ||
33 | VALUE_MAX | CRMT_MPK_VALUE_MAX | CRM_MPK_FLTPS | FLTP | 16 | 16 | Maximum value of counter | ||
34 | VALUE_MAX_X | CRMT_MPK_IS_VALUE | CRM_MPK_BOOLEAN | CHAR | 1 | 0 | Associated Number Field Contains a Value | ||
35 | VALUE_PLAN | CRMT_MPK_VALUE_PLAN | CRM_MPK_FLTPS | FLTP | 16 | 16 | Planned Value of Counter | ||
36 | VALUE_PLAN_X | CRMT_MPK_IS_VALUE | CRM_MPK_BOOLEAN | CHAR | 1 | 0 | Associated Number Field Contains a Value | ||
37 | OVERFLOW | CRMT_MPK_OVERFLOW | CRM_MPK_FLTPS | FLTP | 16 | 16 | Overflow Value for Counter Reading | ||
38 | OVERFLOW_X | CRMT_MPK_IS_VALUE | CRM_MPK_BOOLEAN | CHAR | 1 | 0 | Associated Number Field Contains a Value |
Foreign Keys
Source Table | Source Column | Foreign Table | Foreign Column | Dependency Factor | Cardinality left | Cardinality right | |
---|---|---|---|---|---|---|---|
1 | CRMD_MPK_MPOINT | APPL_GROUP | CRMC_MPK_APPGRP | APPGROUP | KEY | 1 | CN |
2 | CRMD_MPK_MPOINT | ATTRIBUTE | CRMC_MPK_ATTR | ATTRIBUTE | KEY | 1 | CN |
3 | CRMD_MPK_MPOINT | CATEGORY | CRMC_MPK_CAT | CATEGORY | KEY | 1 | CN |
4 | CRMD_MPK_MPOINT | FUNCTION | CRMC_UBB_USG_FCT | USAGEFCT | |||
5 | CRMD_MPK_MPOINT | MANDT | T000 | MANDT | KEY | 1 | CN |
6 | CRMD_MPK_MPOINT | UNIT | T006 | MSEHI | REF | C | CN |
History
Last changed by/on | SAP | 20130604 |
SAP Release Created in |
