SAP ABAP Table CRMT_OUTPUT_SRV_REASON_H_COM (SRV_REASON_H_COM)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-ACI (Application Component) Actions
     ⤷ CRM_OUTPUT (Package) CRM ORDER: Output Control

Basic Data

Table Category	INTTAB	Structure

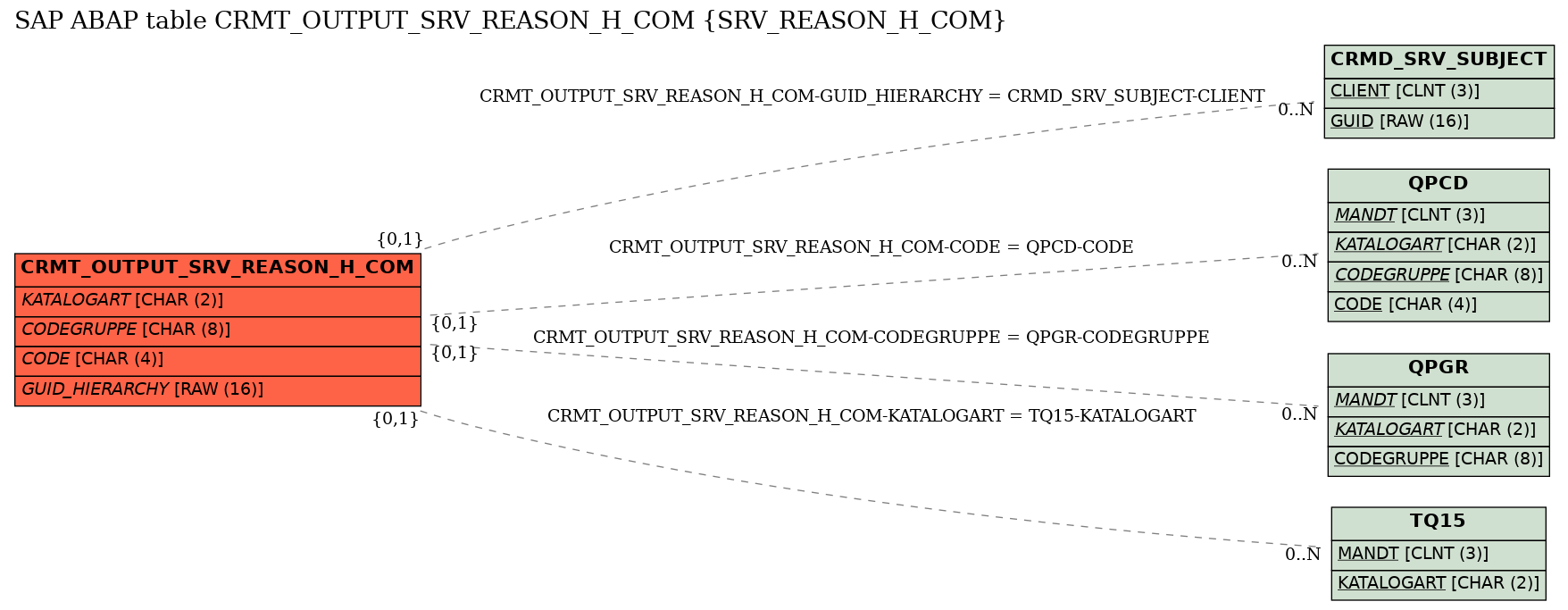

Structure	CRMT_OUTPUT_SRV_REASON_H_COM	Table Relationship Diagram
Short Description	SRV_REASON_H_COM

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Service: Structure Subject Communication Fields
2	REF_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
3	REF_HANDLE_H	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	REF_GUID_H	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	.INCLUDE	☐				0	0	CRM Service: Structure Subject External Fields
7	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
8	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
9	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
10	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
11	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
12	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
13	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object	CRMD_SRV_SUBJECT
14	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
15	EXT_CODE	☐	CRMT_TSRV_EXT_CODE	CRMT_TSRV_EXT_CODE	CHAR	40	0	Code in External System
16	ASP_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
17	CAT_ID	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
18	KATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
19	.INCLUDE	☐				0	0	CRM Service: Structure Subject Dynamic Fields
20	KATALOGTXT	☐	QTXTCATALG	QKURZTEXT	CHAR	40	0	Short Text for the Catalog
21	SCHLAGWORT	☐	QSWORTPK	QSWORTPK	CHAR	12	0	Keyword for Catalog Type
22	GROUPTEXT	☐	QKTEXTGR	QKURZTEXT	CHAR	40	0	Code Group Description
23	KURZTEXT	☐	QKTEXTGRCD	QKURZTEXT80	CHAR	80	0	Code Group Short Text
24	CODETEXT	☐	QTXT_CODE	QKURZTEXT	CHAR	40	0	Short Text for Code
25	CATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
26	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
27	SELECT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
28	CODEPROFILE	☐	CRMT_CODEGROUPS	CRM_CODEGROUPS	CHAR	9	0	Code Group Profile for Catalog
29	LISTCODE	☐	CRMT_SRV_SERVICE_CODE_LIST	CHAR14	CHAR	14	0	Code
30	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_OUTPUT_SRV_REASON_H_COM	CODE	QPCD	CODE	REF	C	CN
2	CRMT_OUTPUT_SRV_REASON_H_COM	CODEGRUPPE	QPGR	CODEGRUPPE	REF	C	CN
3	CRMT_OUTPUT_SRV_REASON_H_COM	GUID_HIERARCHY	CRMD_SRV_SUBJECT	CLIENT	REF	C	CN
4	CRMT_OUTPUT_SRV_REASON_H_COM	KATALOGART	TQ15	KATALOGART	REF	C	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	20C
