SAP ABAP Table CRMT_OUTPUT_SERVICE_I_COM (Output Structure CRM Service Data Item)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BF-ACI (Application Component) Actions
     ⤷ CRM_OUTPUT (Package) CRM ORDER: Output Control

Basic Data

Table Category	INTTAB	Structure

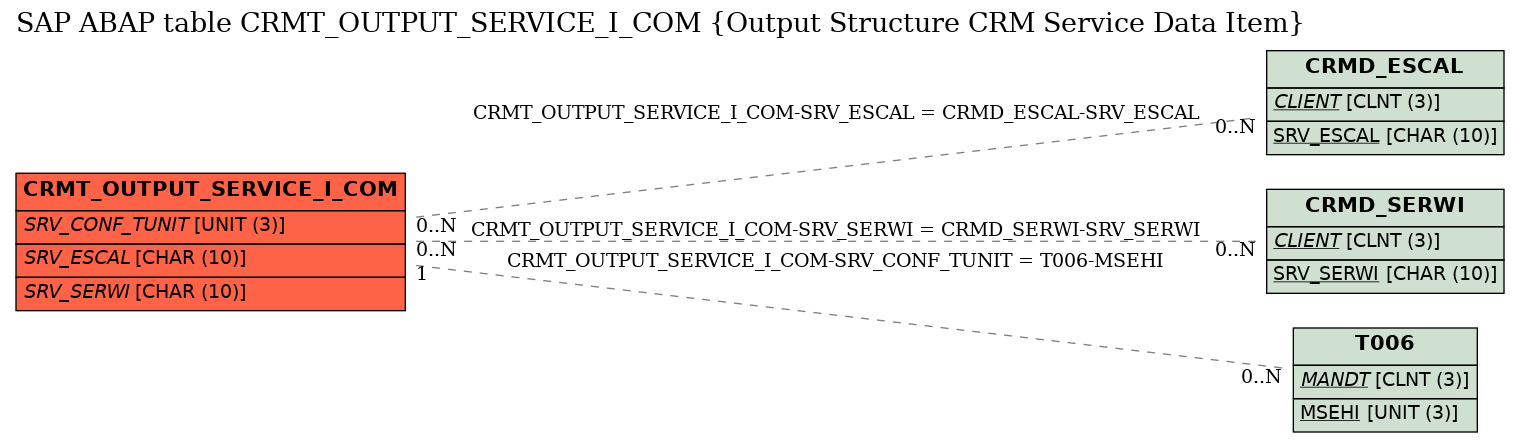

Structure	CRMT_OUTPUT_SERVICE_I_COM	Table Relationship Diagram
Short Description	Output Structure CRM Service Data Item

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	CRM Service Item: Structure Workarea and Object Buffer
2	.INCLUDE	☐				0	0	Transaction Item - Service
3	.INCLUDE	☐				0	0	One Order: Key Fields
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
5	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	.INCLUDE	☐				0	0	CRM Service Item: Structure of System Fields
7	SERVICE_I_INT	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
8	.INCLUDE	☐				0	0	CRM Service Item: Structure of External Fields
9	.INCLUDE	☐				0	0	Service Process
10	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
11	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
12	INSPEC_RELEVANT	☐	CRMT_INSPECTION_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Inspection
13	.INCLUDE	☐				0	0	Service Confirmation
14	SRV_CONF_TIME	☐	CRMT_SRV_CONF_DURATION	DAUER_5_2	QUAN	7	2	Confirmed Duration
15	SRV_CONF_TUNIT	☐	CRMT_SRV_CONF_TIME_UNIT	MEINS	UNIT	3	0	Time Unit for Confirmed Duration	T006
16	ASSIGNMENT_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
17	.INCLUDE	☐				0	0	ServiceProcess General Fields for TransactionAndConfirmation
18	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	*
19	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	*
20	.INCLUDE	☐				0	0	Service Agreements (SLA)
21	SRV_ESCAL	☐	CRMT_SRV_ESCAL	CRM_SRV_ESCAL	CHAR	10	0	Response Profile	CRMD_ESCAL
22	SRV_SERWI	☐	CRMT_SRV_SERWI	CRM_SRV_SERWI	CHAR	10	0	Service Profile	CRMD_SERWI
23	SRV_RULE_ID	☐	SC_RULEID	TEXT25	CHAR	25	0	Internal Identification of Rules of Periodic Appointments
24	SRCL_SERVICE_PROFILE	☐	CRMT_SRCL_SRVPRF	CRM_SRV_SERWI	CHAR	10	0	Processing Times: Service Profile	*
25	SRCL_RESPONSE_PROFILE	☐	CRMT_SRCL_RSPRF	CRM_SRCL_RSPRF	CHAR	10	0	Processing Time: Response Profile	*
26	.INCLUDE	☐				0	0	Service Process Fields for Warranty Management
27	WARRANTY	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
28	WARRANTY_ID	☐	CRMT_WTY_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Warranty ID
29	.INCLUDE	☐				0	0	EEW Include
30	SERVICE_I_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
31	.INCLUDE	☐				0	0
32	.INCLUDE	☐				0	0	CRM Service Item:Dynamic Fields (Only Modifiable Internally)
33	DEMAND_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
34	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
35	HR_STEXT	☐	STEXT	TEXT40	CHAR	40	0	Object Name
36	HR_OTEXT	☐	OTEXT	TEXT25	CHAR	25	0	Object Type Text
37	QUANTITY_OLD	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
38	QTY_UNIT_OLD	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
39	.INCLUDE	☐				0	0	Service Item: Time Fields
40	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
41	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
42	TIME_OUT_FROM	☐	CRMT_SRV_BEG_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Start of Work
43	TIMESTAMP_TO	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
44	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	*
45	TIME_OUT_TO	☐	CRMT_SRV_END_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	End of Work
46	TIMEPROFILE	☐	TIMECONT	TIMECONT	CHAR	12	0	Name of Date Profile
47	.INCLUDE	☐				0	0	CRM Service Item: Dynamic Fields (Externally Modifiable)
48	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
49	.INCLUDE	☐				0	0	CRM Structure - Service Item Requirement - External
50	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
51	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	*
52	HR_PLVAR	☐	PLVAR	PLVAR	CHAR	2	0	Plan Version	*
53	HR_OTYPE	☐	OTYPE	OTYPE	CHAR	2	0	Object Type	*
54	HR_OBJID	☐	HROBJID	HROBJID	NUMC	8	0	Object ID	*
55	PERSONS	☐	CRMT_SRV_PERSONS	NUMC3	NUMC	3	0	Number of Persons
56	.INCLUDE	☐				0	0	Scheduling Parameters
57	SCHED_PARAM1	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
58	SCHED_PARAM2	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
59	SCHED_PARAM3	☐	CRM_LRP_SCHEDULING_PARAM_DEF	CRM_LRP_SCHEDULING_PARAM	CHAR	10	0	Definition of Appointment Scheduling Parameters
60	.INCLUDE	☐				0	0	CRM Service Confirmation Item: Dynamic Fields
61	ORDER_NUMBER	☐	CRMT_OBJECT_ID_SRV	CRM_OBJECT_ID	CHAR	10	0	Service Process Number
62	ORDER_ITEM	☐	CRMT_ITEM_NO_SRV	CRM_ITEM_NO	NUMC	10	0	Transaction Item Number in Document

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_OUTPUT_SERVICE_I_COM	SRV_CONF_TUNIT	T006	MSEHI		1	CN
2	CRMT_OUTPUT_SERVICE_I_COM	SRV_ESCAL	CRMD_ESCAL	SRV_ESCAL
3	CRMT_OUTPUT_SERVICE_I_COM	SRV_SERWI	CRMD_SERWI	SRV_SERWI

History

Last changed by/on	SAP	20130604
SAP Release Created in	20C
