SAP ABAP Table CRMT_ORDERADM_H_LAYO (CRM: Table Output Structure for crmt_orderadm_h_wrk)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-CTR-PCO (Application Component) Pool Contract
     ⤷ CRM_UBB_POOLCONTRACT (Package) UBB Pool Contract Enhancement

Basic Data

Table Category	INTTAB	Structure

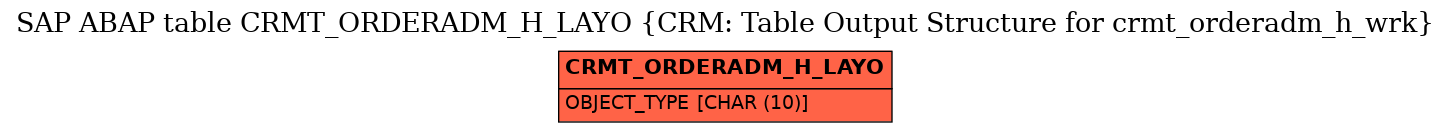

Structure	CRMT_ORDERADM_H_LAYO	Table Relationship Diagram
Short Description	CRM: Table Output Structure for crmt_orderadm_h_wrk

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	General Header Data - Structure of Work Area and Buffer
2	.INCLUDE	☐				0	0	Business Transaction
3	.INCLUDE	☐				0	0	One Order: Key Fields
4	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
5	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
7	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
8	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
9	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
10	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
11	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
12	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
13	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
14	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
15	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
16	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
17	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
18	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
19	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
20	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
21	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
22	.INCLUDE	☐				0	0	EEW Extension
23	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
24	.INCLUDE	☐				0	0
25	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
26	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
27	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
28	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
29	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
30	.INCLUDE	☐				0	0	General Header Data - Structure of System Fields
31	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY_DB	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Trans. Cat.	*
32	ARCHIVING_FLAG	☐	CRMT_ARCHIVING_FLAG	CRM_BOOLEAN	CHAR	1	0	Indicator Whether the Business Transaction Can Be Archived
33	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
34	OBJECT_ID_OK	☐	CRMT_OBJECT_ID_OK	CRM_BOOLEAN	CHAR	1	0	Indicator Whether Business Transaction Number is Correct
35	VERIFY_DATE	☐	CRMT_VERIFY_DATE	BCOS_TSTMP	DEC	15	0	Time Period of Last Archiving Attempt
36	CRM_CHANGED_AT	☐	CRMT_ONLINE_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change in CRM Online
37	POSTPROCESS_AT	☐	CRMT_SUBMIT_FOR_POSTPROCESS_AT	BCOS_TSTMP	DEC	15	0	Time at Which Transaction Is Saved for Postprocessing
38	.INCLUDE	☐				0	0	General Header Data - Structure with dyn. Fields - Internal
39	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
40	.INCLUDE	☐				0	0	Control Data of Predecessor Document
41	PREDECESSOR_PROCESS	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
42	PREDECESSOR_OBJECT_TYPE	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	*
43	PREDECESSOR_LOG_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
44	BIN_RELATION_TYPE	☐	CRMT_BIN_RELATION_TYPE	CRM_BIN_RELATION_TYPE	CHAR	4	0	Binary Relation Type for Object Relationship Service
45	DELETED_FLAG	☐	CRMT_DELETED_FLAG	CRM_BOOLEAN	CHAR	1	0	Indicator whether the object is marked for deletion
46	PREDECESSOR_GUID	☐	CRMT_PRED_GUID	SYSUUID	RAW	16	0	GUID for a preceding object
47	.INCLUDE	☐				0	0	General Header Data - Structure with dyn. Fields - External
48	HIGHEST_ITEM_NO	☐	CRMT_HIGHEST_ITEM_NUMBER	CRM_ITEM_NO	NUMC	10	0	Highest item number for a document
49	VALID_FROM_EXT	☐	CRMT_VALID_FROM	BCOS_TSTMP	DEC	15	0	Time Dependency: Validity Start Date
50	EARLY_ORDER_NO	☐	CRMT_EARLY_ORDER_NO	CRM_BOOLEAN	CHAR	1	0	Early Document Number Assignment
51	POOL_TYPE	☐	CRMT_POOL_CONTRACT_TYPE	CRMT_POOL_CONTRACT_TYPE	CHAR	2	0	Pool Contract Type	*
52	POOL_DESC	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
53	LINECOLOR	☐	CRMT_LINECOLOR		CHAR	4	0	Line Color

History

Last changed by/on	SAP	20140802
SAP Release Created in	310
