SAP ABAP Table CRMT_ISU_CM_I (Utilities order consistency monitor Header information table)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IU-XC (Application Component) Cross Components
     ⤷ CRM_IU_CM_API (Package) Utilities Consistency Monitor: Runtime & Customizing

Basic Data

Table Category	INTTAB	Structure

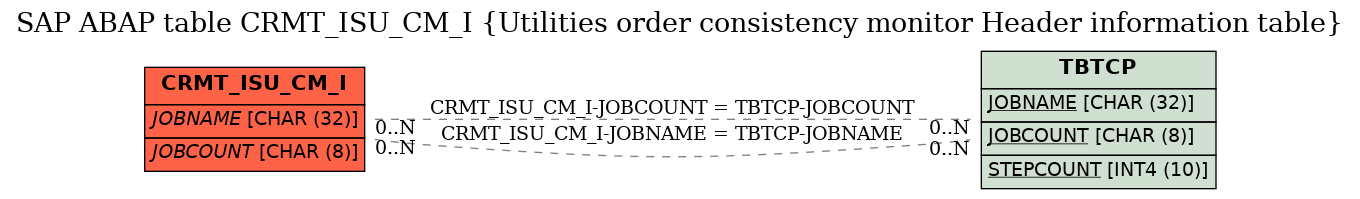

Structure	CRMT_ISU_CM_I	Table Relationship Diagram
Short Description	Utilities order consistency monitor Header information table

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Check Monitor: Checks
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	CHECK_RUN_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	CHECK_RUN_HEADER	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	JOBNAME	☐	BTCJOB	CHAR32	CHAR	32	0	Background job name	TBTCP
6	JOBCOUNT	☐	BTCJOBCNT	CHAR8	CHAR	8	0	Job ID	TBTCP
7	STEPCOUNT	☐	BTCSTEPCNT		INT4	10	0	Job step ID number.
8	CHECK_CLASS	☐	SEOCLSNAME	SEOCLSNAME	CHAR	30	0	Object Type Name
9	STARTED_AT	☐	CRMT_ISU_CM_STARTED_AT	COM_TSTMP	DEC	15	0	Started At
10	EXECUTED_AT	☐	CRMT_ISU_CM_EXECUTED_AT	COM_TSTMP	DEC	15	0	Executed At
11	COMPLETED_AT	☐	CRMT_ISU_CM_COMPLETED_AT	COM_TSTMP	DEC	15	0	Completed At
12	WARNINGS	☐	CRMT_ISU_CM_NO_WARNINGS	INT4	INT4	10	0	Number of Warnings
13	ERRORS	☐	CRMT_ISU_CM_NO_ERRORS	INT4	INT4	10	0	Number of Errors
14	RETESTED_AT	☐	CRMT_ISU_CM_EXECUTED_AT	COM_TSTMP	DEC	15	0	Executed At
15	PARTITIAL_CHECK	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
16	OUTDATED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
17	ISSUES	☐	CRMT_ISU_CM_NO_ISSUES	INT4	INT4	10	0	Number of Issues
18	OPEN_ISSUES	☐	CRMT_ISU_CM_NO_OPEN_ISSUES	INT4	INT4	10	0	Number of Open Issues
19	SOLVED_ISSUES	☐	CRMT_ISU_CM_NO_SOLVED_ISSUES	INT4	INT4	10	0	Solved Issues
20	DELETED	☐	FLAG	FLAG	CHAR	1	0	General Flag
21	IN_PROCESS_QRFC	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
22	IN_PROCESS_CORR	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
23	IN_PROCESS_JOB	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
24	ABORTED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
25	NOT_EXECUTED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
26	REF_CHECK_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
27	PERSISTED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
28	READ_ONLY	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
29	BATCH_MODE	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
30	CHANGED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
31	LOCKED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
32	SELECTED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
33	STATUS_ICON	☐	CRMT_IU_BOLTREE_COL_ICON	TEXT30	CHAR	30	0	Column Icon
34	STATUS_ICON_TOOLTIP	☐	TEXT100	TEXT100	CHAR	100	0	Text (100 characters)
35	ABORTED_TMP	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
36	PERIODIC	☐	BTCPFLAG	CHAR1	CHAR	1	0	Periodic Jobs Indicator
37	NEXT_CHECK_AT	☐	CRMT_ISU_CM_NEXT_CHECK_AT	COM_TSTMP	DEC	15	0	Next Check On
38	CORRECTION_SUPPORTED	☐	CHECKBOX	FUNC	CHAR	1	0	Checkbox in Reporting
39	RUNNING_JOBNAME	☐	BTCJOB	CHAR32	CHAR	32	0	Background job name
40	RUNNING_JOBCOUNT	☐	BTCJOBCNT	CHAR8	CHAR	8	0	Job ID
41	RUNNING_STEPCOUNT	☐	BTCSTEPCNT		INT4	10	0	Job step ID number.

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_ISU_CM_I	JOBCOUNT	TBTCP	JOBCOUNT
2	CRMT_ISU_CM_I	JOBNAME	TBTCP	JOBNAME

History

Last changed by/on	SAP	20130604
SAP Release Created in	702
