SAP ABAP Table CRMT_IPM_SE_RAA_API_IN (IPM: RAA max internal structure for inbound transfer data SE)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IM-IPM-RIN (Application Component) Rights Inventory Analysis
     ⤷ CRM_IPM_SE_RAA_MAP (Package) IPM Service Enabling - Rights Availability Analysis Mapping

Basic Data

Table Category	INTTAB	Structure

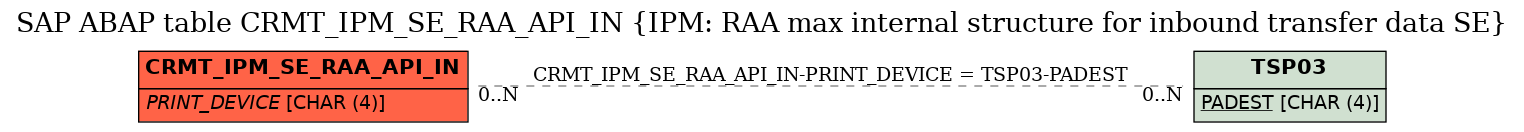

Structure	CRMT_IPM_SE_RAA_API_IN	Table Relationship Diagram
Short Description	IPM: RAA max internal structure for inbound transfer data SE

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	IPM RAA SE: structure collects control fields for RAA SE
2	MESSAGE_GUID	☐	CRMT_IPM_MESSAGE_HEADER_ID	SYSUUID_C	CHAR	32	0	Generated message header ID
3	LINE_ID	☐	CRMT_IPM_SEQUENCE_NO	CRM_IPM_SEQUENCE_NO	INT4	10	0	Node/End Node Counter
4	TO_SKIP	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
5	CUST_PREF_CODE	☐	CRMT_IPM_PREF_CODES_TAB		TTYP	0	0
6	.INCLUDE	☐				0	0	IPM: Request Attributes in Availability
7	REQUEST_ID	☐	CRMT_IPM_RAA_REQUEST_ID	CRMT_IPM_RAA_REQUEST_ID	CHAR	20	0	Request ID
8	REQUEST_DESCR	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
9	SCENARIO_ID	☐	CRMT_IPM_RAA_SCENARIO_ID		CHAR	10	0	IPM: Scenario in RAA
10	ANSW_SPEC_ID	☐	CRMT_IPM_RAA_ANSW_SPEC_ID		CHAR	10	0	IPM: Answer Specification ID in RAA
11	PARTNER_NO	☐	CRMT_IPM_PARTNER_NO	BU_PARTNER	CHAR	10	0	IPM: Business Partner	*
12	PARTNER_NAME	☐	CRMT_PARTNER_NAME	TEXT80	CHAR	80	0	Full Name of Business Partner
13	EXECUTED_AT	☐	CRMT_IPM_RAA_EXEC_AT_USR		DEC	15	0	IPM: Execution Time in Availability (in User Time Zone)
14	.INCLUDE	☐				0	0	IPM: Request Edit Information
15	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
16	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
17	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
18	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
19	UPDATE_TYPE	☐	CRMT_IPM_UPDATE_TYPE		CHAR	1	0	IPM: Update Type in RAA
20	BACKGR_EXEC	☐	CRMT_IPM_RAA_BACKGR_EXEC	CRMT_IPM_RAA_BACKGR_EXEC	CHAR	1	0	IPM-RAA: Request scheduled for background execution
21	SCHEDULE_TYPE	☐	CRMT_IPM_RAA_SCHEDULE_TYPE	CRMT_IPM_RAA_SCHEDULE_TYPE	CHAR	1	0	IPM-RAA: Background schedule type
22	SCHEDULE_DATE	☐	BTCSDATE	SYDATS	DATS	8	0	Planned Start Date for Background Job
23	SCHEDULE_TIME	☐	BTCSTIME	SYTIME	TIMS	6	0	Planned start time for background Job
24	JOBNUMB	☐	BTCJOBCNT	CHAR8	CHAR	8	0	Job ID
25	CALC_REQUIRED	☐	CRMT_IPM_RAA_CALC_REQUIRED	CRMT_IPM_RAA_CALC_REQUIRED	CHAR	1	0	IPM-RAA: Request requires calculation
26	.INCLUDE	☐				0	0	Structure for IPMRAARequest Extensibility
27	CRMT_RAAREQ_DUM	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
28	.INCLUDE	☐				0	0	Structure for Print Request
29	PRINT_BACKGR	☐	CRMT_IPM_RAA_BACKGR_EXEC	CRMT_IPM_RAA_BACKGR_EXEC	CHAR	1	0	IPM-RAA: Request scheduled for background execution
30	PRINT_COPIES	☐	SYPRCOP	SYNUM03	NUMC	3	0	Number of Spool Copies
31	PRINT_DEVICE	☐	SYPDEST	RSPOPNAME	CHAR	4	0	Spool Output Device	TSP03
32	PRINT_FORM_NAME	☐	FPNAME	FPNAME	CHAR	30	0	Name of Form Object
33	HB_CREATED	☐	CRMT_IPM_RAA_HB_CREATED__FLAG		CHAR	1	0	Holdback Already Exists Indicator
34	.INCLUDE	☐				0	0	IPM: Requested Properties in RAA
35	CONDENSE_IPS	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
36	.INCLUDE	☐				0	0	IPM: Requested Rights Properties in RAA
37	CONDENSE_DATES	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
38	CONDENSE_RDIM01	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
39	CONDENSE_RDIM02	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
40	CONDENSE_RDIM03	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
41	CONDENSE_RDIM04	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
42	CONDENSE_RDIM05	☐	CRMT_IPM_BOOLEAN		CHAR	1	0	IPM: BOOLEAN
43	PROD_PART_REL	☐	COMT_IL_RELTYPE		CHAR	6	0	Relationship Type
44	PRODUCT_TAB	☐	CRMT_IPM_SE_RAA_PROD_TAB		TTYP	0	0
45	RIGHTS_TAB	☐	CRMT_IPM_SE_RAA_SE_RIGHTS_TAB		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_IPM_SE_RAA_API_IN	PRINT_DEVICE	TSP03	PADEST

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
