SAP ABAP Table CRMT_FS_BP_PRINT_IA (Structure for Interactions)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IFS-MD-BP (Application Component) Business Partner
     ⤷ CRM_BSP_MODEL_IL_FSBP (Package) Model Implementation: FS Business Partner

Basic Data

Table Category	INTTAB	Structure

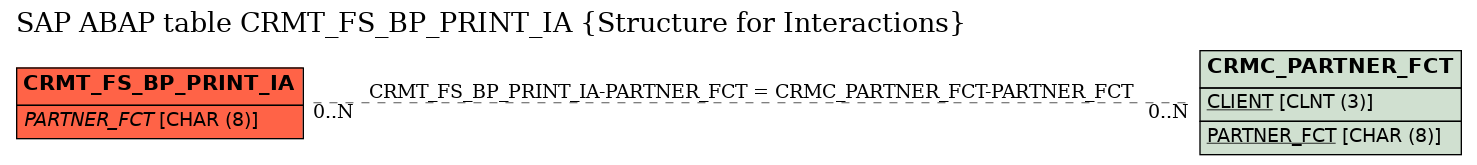

Structure	CRMT_FS_BP_PRINT_IA	Table Relationship Diagram
Short Description	Structure for Interactions

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
2	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
3	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE	CRM_TEMPLATE_TYPE	CHAR	1	0	CRM Transaction: Template Type
4	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
5	SALES_EMPLOYEE	☐	CRMT_SALES_EMPLOYEE	BU_PARTNER	CHAR	10	0	Employee	*
6	PERSON_RESP	☐	CRMT_PERSON_RESP	BU_PARTNER	CHAR	10	0	Employee Responsible	*
7	CONTACT_PERSON	☐	CRMT_CONTACT_PERSON	BU_PARTNER	CHAR	10	0	Customer Contact Person	*
8	SALESPARTNER	☐	CRMT_SALESPARTNER	BU_PARTNER	CHAR	10	0	Sales Partners	*
9	SALES_EMPLOYEE_LIST	☐	CRMT_SALES_EMPLOYEE_LIST	TEXT80	CHAR	80	0	Sales Representative
10	PERSON_RESP_LIST	☐	CRMT_PERSON_RESP_LIST	TEXT80	CHAR	80	0	Employee Responsible
11	CONTACT_PERSON_LIST	☐	CRMT_CONTACT_PERSON_LIST	TEXT80	CHAR	80	0	Contact Person
12	VALID_FROM_TIME	☐	CRMT_BSP_TIME_HHMM_FROM	CRM_BSP_TIME_HHMM	TIMS	6	0	From
13	VALID_TO_TIME	☐	CRMT_BSP_TIME_HHMM_TO	CRM_BSP_TIME_HHMM	TIMS	6	0	To
14	VALID_FROM	☐	CRMT_DATES_START_DATE	DATUM	DATS	8	0	Start Date
15	VALID_TO	☐	CRMT_DATES_END_DATE	DATS	DATS	8	0	End Date
16	CONCATSTAT	☐	J_STEXT	TEXT40	CHAR	40	0	System status line
17	CONCATSTATUSER	☐	CRMT_REPORT_USERSTATUS	TEXT40	CHAR	40	0	User Status
18	OBJECT_TYPE_TXT	☐	SAEOBJTEXT	SADC40	CHAR	40	0	Object text for language-dependent table
19	.INCLUDE	☐				0	0	Output Fields: Activity for CRM_Transaction
20	EXTERN_ACT_ID	☐	CRMT_EXTERNAL_ACTIVITY_ID	CRM_EXTERNAL_ACTIVITY_ID	CHAR	20	0	External Business Transaction Number
21	PRIVATE_FLAG	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
22	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
23	ADDRESS_ID	☐	CRMT_ADDRESS	AD_ADDRNUM	CHAR	10	0	Location where Activity takes place	*
24	ACT_LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
25	CLASS	☐	CRMT_ACTIVITY_CLASS	CRM_ACTIVITY_CLASS	CHAR	1	0	Activity Class
26	CALENDAR	☐	CRMT_CALENDAR	CRM_BOOLEAN	CHAR	1	0	Include Activity in Calendar
27	CATEGORY_TXT	☐	CRMT_REPORT_CATEGORY_TXT	DDTEXT	CHAR	60	0	Texts for Category
28	PRIORITY_TXT	☐	CRMT_REPORT_PRIORITY_TXT	DDTEXT	CHAR	60	0	Text Description for Priority
29	OBJECTIVE_TXT	☐	CRMT_REPORT_OBJECTIVE_TXT	DDTEXT	CHAR	60	0	Text Description for Goal of an Activity
30	DIRECTION_TXT	☐	CRMT_REPORT_DIRECTION_TXT	DDTEXT	CHAR	60	0	Text Description for Direction
31	IO_ICON	☐	CRMT_IO_ICON	ICON	CHAR	4	0	Icon for Interaction Object/Contact	*
32	FROMDATE	☐	CRMT_DATES_START_DATE	DATUM	DATS	8	0	Start Date
33	TODATE	☐	CRMT_DATES_END_DATE	DATS	DATS	8	0	End Date
34	ACT_TOT_DURA	☐	TIMEDURA	TIMEDURA	DEC	13	0	Numerical Value of Duration
35	ACT_TOT_UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	*
36	KATALOGART_ACT	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
37	CODEGRUPPE_ACT	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
38	CODE_ACT	☐	QCODE	QCODE	CHAR	4	0	Code	*
39	SUBJECT_PROF_ACT	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
40	KATALOGART_ACT_ST	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
41	CODEGRUPPE_ACT_ST	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
42	CODE_ACT_ST	☐	QCODE	QCODE	CHAR	4	0	Code	*
43	SUBJECT_PROF_ACT_ST	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
44	SUB_CATGUID_ACT	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
45	.INCLUDE	☐				0	0	All Keys (<> Texts) in the Output List
46	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
47	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	*
48	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	*
49	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
50	TASK	☐	CRMT_TASK	CRM_BOOLEAN	CHAR	1	0	Indicator: Activity is a Task
51	PARTNER_FCT	☐	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function	CRMC_PARTNER_FCT
52	.INCLUDE	☐				0	0	PARTNER (Opportunity/Activity) Data for BW DataSoures
53	COMPETITOR	☐	CRMT_COMPETITOR	BU_PARTNER	CHAR	10	0	Competitors	*
54	PROSPECT	☐	CRMT_PROSPECT	BU_PARTNER	CHAR	10	0	Prospect	*
55	ACTIVITY_PARTNER	☐	CRMT_ACTIVITY_PARTNER	BU_PARTNER	CHAR	10	0	Activity Partner	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_FS_BP_PRINT_IA	PARTNER_FCT	CRMC_PARTNER_FCT	PARTNER_FCT

History

Last changed by/on	SAP	20130604
SAP Release Created in	510
