SAP ABAP Table CRMT_DOC_FLOW_EXTD (CRM document flow: Structure - external data DB and dynamic)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_DOC_FLOW (Package) Document flow

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_DOC_FLOW_EXTD	Table Relationship Diagram
Short Description	CRM document flow: Structure - external data DB and dynamic

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLU-_A	☐				0	0	Identification of Transaction Object
2	OBJKEY_A	☐	CRMT_DOC_FLOW_ID_WRK	SWO_TYPEID	CHAR	70	0	Identification of a Reference Object for Header AND Item
3	OBJTYPE_A	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	TOJTB
4	LOGSYS_A	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	TBDLS
5	.INCLU-_B	☐				0	0	Identification of Transaction Object
6	OBJKEY_B	☐	CRMT_DOC_FLOW_ID_WRK	SWO_TYPEID	CHAR	70	0	Identification of a Reference Object for Header AND Item
7	OBJTYPE_B	☐	SWO_OBJTYP	OJ_NAME	CHAR	10	0	Object Type	TOJTB
8	LOGSYS_B	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	TBDLS
9	VONA_KIND	☐	CRMT_VONA_KIND	CRMT_VONA_KIND	CHAR	1	0	Type of binary relationship types VONA
10	INVALID	☐	CRMT_INVALID	CRM_INVALID	CHAR	1	0	Document Flow: Invalid Assignment
11	SECONDARY	☐	CRMT_SECONDARY	XFELD	CHAR	1	0	Document Flow: Secondary Object
12	SEQNO	☐	CRMT_SEQNO	CRM_SEQNO	NUMC	4	0	CRM: Sequence Number
13	.INCLUDE	☐				0	0	Quantity and Value Fields for Item Interlinkage
14	QUANTITY	☐	CRMT_QUANTITY	CRM_MENGV15	QUAN	15	3	Quantity in Doc.Flow
15	QUANTITY_UNIT	☐	CRMT_QUANTITY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Doc.Flow	*
16	VALUE	☐	CRMT_DOC_FLOW_VALUE	CRM_COND_VALUE	CURR	19	2	Value in Document Flow
17	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
18	DATE	☐	CRMT_DOC_FLOW_DATE	BCOS_TSTMP	DEC	15	0	Date and Time in Document Flow
19	DOC_INFO	☐	CRMT_DOC_FLOW_DOC_INFO		CHAR	1	0	Additional Information About Billing Transaction
20	QTY_DIFFERENCE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
21	STAT	☐	CRMT_STATUS_DOC_FLOW	CRM_STATUS_DOC_FLOW	CHAR	2	0	Status of Time-Dependent Document Linkage	*
22	.INCLUDE	☐				0	0	CRM document flow: Communication structure dynamic part
23	HANDLE_A	☐	CRMT_HANDLE		NUMC	10	0	Handle
24	HANDLE_B	☐	CRMT_HANDLE		NUMC	10	0	Handle
25	BREL_KIND	☐	CRMT_BREL_KIND	CRMT_BREL_KIND	CHAR	1	0	Type of interlinked objects
26	BREL_MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
27	RELTYPE	☐	BINRELTYP	BINRELTYP	CHAR	4	0	Relationship type	*
28	RELATIONID	☐	BINRELID	SYSUUID_22	CHAR	22	0	Object Relationship Service : GUID binary link
29	RELATION_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
30	LOG_KEY	☐	CRMT_HANDLE		NUMC	10	0	Handle
31	PLNK_KIND	☐	CRMT_PLNK_KIND	CRM_PLNK_KIND	CHAR	2	0	Type of Binary Relationships: Pool Linkage Types	*
32	DATE_FROM	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
33	DATE_TO	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
34	PNT_RELTYPE	☐	CRMT_PNT_RELTYPE	CRM_PNT_RELTYPE	CHAR	10	0	Relationship Type	CRMC_PNT_040
35	VOUCHER_CODE	☐	CRM_MKTPL_VOUCHER_CODE	CRM_MKTPL_VOUCHER_CODE	CHAR	30	0	Voucher Code
36	DERIV_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object

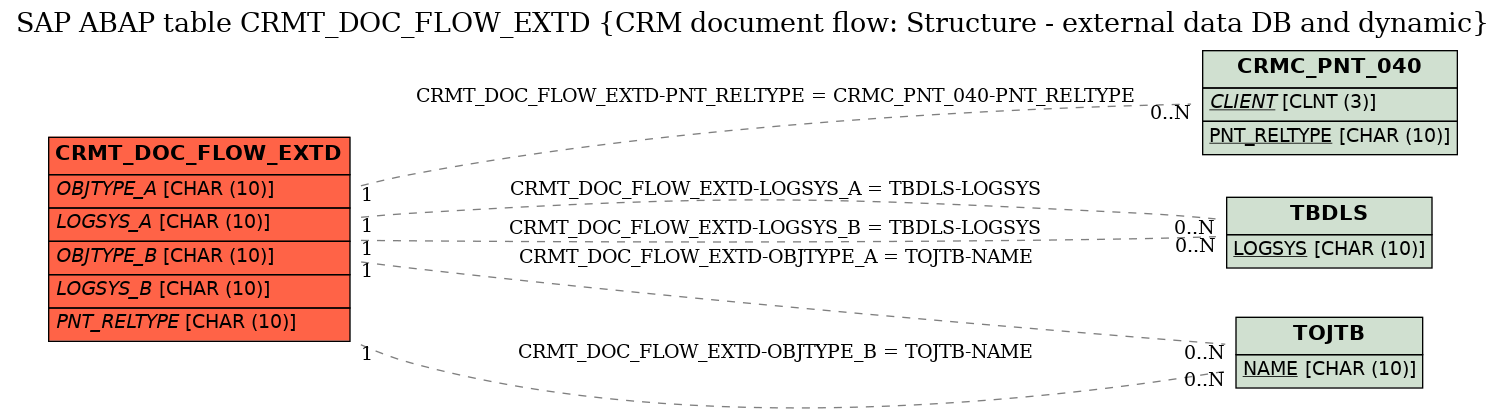

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_DOC_FLOW_EXTD	LOGSYS_A	TBDLS	LOGSYS	KEY	1	CN
2	CRMT_DOC_FLOW_EXTD	LOGSYS_B	TBDLS	LOGSYS	KEY	1	CN
3	CRMT_DOC_FLOW_EXTD	OBJTYPE_A	TOJTB	NAME	KEY	1	CN
4	CRMT_DOC_FLOW_EXTD	OBJTYPE_B	TOJTB	NAME	KEY	1	CN
5	CRMT_DOC_FLOW_EXTD	PNT_RELTYPE	CRMC_PNT_040	PNT_RELTYPE	REF	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	12A
