SAP ABAP Table CRMT_BW_SRV_REQ_INCIDENT_H (BW Extract Structure for CRM Incident - Hdr Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	INTTAB	Structure

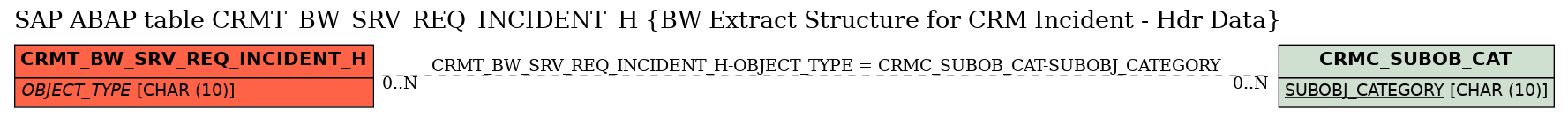

Structure	CRMT_BW_SRV_REQ_INCIDENT_H	Table Relationship Diagram
Short Description	BW Extract Structure for CRM Incident - Hdr Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	ORDERADM_H Data for BW DataSources
2	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
3	GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
4	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
5	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
6	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
7	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
8	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
9	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
10	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Transaction Category	CRMC_SUBOB_CAT
11	CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
12	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
13	CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
14	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
15	RECORDMODE	☐	RODMUPDMOD	RODMUPDMOD	CHAR	1	0	BW Delta Process: Record Mode
16	NUM_OF_HEAD	☐	CRMT_NUMBER_OF_H	INT4	INT4	10	0	Order Header Number
17	OCCURRENCE	☐	CRMT_OCC_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
18	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
19	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
20	OCCURR_QUOT	☐	CRMT_QUO_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
21	OCCURR_CONT	☐	CRMT_CON_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
22	REF_UPDATE	☐	CRMT_FLG_REF_UPDATE_BW	XFELD	CHAR	1	0	Flag: Ref. Update (Extract Structure Only Partially Filled)
23	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
24	CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
25	CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
26	.INCLUDE	☐				0	0	Service Request Header Data for BW Data Sources
27	REC_PRIORITY	☐	CRMT_SRQM_REC_PRIORITY	SC_PRIO	NUMC	1	0	Recommended Priority	*
28	URGENCY	☐	CRMT_SRQM_URGENCY	CRM_SRQM_URGENCY	NUMC	2	0	Urgency	*
29	IMPACT	☐	CRMT_SRQM_IMPACT	CRM_SRQM_IMPACT	NUMC	2	0	Impact	*
30	ESCALATION	☐	CRMT_SRQM_ESCALATION	CRM_SRQM_ESCALATION	NUMC	1	0	Escalation
31	CHANGE_CATEGORY	☐	CRMT_SRQM_CHANGE_CAT	CRM_SRQM_CHANGE_CAT	CHAR	3	0	Change Category	*
32	RISK	☐	CRMT_SRQM_RISK	CRM_SRQM_RISK	NUMC	3	0	Risk	*
33	PROBLEM_CATEGORY	☐	CRMT_SRQM_PROBLEM_CATEGORY	CRM_SRQM_PROBLEM_CATEGORY	CHAR	3	0	Problem Category	*
34	LAST_UPDATED_AT	☐	CRMT_SRQM_LAST_UPDATED_AT	COM_TSTMP	DEC	15	0	Last Updated On
35	.INCLUDE	☐				0	0	Activities Header Data for BW Data Sources
36	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
37	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	*
38	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	*
39	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
40	.INCLUDE	☐				0	0	PARTNER (Sales) Data for BW DataSources
41	SOLD_TO_PARTY	☐	CRMT_SOLD_TO_PART	BU_PARTNER	CHAR	10	0	Sold-To Party	*
42	SHIP_TO_PARTY	☐	CRMT_SHIP_TO_PART	BU_PARTNER	CHAR	10	0	Ship-To Party	*
43	BILL_TO_PARTY	☐	CRMT_BILL_TO_PART	BU_PARTNER	CHAR	10	0	Bill-To Party	*
44	PAYER	☐	CRMT_RP_PAYER	BU_PARTNER	CHAR	10	0	Payer	*
45	SOLD_FROM	☐	CRMT_SOLD_FROM_PARTY_ID	BU_PARTNER	CHAR	10	0	Salesperson ID	*
46	.INCLUDE	☐				0	0	PARTNER (General) Data for BW DataSoures
47	SALES_EMPLOYEE	☐	CRMT_SALES_EMPLOYEE	BU_PARTNER	CHAR	10	0	Employee	*
48	PERSON_RESP	☐	CRMT_PERSON_RESP	BU_PARTNER	CHAR	10	0	Employee Responsible	*
49	CONTACT_PERSON	☐	CRMT_CONTACT_PERSON	BU_PARTNER	CHAR	10	0	Customer Contact Person	*
50	SALESPARTNER	☐	CRMT_SALESPARTNER	BU_PARTNER	CHAR	10	0	Sales Partners	*
51	RESP_GROUP_RFW	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
52	PLANNING_ACCOUNT	☐	CRMT_PLANNING_ACCOUNT	BU_PARTNER	CHAR	10	0	Planning Account	*
53	.INCLUDE	☐				0	0	PARTNER (Call Center) Data for BW Datasoures
54	EXECUTING_CC	☐	CRMT_EXECUTING_CC	BU_PARTNER	CHAR	10	0	Executing Interaction Center	*
55	RESP_GROUP	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
56	.INCLUDE	☐				0	0	ORGMAN Data for BW DataSources
57	SALES_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
58	SALES_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
59	SALES_OFFICE	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
60	SALES_GROUP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
61	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
62	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
63	SERVICE_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
64	SERVICE_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
65	PURCH_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
66	PURCH_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
67	PURCH_GROUP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
68	IC_BD_CCODE	☐	CRM_IC_BD_CCODE	BUKRS	CHAR	4	0	Company Code for a Business Transaction	*
69	IC_BD_LOGSYS	☐	CRM_IC_BD_LOGSYS	LOGSYS	CHAR	10	0	Logical System for a Business Transaction	*
70	.INCLUDE	☐				0	0	Service Partner for BW Extraction
71	SERVICE_TEAM	☐	CRMT_SERVICE_TEAM	BU_PARTNER	CHAR	10	0	Service Team	*
72	SERVICE_EMPLOYEE	☐	CRMT_SERVICE_EMPLOYEE	BU_PARTNER	CHAR	10	0	Executing Service Employee	*
73	.INCLUDE	☐				0	0	Time Characteristics for BW Reporting
74	CALDAY	☐	SMOCALDAY	DATUM	DATS	8	0	Calendar Day
75	CALDAY_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
76	.INCLUDE	☐				0	0	DOC_FLOW Data for BW DataSources
77	PREDEC_OBJKEY	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
78	PREDEC_OBJTYPE	☐	CRMT_PRED_OBJECT_TYPE	OJ_NAME	CHAR	10	0	Object Type of a Preceding Document	*
79	LOGSYS_PRED	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
80	MKT_ELEMENT	☐	CRM_MKTPL_MKT_PLAN_TASKID	CGPL_EXTID	CHAR	24	0	Marketing Plan Element
81	PRED_LEAD_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
82	LEAD_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
83	PRED_OPPT_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
84	OPPT_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
85	PRED_ACT_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
86	ACT_CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
87	ACT_DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
88	QUOTATION_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
89	QUOT_VALID_FROM	☐	CRMT_VALID_FROM_DATE	CRM_RPRTNG_DATE	DATS	8	0	Quotation Valid from Date
90	PROCESS_CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	*
91	PROCESS_CATALOG	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
92	PROCESS_CODEGR	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
93	PROCESS_CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
94	PROCESS_OBJTYPE	☐	CRMT_PRED_OBJECT_TYPE	OJ_NAME	CHAR	10	0	Object Type of a Preceding Document	*
95	PO_NUMBER	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
96	PO_ITEM_NUMBER	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
97	LEAD_CREATED_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
98	OPPT_CREATED_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
99	QUOT_VALID_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
100	.INCLUDE	☐				0	0	SRV_SUBJECT Data for BW Extraction
101	CATALOG_TYPE_C	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
102	KATALOGART_C	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
103	CODEGRUPPE_C	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
104	CODE_C	☐	QCODE	QCODE	CHAR	4	0	Code	*
105	DEFECTCLASS_C	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
106	QUALITY_C	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
107	DEFQUANTITY_C	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
108	COUNTER_C	☐	CRMT_NOACT	NUMC1	NUMC	1	0	Number of Activities (always 1)
109	ASP_ID_C	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
110	CAT_ID_C	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
111	CC_CAT_SUBJECT_C	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
112	CATALOG_TYPE_D	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
113	KATALOGART_D	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
114	CODEGRUPPE_D	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
115	CODE_D	☐	QCODE	QCODE	CHAR	4	0	Code	*
116	DEFECTCLASS_D	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
117	QUALITY_D	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
118	DEFQUANTITY_D	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
119	COUNTER_D	☐	CRMT_NOACT	NUMC1	NUMC	1	0	Number of Activities (always 1)
120	ASP_ID_D	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
121	CAT_ID_D	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
122	CC_CAT_SUBJECT_D	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
123	CATALOG_TYPE_E	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
124	KATALOGART_E	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
125	CODEGRUPPE_E	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
126	CODE_E	☐	QCODE	QCODE	CHAR	4	0	Code	*
127	DEFECTCLASS_E	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
128	QUALITY_E	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
129	DEFQUANTITY_E	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
130	COUNTER_E	☐	CRMT_NOACT	NUMC1	NUMC	1	0	Number of Activities (always 1)
131	ASP_ID_E	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
132	CAT_ID_E	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
133	CC_CAT_SUBJECT_E	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
134	CATALOG_TYPE_T	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
135	KATALOGART_T	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
136	CODEGRUPPE_T	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
137	CODE_T	☐	QCODE	QCODE	CHAR	4	0	Code	*
138	DEFECTCLASS_T	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
139	QUALITY_T	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
140	DEFQUANTITY_T	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
141	COUNTER_T	☐	CRMT_NOACT	NUMC1	NUMC	1	0	Number of Activities (always 1)
142	ASP_ID_T	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
143	CAT_ID_T	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
144	CC_CAT_SUBJECT_T	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
145	CATALOG_TYPE_W	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
146	KATALOGART_W	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
147	CODEGRUPPE_W	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
148	CODE_W	☐	QCODE	QCODE	CHAR	4	0	Code	*
149	DEFECTCLASS_W	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
150	QUALITY_W	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
151	DEFQUANTITY_W	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
152	COUNTER_W	☐	CRMT_NOACT	NUMC1	NUMC	1	0	Number of Activities (always 1)
153	ASP_ID_W	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
154	CAT_ID_W	☐	CRM_ERMS_CAT_AS_ID	CRM_ERMS_CAT_AS_ID_DO	CHAR	40	0	Coherent Cat. - Aspect ID
155	CC_CAT_SUBJECT_W	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
156	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
157	CC_CAT_SUBJECT	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
158	.INCLUDE	☐				0	0	STATUS GROUPS Data for BW Datasources
159	BWSTONESYS0	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
160	BWSTONESYS1	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
161	BWSTONESYS2	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
162	BWSTONESYS3	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
163	BWSTONESYS4	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
164	BWSTONESYS5	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
165	BWSTONESYS6	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
166	BWSTONESYS7	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
167	BWSTONESYS8	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
168	BWSTONESYS9	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
169	BWSTONESYSA	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
170	BWSTTECSYS0	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
171	BWSTTECSYS1	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
172	BWSTTECSYS2	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
173	BWSTLOCSYS0	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
174	BWSTLOCSYS1	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
175	BWSTLOCSYS2	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
176	BWSTONESYSB	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
177	BWSTONESYSC	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
178	.INCLUDE	☐				0	0	REFOBJ Data for BW DataSources
179	GUID_OBJECT	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
180	GUID_OBJ_OBJFAM	☐	COMT_PRODUCT_OBJECT_FAMILY	COM_PRODUCT_OBJECT_FAMILY	CHAR	4	0	Object Family	*
181	BOSS_OBJTYP	☐	CRMT_TYPE_OBJECT	TYPE_OBJECT	CHAR	1	0	Object Type for Reference Object in Subject Set
182	BOSS_IOBJ_GUID	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
183	BOSS_IOBJ_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
184	BOSS_CFPRD_GUID	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
185	BOSS_CFPRD_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
186	BOSS_PROD_GUID	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
187	BOSS_PROD_ID	☐	COMT_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Product ID
188	.INCLUDE	☐				0	0	Additional Service-Specific Data for BW DataSources
189	KF_SRV_RREADY	☐	CRMT_BW_SRV_DATES	CRMT_BW_SRV_DATES	INT1	3	0	Data Element for Service - Date Key Figures
190	KF_SRV_CUST_END	☐	CRMT_BW_SRV_DATES	CRMT_BW_SRV_DATES	INT1	3	0	Data Element for Service - Date Key Figures
191	CHA_SRV_RREADY	☐	CHA_SRV_RREADY	CRMT_BW_SRV_CHA_DATES	CHAR	1	0	Data Element for Service-Date Characteristic SLA Date
192	CHA_SRV_CUST_END	☐	CHA_SRV_CUST_END	CRMT_BW_SRV_CHA_DATES	CHAR	1	0	Data Element for Service-Date Char. :Date Requested by Cust.
193	PLAN_FLAG	☐	CRMT_BW_PLAN_FLAG	CRMT_BW_PLAN_FLAG	CHAR	2	0	Planning Indicator
194	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
195	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
196	AC_INDICATOR	☐	CRMT_AC_INDICATOR	CRMT_AC_INDICATOR	CHAR	2	0	Accounting Indicator	*
197	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	*
198	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	*
199	SRV_ESCAL	☐	CRMT_SRV_ESCAL	CRM_SRV_ESCAL	CHAR	10	0	Response Profile	*
200	SRV_SERWI	☐	CRMT_SRV_SERWI	CRM_SRV_SERWI	CHAR	10	0	Service Profile	*
201	DURATION	☐	CRMT_SRV_DURATION	MENG13	QUAN	13	3	Duration
202	DURATION_UNIT	☐	CRMT_SRV_DURATION_UOM	MEINS	UNIT	3	0	Unit for Duration of Work	*
203	PERSONS	☐	CRMT_SRV_PERSONS	NUMC3	NUMC	3	0	Number of Persons
204	STATUS_OPEN_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
205	STATUS_IP_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
206	STATUS_RE_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
207	STATUS_CO_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
208	LC_SRV_DURATION	☐	CRMT_BW_LIFECYCLE	CRMT_DAUER_10_3	QUAN	10	3	CRM Service: Lifecycle (Duration)
209	LC_SRV_DUR_UNIT	☐	CRMT_BW_LIFECYCLE_UNIT	MEINS	UNIT	3	0	CRM Service Lifecycle Unit (Duration)	*
210	BILL_RELEVANT	☐	CRMT_BILLING_RELEVANT	CRM_BILLING_RELEVANT	CHAR	1	0	Billing Relevance
211	WARRANTY	☐	CRMT_PRODUCT_GUID_32	SYSUUID_C	CHAR	32	0	GUID for Product CHAR32
212	WARRANTY_ID	☐	CRMT_WTY_PRODUCT_ID	COM_PRODUCT_ID	CHAR	40	0	Warranty ID
213	PRED_PSL_OBJKEY	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
214	PRED_TMPL_OBJKEY	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
215	CONTR_OBJ_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
216	.INCLUDE	☐				0	0	Specific Service Process Header Fields for BW DataSource
217	BWSTONESVTK	☐	CRMBWST	J_STONR	NUMC	2	0	BW Status
218	.INCLUDE	☐				0	0	Additional Service-Specific Dates for BW DataSources
219	ESCALATE_1_DATE	☐	CRMT_BW_ESCALATION_1_DATE	CRM_RPRTNG_DATE	DATS	8	0	Escalation Date Level 1
220	ESCALATE_2_DATE	☐	CRMT_BW_ESCALATION_2_DATE	CRM_RPRTNG_DATE	DATS	8	0	Escalation Date Level 2
221	WORK_DURATION	☐	CRMT_BW_DURATION	TIMEDURA	DEC	13	0	Duration of Contract/Quotation
222	WORK_DURA_UNIT	☐	CRMT_BW_DURA_UNIT	TIMEUNITNA	CHAR	12	0	Time Unit for Duration of Contract/Quotation in Days	*
223	TOTAL_DURATION	☐	CRMT_BW_DURATION	TIMEDURA	DEC	13	0	Duration of Contract/Quotation
224	TOTAL_DURA_UNIT	☐	CRMT_BW_DURA_UNIT	TIMEUNITNA	CHAR	12	0	Time Unit for Duration of Contract/Quotation in Days	*
225	REQ_START_DATE	☐	CRMT_BW_REQ_START_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Requested Start Date/Time
226	REQ_END_DATE	☐	CRMT_BW_REQ_END_DATE	BCOS_TSTMP	DEC	15	0	Time Stamp: Requested End Date/Time
227	COMPLETION_DATE	☐	CRMT_BW_CLOSE_DATE	CRM_RPRTNG_DATE	DATS	8	0	Closing Date
228	DUE_DATE	☐	CRMT_BW_DUE_DATE	BCOS_TSTMP	DEC	15	0	Timestamp: Due Date/Time
229	COMPLETION_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
230	ESCALATE_1_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
231	ESCALATE_2_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
232	CC_CAT_ACTREASON	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
233	NO_OF_IR	☐	CRMT_NO_OF_IR		INT4	10	0	Number of Interaction Records
234	IN_COMPL_BEFORE	☐	CRMT_SRV_REQ_STAT_COMP_BEFORE		INT4	10	0	Status Is In Process but Was Previously Completed
235	PROBLEM_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BW_SRV_REQ_INCIDENT_H	OBJECT_TYPE	CRMC_SUBOB_CAT	SUBOBJ_CATEGORY

History

Last changed by/on	SAP	20130604
SAP Release Created in	700
