SAP ABAP Table CRMT_BW_SERVICE_CODES (Extract Structure for "Codes" from Service Scenarios)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-ANA-RFW (Application Component) Reporting Framework
     ⤷ CRM_REPORT (Package) Operative Reporting in CRM

Basic Data

Table Category	INTTAB	Structure

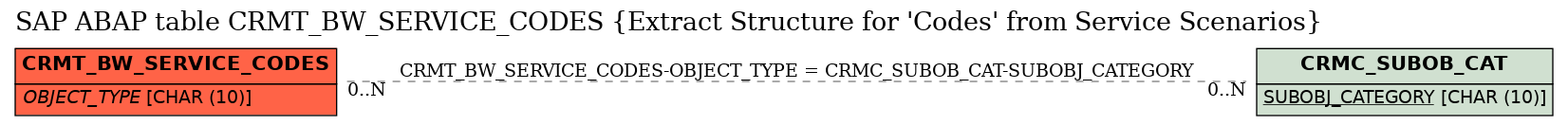

Structure	CRMT_BW_SERVICE_CODES	Table Relationship Diagram
Short Description	Extract Structure for "Codes" from Service Scenarios

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	SRV_SUBJECT Data for BW Extraction
2	CATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
3	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	*
4	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	*
5	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	*
6	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	*
7	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
8	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
9	SUBJECT_PROFILE	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
10	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
11	.INCLUDE	☐				0	0	ORDERADM_H Data for BW DataSources
12	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
13	GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
14	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
15	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
16	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
17	DESCRIPTION_UC	☐	CRMT_PROCESS_DESCRIPTION_UC	CRM_PROCESS_DESCRIPTION_UC	CHAR	40	0	Transaction Description (Upper Case)
18	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
19	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
20	OBJECT_TYPE	☐	CRMT_SUBOBJECT_CATEGORY	CRM_OJ_NAME_PROCESS	CHAR	10	0	Business Transaction Category	CRMC_SUBOB_CAT
21	CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
22	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
23	CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
24	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
25	RECORDMODE	☐	RODMUPDMOD	RODMUPDMOD	CHAR	1	0	BW Delta Process: Record Mode
26	NUM_OF_HEAD	☐	CRMT_NUMBER_OF_H	INT4	INT4	10	0	Order Header Number
27	OCCURRENCE	☐	CRMT_OCC_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
28	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
29	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
30	OCCURR_QUOT	☐	CRMT_QUO_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
31	OCCURR_CONT	☐	CRMT_CON_AT_LEAST_ONCE	CRM_BOOLEAN	CHAR	1	0	Counter: Document Cat. Appears at Least Once in Document
32	REF_UPDATE	☐	CRMT_FLG_REF_UPDATE_BW	XFELD	CHAR	1	0	Flag: Ref. Update (Extract Structure Only Partially Filled)
33	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
34	CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
35	CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
36	.INCLUDE	☐				0	0	ORDERADM_I Data for BW DataSources
37	ITEM_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
38	ITEM_CREATED_AT	☐	CRMT_OPPT_CREATED_AT	DATUM	DATS	8	0	Transaction Was Created at This Time
39	ITEM_CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
40	ITEM_CHANGED_AT	☐	CRMT_OPPT_CHANGED_AT	DATUM	DATS	8	0	Time of Last Change to the Transaction
41	ITEM_CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
42	ORDER_DATE	☐	CRMT_OPPT_ORDER_DATE	DATUM	DATS	8	0	Posting Date
43	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
44	ITEM_OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
45	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
46	NUMBER_OF_I	☐	CRMT_NUMBER_OF_I	INT4	INT4	10	0	Order Item Number
47	BW_ASSIGN	☐	CRMT_BW_ASSIGN	CRMT_BW_ASSIGN	CHAR	1	0	Assign BW and CO
48	ITM_USAGE	☐	CRMT_ITEM_USAGE	CRM_ITEM_USAGE	CHAR	2	0	Usage of Higher-Level Item
49	ITM_TYPE_USAGE	☐	CRMT_IT_TYPE_USAGE	CRM_IT_TYPE_USAGE	CHAR	4	0	Item Category Usage	*
50	ALTERNATIVE	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
51	PARENT	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
52	ITM_BP	☐	CRM_ISU_PARTNER_NO	CRM_ISU_PARTNER_NO	CHAR	10	0	Partner Number
53	ITEM_CREATED_TS	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
54	ITEM_CHANGED_TS	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
55	ORDER_DATE_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
56	.INCLUDE	☐				0	0	Time Characteristics for BW Reporting
57	CALDAY	☐	SMOCALDAY	DATUM	DATS	8	0	Calendar Day
58	CALDAY_TS	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
59	.INCLUDE	☐				0	0	ORGMAN Data for BW DataSources
60	SALES_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
61	SALES_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
62	SALES_OFFICE	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
63	SALES_GROUP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
64	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
65	DIVISION	☐	CRMT_DIVISION	CRM_DIVISION	CHAR	2	0	Division	*
66	SERVICE_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
67	SERVICE_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
68	PURCH_ORG_RESP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
69	PURCH_ORG	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
70	PURCH_GROUP	☐	OBJEKTID	NUM08	NUMC	8	0	Object ID
71	IC_BD_CCODE	☐	CRM_IC_BD_CCODE	BUKRS	CHAR	4	0	Company Code for a Business Transaction	*
72	IC_BD_LOGSYS	☐	CRM_IC_BD_LOGSYS	LOGSYS	CHAR	10	0	Logical System for a Business Transaction	*
73	.INCLUDE	☐				0	0	PARTNER (Sales) Data for BW DataSources
74	SOLD_TO_PARTY	☐	CRMT_SOLD_TO_PART	BU_PARTNER	CHAR	10	0	Sold-To Party	*
75	SHIP_TO_PARTY	☐	CRMT_SHIP_TO_PART	BU_PARTNER	CHAR	10	0	Ship-To Party	*
76	BILL_TO_PARTY	☐	CRMT_BILL_TO_PART	BU_PARTNER	CHAR	10	0	Bill-To Party	*
77	PAYER	☐	CRMT_RP_PAYER	BU_PARTNER	CHAR	10	0	Payer	*
78	SOLD_FROM	☐	CRMT_SOLD_FROM_PARTY_ID	BU_PARTNER	CHAR	10	0	Salesperson ID	*
79	.INCLUDE	☐				0	0	PARTNER (General) Data for BW DataSoures
80	SALES_EMPLOYEE	☐	CRMT_SALES_EMPLOYEE	BU_PARTNER	CHAR	10	0	Employee	*
81	PERSON_RESP	☐	CRMT_PERSON_RESP	BU_PARTNER	CHAR	10	0	Employee Responsible	*
82	CONTACT_PERSON	☐	CRMT_CONTACT_PERSON	BU_PARTNER	CHAR	10	0	Customer Contact Person	*
83	SALESPARTNER	☐	CRMT_SALESPARTNER	BU_PARTNER	CHAR	10	0	Sales Partners	*
84	RESP_GROUP_RFW	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
85	PLANNING_ACCOUNT	☐	CRMT_PLANNING_ACCOUNT	BU_PARTNER	CHAR	10	0	Planning Account	*
86	.INCLUDE	☐				0	0	PARTNER (Call Center) Data for BW Datasoures
87	EXECUTING_CC	☐	CRMT_EXECUTING_CC	BU_PARTNER	CHAR	10	0	Executing Interaction Center	*
88	RESP_GROUP	☐	CRMT_RESPONSIBLE_GROUP	BU_PARTNER	CHAR	10	0	Responsible Group	*
89	.INCLUDE	☐				0	0	Service Partner for BW Extraction
90	SERVICE_TEAM	☐	CRMT_SERVICE_TEAM	BU_PARTNER	CHAR	10	0	Service Team	*
91	SERVICE_EMPLOYEE	☐	CRMT_SERVICE_EMPLOYEE	BU_PARTNER	CHAR	10	0	Executing Service Employee	*
92	STATUS_OPEN_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
93	STATUS_IP_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
94	STATUS_RE_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
95	STATUS_CO_SRV	☐	CRMT_BW_STATUS_ASSIGN	CRMT_BW_STATUS_ASSIGN	INT1	3	0	Status Identifier
96	COUNTER_CODE	☐	CRMT_NOACT	NUMC1	NUMC	1	0	Number of Activities (always 1)
97	SUBJECT_GUID	☐	CRMT_PROCESS_GUID_32	SYSUUID_C	CHAR	32	0	GUID for a Transaction
98	CC_CAT_SUBJECT	☐	CRM_ERMS_CAT_GUID	SYSUUID	RAW	16	0	Multilevel Cat. - GUID Data Element
99	CHANGED_AT_TS	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BW_SERVICE_CODES	OBJECT_TYPE	CRMC_SUBOB_CAT	SUBOBJ_CATEGORY

History

Last changed by/on	SAP	20130604
SAP Release Created in	30A
