SAP ABAP Table CRMT_BSP_UBB_D_BILLPLAN2_OJ (Billing Plan Data)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

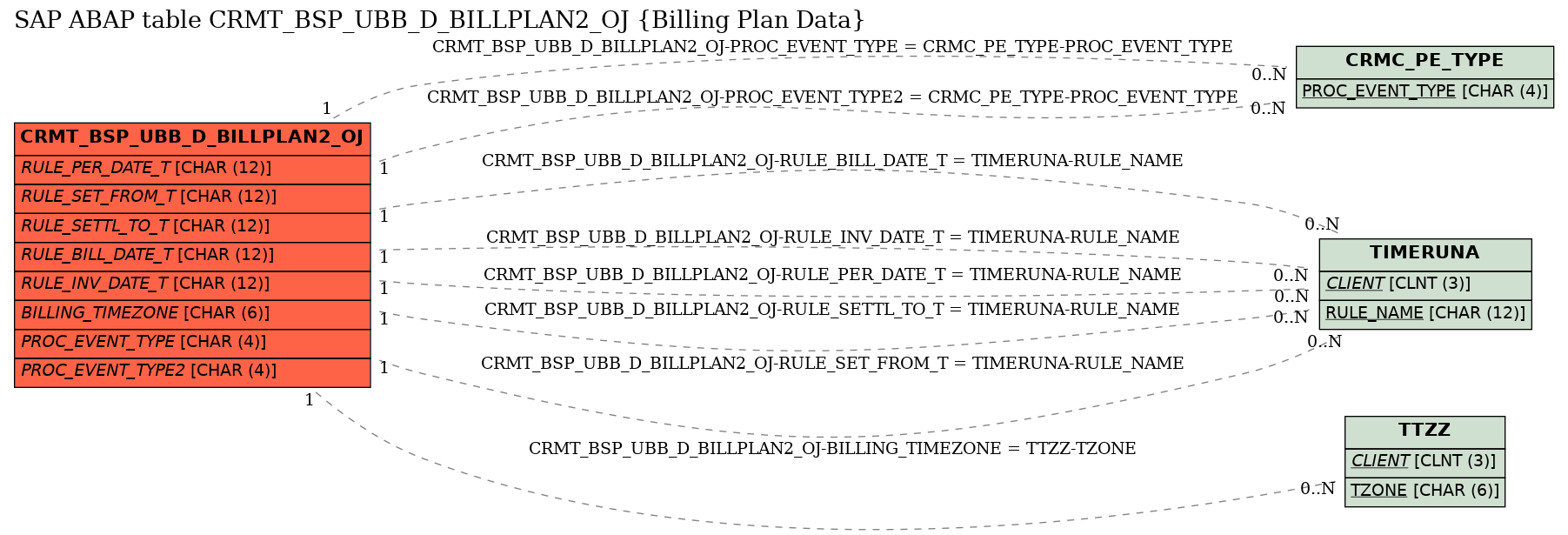

Structure	CRMT_BSP_UBB_D_BILLPLAN2_OJ	Table Relationship Diagram
Short Description	Billing Plan Data

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Billing Plan Date on the User Interface
2	.INCLUDE	☐				0	0	Management of Interface Structures
3	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
5	BILLPLAN_MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
6	SETTL_FROM_TZTF	☐	CRMT_SETTL_FROM_TZTF	TZTF_IO_FIELD	CHAR	26	0	Start of Settlement for Period (Interface)
7	SETTL_TO_TZTF	☐	CRMT_SETTL_TO_TZTF	TZTF_IO_FIELD	CHAR	26	0	End of Settlement for Period (Interface)
8	BILL_DATE_TZTF	☐	CRMT_BILL_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Billing Date for Billing Index and Printout
9	INVCR_DATE_TZTF	☐	CRMT_INVCR_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Billing Document Creation Date
10	PERIOD_DATE	☐	CRMT_PERIOD_DATE	BCOS_TSTMP	DEC	15	0	Period Date
11	RULE_PER_DATE_TEXT	☐	CRMT_RULE_PERIOD_DATE_TEXT	TIMERUTEXT	CHAR	50	0	Rule for Determining the Period Date
12	RULE_PER_DATE_T	☐	CRMT_RULE_PERIOD_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Period Date	TIMERUNA
13	SETTL_FROM	☐	CRMT_SETTL_FROM	BCOS_TSTMP	DEC	15	0	Start of Settlement for Period
14	RULE_SET_FROM_T	☐	CRMT_RULE_SETTL_FROM_T	TIMENAME	CHAR	12	0	Rule for Determining Start of Settlement Period	TIMERUNA
15	SETTL_TO	☐	CRMT_SETTL_TO	BCOS_TSTMP	DEC	15	0	End of Settlement for Period
16	RULE_SETTL_TO_T	☐	CRMT_RULE_SETTL_TO_T	TIMENAME	CHAR	12	0	Rule for Determining End of Settlement Period	TIMERUNA
17	BILL_DATE	☐	CRMT_BILL_DATE	BCOS_TSTMP	DEC	15	0	Billing Date for Billing Index and Printout
18	RULE_BILL_DATE_TEXT	☐	CRMT_RULE_BILL_DATE_TEXT	TIMERUTEXT	CHAR	50	0	Rule for Determining the Next Billing Date
19	RULE_BILL_DATE_T	☐	CRMT_RULE_BILL_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Next Billing Date	TIMERUNA
20	INVCR_DATE	☐	CRMT_INVCR_DATE	BCOS_TSTMP	DEC	15	0	Billing Document Creation Date
21	RULE_INV_DATE_TEXT	☐	CRMT_RULE_INVCR_DATE_TEXT	TIMERUTEXT	CHAR	50	0	Rule for Determining Next Billing Document Creation Date
22	RULE_INV_DATE_T	☐	CRMT_RULE_INVCR_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Next Billing Document Creation Date	TIMERUNA
23	BILLING_TIMEZONE	☐	CRMT_BILLING_TIMEZONE	TZNZONE	CHAR	6	0	Time Zone of Billing Plan Set	TTZZ
24	PERCENTAGE	☐	CRMT_BILL_PERCENTAGE	DEC3_2	DEC	5	2	Percentage of Value to be Billed
25	BILL_VALUE	☐	CRMT_BILL_VALUE	CRM_COND_VALUE	CURR	19	2	Value to be Billed on Date Specified in Billing Plan
26	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
27	NO_OF_PERIODS	☐	CRMT_NO_OF_PERIODS		NUMC	5	0	Number of Periods in Billing Plan
28	NUMBER_INT	☐	CRMT_BILL_NUMBER_INT		NUMC	10	0	Billing Plan: Internal Sort Order
29	BP_USAGE	☐	CRMT_BP_USAGE	CRMT_BP_USAGE	CHAR	1	0	Billing Plan Usage
30	BILLPLAN_LINE_ID	☐	CRMT_BILLPLAN_LINE_ID	CRMT_BILLPLAN_LINE_ID	CHAR	2	0	ID of Billing Plan Line
31	NUMBER_EXT	☐	CRMT_ITEM_NO_EXT		NUMC	10	0	External Item Number
32	START_DATE	☐	CRMT_START_DATE	BCOS_TSTMP	DEC	15	0	Start Date of Billing Plan
33	RULE_START_DATE	☐	CRMT_RULE_START_DATE	TIMERULEID	RAW	16	0	Rule for Determining Billing Plan Start Date	*
34	END_DATE	☐	CRMT_END_DATE	BCOS_TSTMP	DEC	15	0	End Date of Billing Plan
35	RULE_END_DATE	☐	CRMT_RULE_END_DATE	TIMERULEID	RAW	16	0	Rule for Determining Billing Plan End Date	*
36	DATE_FROM	☐	CRMT_DATE_FROM	BCOS_TSTMP	DEC	15	0	Dates From
37	RULE_DATE_FROM	☐	CRMT_RULE_DATE_FROM	TIMERULEID	RAW	16	0	Rule for Determining Dates from	*
38	DATE_TO	☐	CRMT_DATE_TO	BCOS_TSTMP	DEC	15	0	Dates To
39	RULE_DATE_TO	☐	CRMT_RULE_DATE_TO	TIMERULEID	RAW	16	0	Rule for Determining Dates To	*
40	RULE_STA_DATE_T	☐	CRMT_RULE_START_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Billing Plan Start Date
41	RULE_END_DATE_T	☐	CRMT_RULE_END_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Billing Plan End Date
42	RULE_DATE_FROM_T	☐	CRMT_RULE_DATE_FROM_T	TIMENAME	CHAR	12	0	Rule for determining dates from
43	RULE_DATE_TO_T	☐	CRMT_RULE_DATE_TO_T	TIMENAME	CHAR	12	0	Rule for Determining Dates to
44	.INCLUDE	☐				0	0	External UBB Fields for a Billing Plan Date
45	BPLAN_DATE_TYPE	☐	CRMT_BILLPLAN_DATE_TYPE	CRM_BILLPLAN_DATE_TYPE	NUMC	2	0	UBB Billing Plan Date Type
46	NO_OF_BLOCK	☐	CRMT_NO_OF_BLOCK		NUMC	3	0	UBB Pool Assignment
47	PROC_EVENT_TYPE	☐	CRMT_PROCESS_EVENT_TYPE	CRM_PROCESS_EVENT_TYPE	CHAR	4	0	UBB Process Event Type	CRMC_PE_TYPE
48	PROC_EVENT_TYPE2	☐	CRMT_PROCESS_EVENT_TYPE	CRM_PROCESS_EVENT_TYPE	CHAR	4	0	UBB Process Event Type	CRMC_PE_TYPE
49	RULE_PER_ORIG_T	☐	CRMT_RULE_PERIOD_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Period Date
50	BP_SUBTYPE	☐	CRMT_BP_SUBTYPE	CRMT_BP_SUBTYPE	CHAR	1	0	Billing Plan Subtype	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_UBB_D_BILLPLAN2_OJ	BILLING_TIMEZONE	TTZZ	TZONE	KEY	1	CN
2	CRMT_BSP_UBB_D_BILLPLAN2_OJ	PROC_EVENT_TYPE	CRMC_PE_TYPE	PROC_EVENT_TYPE	KEY	1	CN
3	CRMT_BSP_UBB_D_BILLPLAN2_OJ	PROC_EVENT_TYPE2	CRMC_PE_TYPE	PROC_EVENT_TYPE	KEY	1	CN
4	CRMT_BSP_UBB_D_BILLPLAN2_OJ	RULE_BILL_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
5	CRMT_BSP_UBB_D_BILLPLAN2_OJ	RULE_INV_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
6	CRMT_BSP_UBB_D_BILLPLAN2_OJ	RULE_PER_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
7	CRMT_BSP_UBB_D_BILLPLAN2_OJ	RULE_SETTL_TO_T	TIMERUNA	RULE_NAME	REF	1	CN
8	CRMT_BSP_UBB_D_BILLPLAN2_OJ	RULE_SET_FROM_T	TIMERUNA	RULE_NAME	REF	1	CN

History

Last changed by/on	SAP	20110908
SAP Release Created in	500
