SAP ABAP Table CRMT_BSP_SUR_ALL_DATES_OJ (Service Order: Dates)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

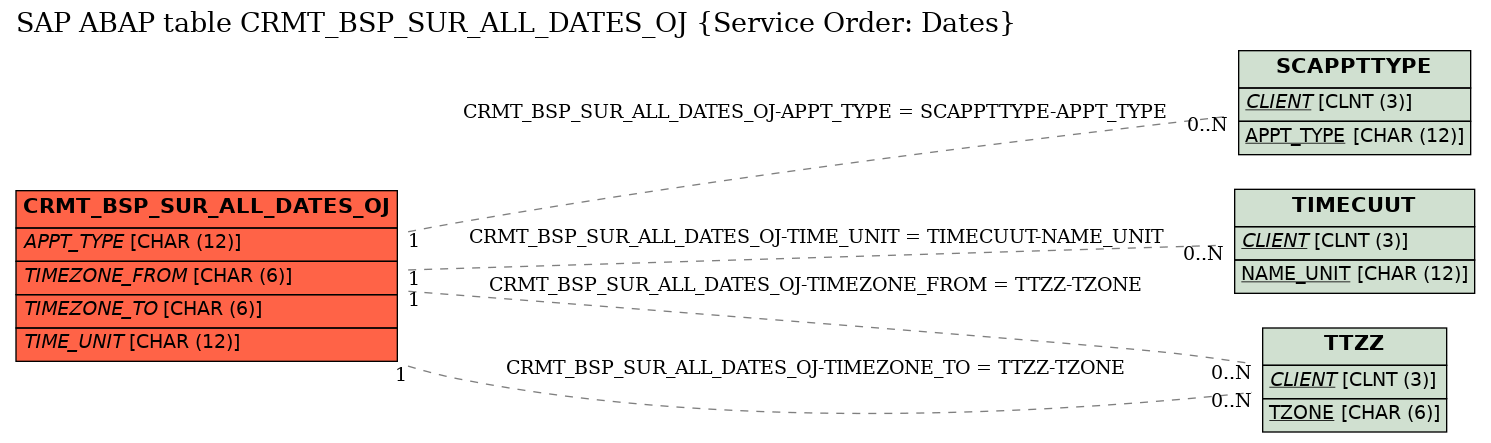

Structure	CRMT_BSP_SUR_ALL_DATES_OJ	Table Relationship Diagram
Short Description	Service Order: Dates

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	APPT_TYPE	☐	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	SCAPPTTYPE
2	APPT_TEXT	☐	SC_TXT	TEXT40	CHAR	40	0	Description
3	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
4	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	TTZZ
5	TIME_OUT_FROM	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
6	TIMESTAMP_TO	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
7	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	TTZZ
8	TIME_OUT_TO	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
9	RULE_NAME	☐	TIMENAME	TIMENAME	CHAR	12	0	Object Name
10	RULE_TEXT	☐	TIMERUTEXT	TIMERUTEXT	CHAR	50	0	Descriptive Text for Date Rule
11	DURATION	☐	TIMEDURA	TIMEDURA	DEC	13	0	Numerical Value of Duration
12	TIME_UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	TIMECUUT
13	TIME_UNIT_TEXT	☐	TIMEUNITT	TIMEUNITT	CHAR	20	0	Long Text for Time Unit in Singular
14	DOMINANT	☐	CRMT_DATES_DOMINANT	CRM_DATES_DOMINANT	CHAR	1	0	All Day Event
15	DISPL_ORDER	☐	CRMT_DISPL_SEQUENCE	CRM_SEQUENCE	INT4	10	0	CRM: Position Within the Display
16	IS_DURATION	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
17	IS_MILESTONE	☐	TIMEFLMIL	FLAG	CHAR	1	0	Date is a Milestone
18	LINE_READ_ONLY	☐	CRMT_DISPLAY_READ_ONLY	CRMT_DISPLAY_READ_ONLY	CHAR	1	0	Flag Whether Date Type is Only Displayed

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_SUR_ALL_DATES_OJ	APPT_TYPE	SCAPPTTYPE	APPT_TYPE	KEY	1	CN
2	CRMT_BSP_SUR_ALL_DATES_OJ	TIMEZONE_FROM	TTZZ	TZONE	KEY	1	CN
3	CRMT_BSP_SUR_ALL_DATES_OJ	TIMEZONE_TO	TTZZ	TZONE	KEY	1	CN
4	CRMT_BSP_SUR_ALL_DATES_OJ	TIME_UNIT	TIMECUUT	NAME_UNIT	KEY	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
