SAP ABAP Table CRMT_BSP_SRV_DATES_I (Confirmation: Display Structure for Item Dates Tab)
Hierarchy
BBPCRM (Software Component) BBPCRM
   CRM-BTX (Application Component) Business Transactions
     CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction
Basic Data
Table Category INTTAB    Structure
Structure CRMT_BSP_SRV_DATES_I   Table Relationship Diagram
Short Description Confirmation: Display Structure for Item Dates Tab
Delivery and Maintenance
Pool/cluster
Delivery Class
Data Browser/Table View Maintenance     Display/Maintenance Allowed with Restrictions
Components

Field Key Data Element Domain Data
Type
Length Decimal
Places
Short Description Check
table
1 .INCLUDE       0   0   Service Order: Display Structure for Tab Dates Header
2 OBJECT_KEY CRMT_BSP_OBJECTKEY   CHAR 100   0   Object Key
3 .INCLUDE       0   0   Management of Interface Structures
4 GUID CRMT_OBJECT_GUID SYSUUID RAW 16   0   GUID of a CRM Order Object
5 HANDLE CRMT_HANDLE   NUMC 10   0   Handle
6 .INCLUDE       0   0   Service Order: Dates
7 APPT_TYPE TIMENAEVEN SC_APPTTYP CHAR 12   0   Date type SCAPPTTYPE
8 APPT_TEXT SC_TXT TEXT40 CHAR 40   0   Description
9 TIMESTAMP_FROM CRMT_DATE_TIMESTAMP_FROM BCOS_TSTMP DEC 15   0   Time Stamp (Date and Time) of a Date/Duration
10 TIMEZONE_FROM CRMT_TIMEZONE_FROM TZNZONE CHAR 6   0   Time Zone for a Start Time TTZZ
11 TIME_OUT_FROM CRMT_BSP_TZTF_IO_FROM TZTF_IO_FIELD CHAR 26   0   Field for Appointment Entry for Time From
12 TIMESTAMP_TO CRMT_DATE_TIMESTAMP_TO BCOS_TSTMP DEC 15   0   Time stamp (Date and Time) until a Date/Duration
13 TIMEZONE_TO CRMT_TIMEZONE_TO TZNZONE CHAR 6   0   Time Zone for End Time TTZZ
14 TIME_OUT_TO CRMT_BSP_TZTF_IO_TO TZTF_IO_FIELD CHAR 26   0   Field for Appointment Entry for Time To
15 RULE_NAME CRMT_BSP_TIMENAME TIMENAME CHAR 12   0   Date Rule
16 RULE_TEXT TIMERUTEXT TIMERUTEXT CHAR 50   0   Descriptive Text for Date Rule
17 DURATION TIMEDURA TIMEDURA DEC 13   0   Numerical Value of Duration
18 TIME_UNIT TIMEUNITDU TIMEUNITNA CHAR 12   0   Default Value for Time Unit TIMECUUT
19 TIME_UNIT_TEXT TIMEUNITT TIMEUNITT CHAR 20   0   Long Text for Time Unit in Singular
20 DOMINANT CRMT_DATES_DOMINANT CRM_DATES_DOMINANT CHAR 1   0   All Day Event
21 DISPL_ORDER CRMT_DISPL_SEQUENCE CRM_SEQUENCE INT4 10   0   CRM: Position Within the Display
22 IS_DURATION CRMT_IS_DURATION CRM_BOOLEAN CHAR 1   0   Indicates a Date as Duration in Date Definition
23 IS_MILESTONE TIMEFLMIL FLAG CHAR 1   0   Date is a Milestone
24 LINE_READ_ONLY CRMT_DISPLAY_READ_ONLY CRMT_DISPLAY_READ_ONLY CHAR 1   0   Flag Whether Date Type is Only Displayed

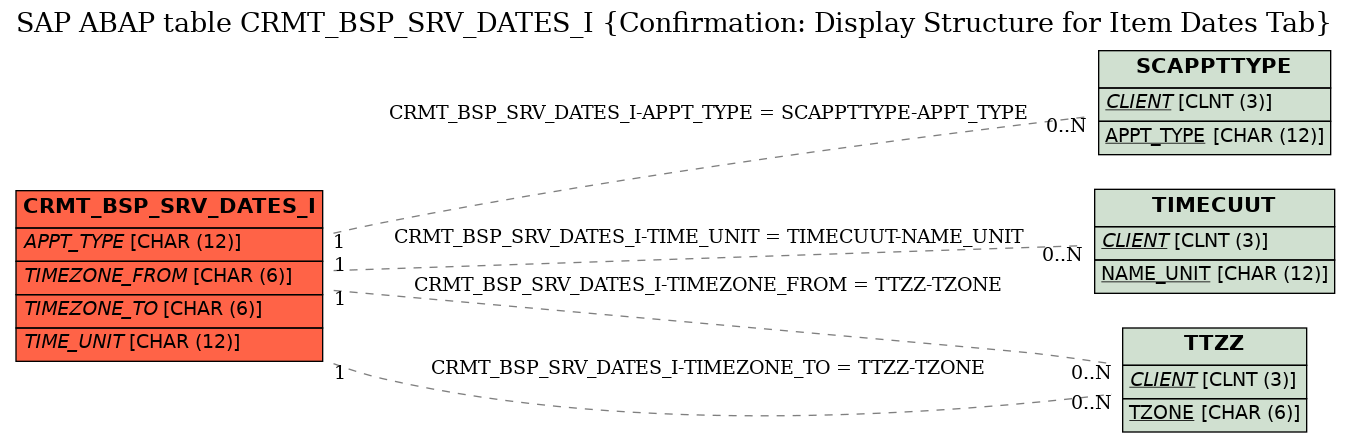

Foreign Keys
Source Table Source Column Foreign Table Foreign Column Dependency Factor Cardinality left Cardinality right
1 CRMT_BSP_SRV_DATES_I APPT_TYPE SCAPPTTYPE APPT_TYPE KEY 1 CN
2 CRMT_BSP_SRV_DATES_I TIMEZONE_FROM TTZZ TZONE KEY 1 CN
3 CRMT_BSP_SRV_DATES_I TIMEZONE_TO TTZZ TZONE KEY 1 CN
4 CRMT_BSP_SRV_DATES_I TIME_UNIT TIMECUUT NAME_UNIT KEY 1 CN
History
Last changed by/on SAP  20130604
SAP Release Created in 310
