SAP ABAP Table CRMT_BSP_SRC_SERVICEDATA_2 (Service Contract: Display Structure for Service Data Tabs)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

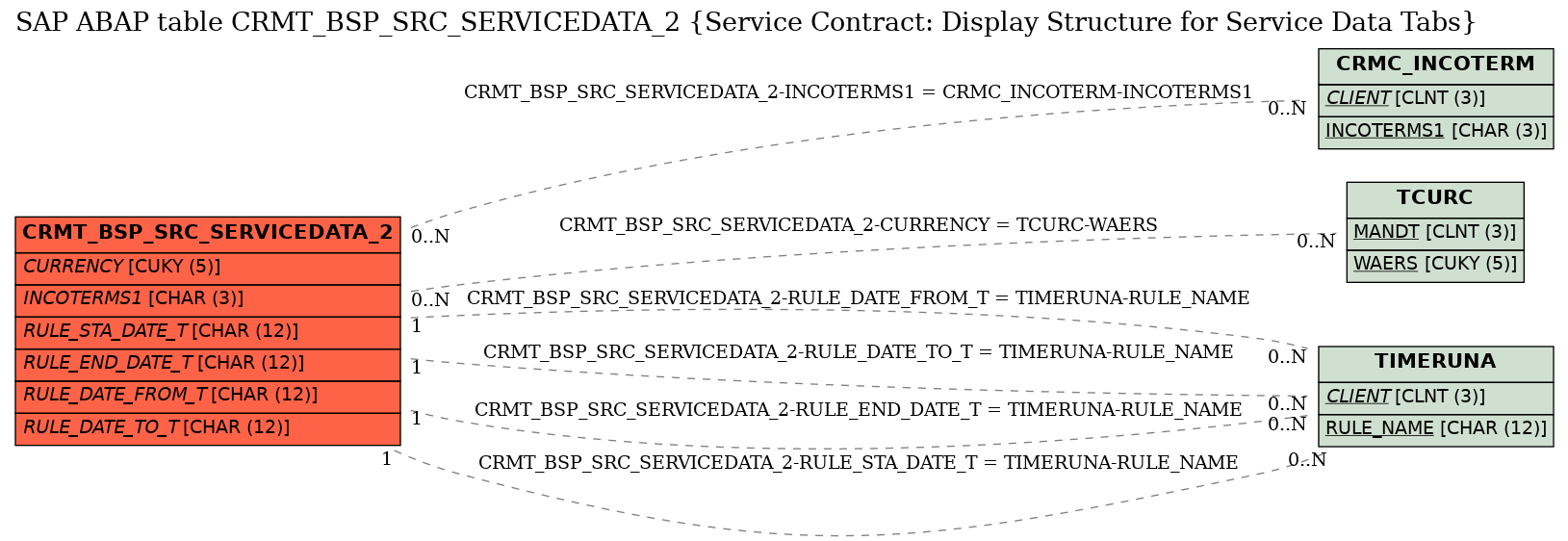

Structure	CRMT_BSP_SRC_SERVICEDATA_2	Table Relationship Diagram
Short Description	Service Contract: Display Structure for Service Data Tabs

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Service Contract: Display Structure for Service Data Tabs
3	.INCLUDE	☐				0	0	Management of Interface Structures
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
6	SALES_ORG_RESP_SHORT	☐	CRMT_SALES_ORG_RESP_SHORT	TEXT12	CHAR	12	0	Abbreviation: Responsible Organizational Unit (Sales)
7	SALES_ORG_SHORT	☐	CRMT_SALES_ORG_SHORT	TEXT12	CHAR	12	0	Sales Organization: Description of Department
8	DIS_CHANNEL	☐	CRMT_DISTRIBUTION_CHANNEL	CRM_DISTRIBUTION_CHANNEL	CHAR	2	0	Distribution Channel	*
9	SALES_OFFICE_SHORT	☐	CRMT_SALES_OFFICE_SHORT	TEXT12	CHAR	12	0	Sales Office Abbreviation
10	SALES_GROUP_SHORT	☐	CRMT_SALES_GROUP_SHORT	TEXT12	CHAR	12	0	Sales Group Abbreviation
11	SERVICE_ORG_RESP_SHORT	☐	CRMT_SERVICE_ORG_RESP_SHORT	TEXT12	CHAR	12	0	Abbreviation: Responsible Organizational Unit (Service)
12	SERVICE_ORG_SHORT	☐	CRMT_SERVICE_ORG_SHORT	TEXT12	CHAR	12	0	Service Organization Identifier
13	GROSS_VALUE	☐	CRMT_GROSS_VALUE_CUM	WERTV8	CURR	15	2	Total Gross Value of Document in Document Currency
14	NET_VALUE	☐	CRMT_NET_VALUE_CUM	WERTV8	CURR	15	2	Total Net Value of Document in Document Currency
15	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	TCURC
16	TAX_AMOUNT	☐	CRMT_TAX_AMOUNT_CUM	WERTV8	CURR	15	2	Total Tax Amount in Document Currency
17	FREIGHT	☐	CRMT_FREIGHT_CUM	WERTV8	CURR	15	2	Shipment Costs for Document in Total Document Currency
18	PRICE_DATE	☐	CRMT_PRICE_DATE	CRM_PRICE_DATE	DATS	8	0	Pricing Date
19	INCOTERMS1	☐	CRMT_INCOTERMS1	CRM_INCOTERMS1	CHAR	3	0	Incoterms (Part 1)	CRMC_INCOTERM
20	INCOTERMS2	☐	CRMT_INCOTERMS2	CRM_INCOTERMS2	CHAR	28	0	Incoterms (Part 2)
21	PMNTTRMS	☐	CRMT_PMNTTRMS	CRM_PMNTTRMS	CHAR	4	0	Terms of Payment	*
22	SRV_ESCAL	☐	CRMT_BSP_SRV_ESCAL	CRM_SRV_ESCAL	CHAR	10	0	Response Profile	*
23	SRV_SERWI	☐	CRMT_BSP_SRV_SERWI	CRM_SRV_SERWI	CHAR	10	0	Service Profile	*
24	SRV_ESCAL_TXT	☐	CRMT_DESCRIPTION_40	TEXT40	CHAR	40	0	Description (40 Characters)
25	SRV_SERWI_TXT	☐	CRMT_DESCRIPTION_40	TEXT40	CHAR	40	0	Description (40 Characters)
26	BUAG_ID	☐	CRMT_BUAG_ID	CRMT_BUAG_ID	CHAR	12	0	Number of Business Agreement
27	BUAG_TEXT	☐	CRMT_BUAG_TEXT	CHAR30LOW	CHAR	30	0	Text for Business Agreement
28	.INCLUDE	☐				0	0
29	.INCLUDE	☐				0	0
30	.INCLUDE	☐				0	0	Quotation OIC - Date Fields (Object IL Dates)
31	APPT_TYPE1	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
32	IS_DURATION1	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
33	APPT_TEXT1	☐	SC_TXT	TEXT40	CHAR	40	0	Description
34	TIME_OUT1	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
35	APPT_TYPE2	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
36	IS_DURATION2	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
37	APPT_TEXT2	☐	SC_TXT	TEXT40	CHAR	40	0	Description
38	TIME_OUT2	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
39	APPT_TYPE3	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
40	IS_DURATION3	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
41	APPT_TEXT3	☐	SC_TXT	TEXT40	CHAR	40	0	Description
42	TIME_OUT3	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
43	APPT_TYPE4	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
44	IS_DURATION4	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
45	APPT_TEXT4	☐	SC_TXT	TEXT40	CHAR	40	0	Description
46	TIME_OUT4	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
47	APPT_TYPE5	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
48	IS_DURATION5	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
49	APPT_TEXT5	☐	SC_TXT	TEXT40	CHAR	40	0	Description
50	TIME_OUT5	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
51	APPT_TYPE6	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
52	IS_DURATION6	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
53	APPT_TEXT6	☐	SC_TXT	TEXT40	CHAR	40	0	Description
54	TIME_OUT6	☐	TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
55	.INCLUDE	☐				0	0	Billing Plan Dates
56	START_DATE_TZTF	☐	CRMT_START_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Start Date of Billing Plan
57	END_DATE_TZTF	☐	CRMT_END_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	End Date of Billing Plan
58	DATE_FROM_TZTF	☐	CRMT_DATE_FROM_TZTF	TZTF_IO_FIELD	CHAR	26	0	Dates From
59	DATE_TO_TZTF	☐	CRMT_DATE_TO_TZTF	TZTF_IO_FIELD	CHAR	26	0	Dates To
60	RULE_STA_DATE_T	☐	CRMT_RULE_START_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Billing Plan Start Date	TIMERUNA
61	RULE_END_DATE_T	☐	CRMT_RULE_END_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Billing Plan End Date	TIMERUNA
62	RULE_DATE_FROM_T	☐	CRMT_RULE_DATE_FROM_T	TIMENAME	CHAR	12	0	Rule for determining dates from	TIMERUNA
63	RULE_DATE_TO_T	☐	CRMT_RULE_DATE_TO_T	TIMENAME	CHAR	12	0	Rule for Determining Dates to	TIMERUNA
64	BILLPLAN_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
65	BILLING_TIMEZONE	☐	CRMT_BILLING_TIMEZONE	TZNZONE	CHAR	6	0	Time Zone of Billing Plan Set	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_SRC_SERVICEDATA_2	CURRENCY	TCURC	WAERS
2	CRMT_BSP_SRC_SERVICEDATA_2	INCOTERMS1	CRMC_INCOTERM	INCOTERMS1
3	CRMT_BSP_SRC_SERVICEDATA_2	RULE_DATE_FROM_T	TIMERUNA	RULE_NAME	REF	1	CN
4	CRMT_BSP_SRC_SERVICEDATA_2	RULE_DATE_TO_T	TIMERUNA	RULE_NAME	REF	1	CN
5	CRMT_BSP_SRC_SERVICEDATA_2	RULE_END_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
6	CRMT_BSP_SRC_SERVICEDATA_2	RULE_STA_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN

History

Last changed by/on	SAP	20100420
SAP Release Created in	310
