SAP ABAP Table CRMT_BSP_SRC_DATES (Contract: Display Structure for Tab Dates Header)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

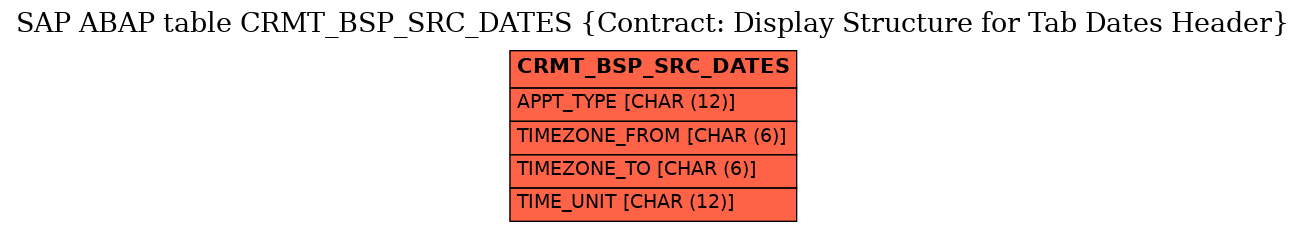

Structure	CRMT_BSP_SRC_DATES	Table Relationship Diagram
Short Description	Contract: Display Structure for Tab Dates Header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Management of Interface Structures
3	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
5	.INCLUDE	☐				0	0	Service: Dates
6	.INCLUDE	☐				0	0	Generic Include Structure for Table View of Dates Class
7	APPT_TYPE	☐	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
8	APPT_TEXT	☐	CRMT_BSP_APPT_TEXT	TEXT40	CHAR	40	0	Description of Date Type
9	TIMESTAMP_FROM	☐	CRMT_DATE_TIMESTAMP_FROM	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time) of a Date/Duration
10	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
11	TIME_OUT_FROM	☐	CRMT_BSP_TZTF_IO_FROM	TZTF_IO_FIELD	CHAR	26	0	Field for Appointment Entry for Time From
12	TIMESTAMP_TO	☐	CRMT_DATE_TIMESTAMP_TO	BCOS_TSTMP	DEC	15	0	Time stamp (Date and Time) until a Date/Duration
13	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	*
14	TIME_OUT_TO	☐	CRMT_BSP_TZTF_IO_TO	TZTF_IO_FIELD	CHAR	26	0	Field for Appointment Entry for Time To
15	RULE_NAME	☐	CRMT_BSP_TIMENAME	TIMENAME	CHAR	12	0	Date Rule
16	RULE_TEXT	☐	TIMERUTEXT	TIMERUTEXT	CHAR	50	0	Descriptive Text for Date Rule
17	DURATION	☐	TIMEDURA	TIMEDURA	DEC	13	0	Numerical Value of Duration
18	TIME_UNIT	☐	TIMEUNITDU	TIMEUNITNA	CHAR	12	0	Default Value for Time Unit	*
19	TIME_UNIT_TEXT	☐	TIMEUNITT	TIMEUNITT	CHAR	20	0	Long Text for Time Unit in Singular
20	DOMINANT	☐	CRMT_DATES_DOMINANT	CRM_DATES_DOMINANT	CHAR	1	0	All Day Event
21	DISPL_ORDER	☐	CRMT_DISPL_SEQUENCE	CRM_SEQUENCE	INT4	10	0	CRM: Position Within the Display
22	IS_DURATION	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
23	IS_MILESTONE	☐	TIMEFLMIL	FLAG	CHAR	1	0	Date is a Milestone
24	LINE_READ_ONLY	☐	CRMT_DISPLAY_READ_ONLY	CRMT_DISPLAY_READ_ONLY	CHAR	1	0	Flag Whether Date Type is Only Displayed
25	TIME1	☐	CRMT_BSP_TIME	CHAR6	CHAR	6	0	Time
26	TIME2	☐	CRMT_BSP_TIME	CHAR6	CHAR	6	0	Time
27	DATE1	☐	CRMT_BSP_DATE	DATS	DATS	8	0	Date
28	DATE2	☐	CRMT_BSP_DATE	DATS	DATS	8	0	Date
29	TIME1VALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
30	TIME2VALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
