SAP ABAP Table CRMT_BSP_SLS_OD1_PRODUCT_IL (Sales ODC1 - Products Interaction Layer Tab Title)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

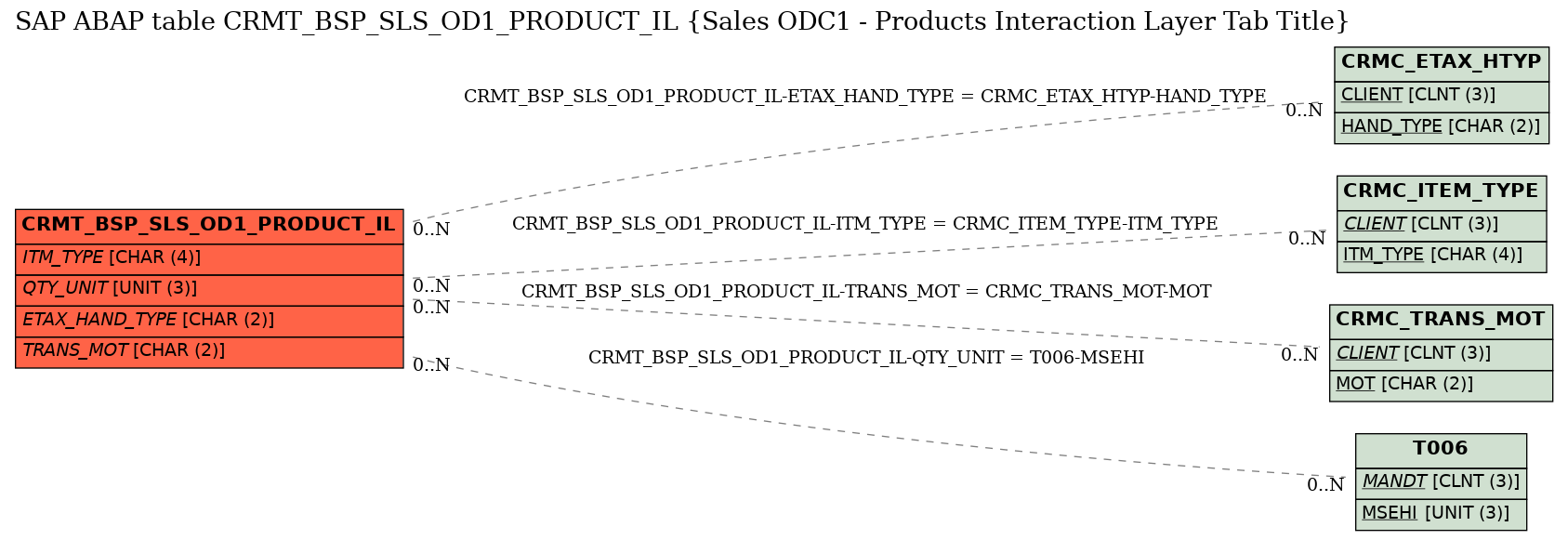

Structure	CRMT_BSP_SLS_OD1_PRODUCT_IL	Table Relationship Diagram
Short Description	Sales ODC1 - Products Interaction Layer Tab Title

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	NUMBER_INT	☐	CRMT_BSP_ITEM_NO	CRM_BSP_ITEM_NO	NUMC	10	0	Item Number in Document
6	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
7	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
8	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	CRMC_ITEM_TYPE
9	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
10	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	T006
11	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
12	ORDER_QTY	☐	CRMT_QTY_ORDER	MENG13	QUAN	13	3	CRM: Order Quantity
13	ORIG_ORDER_QTY	☐	CRMT_QTY_ORIG_ORDER	MENG13	QUAN	13	3	CRM: Original Order Quantity (Unrounded Cumulated qty.)
14	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
15	NUMBER_PARENT	☐	CRMT_BSP_ITEM_NO_PARENT	CRM_BSP_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Document
16	NUMBER_ALTERN	☐	CRMT_BSP_ITEM_NO_ALTERNATIVE	CRM_BSP_ITEM_NO	NUMC	10	0	Item for Which This Item is an Alternative in the Document
17	PROBABILITY	☐	CRMT_BSP_ORDER_PROBABILITY	CRM_BSP_PROBABILITY	NUMC	3	0	Order Probability
18	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
19	ITM_USAGE	☐	CRMT_ITEM_USAGE	CRM_ITEM_USAGE	CHAR	2	0	Usage of Higher-Level Item
20	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
21	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
22	FROM_TIME_IO	☐	CRMT_BSP_REQUEST_DATE	TZTF_IO_FIELD	CHAR	26	0	Requested Delivery Date
23	DATE1	☐	CRMT_BSP_REQUEST_DATE1	DATS	DATS	8	0	Requested Delivery Date
24	TIME1	☐	CRMT_BSP_TIME	CHAR6	CHAR	6	0	Time
25	TIME1VALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
26	BATCH_ID	☐	CRMT_BATCH_ID	BATCH_ID	CHAR	10	0	Batch Number
27	DATE_QTY_FIXED	☐	CRMT_DATE_QTY_FIXED	CRM_BOOLEAN	CHAR	1	0	Fixed Date and Quantity
28	ETAX_HAND_TYPE	☐	CRMT_ETAX_HAND_TYPE	CRM_ETAX_HAND_TYPE	CHAR	2	0	Excise Tax Handling Type (Denotes Use of Material)	CRMC_ETAX_HTYP
29	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	CRMC_TRANS_MOT
30	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
31	VENDOR_NUMBER	☐	CRMT_VENDOR_NUMBER	CRM_PARTNER_NUMBER	CHAR	20	0	Vendor Number
32	.INCLUDE	☐				0	0
33	.INCLUDE	☐				0	0
34	.INCLUDE	☐				0	0
35	DLV_GROUP	☐	CRMT_DLV_GROUP	CRMT_DLV_GROUP	NUMC	3	0	Delivery Group (Items are Delivered Together)
36	DLV_GROUP_DATE_TZTF	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
37	LATEST_TIME_CONFIRMED_TZTF	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
38	DELIVERED_QTY	☐	CRMT_DELIVERED_QTY	CRM_MENGV15	QUAN	15	3	Delivered Quantity
39	GOODS_ISSUE_QTY	☐	CRMT_GOODS_ISSUE_QTY	CRM_MENGV15	QUAN	15	3	Goods Issue Quantity
40	BILLED_QTY	☐	CRMT_BILLED_QTY	CRM_MENGV15	QUAN	15	3	Billed Quantity
41	BILLED_VALUE	☐	CRMT_BILLED_VALUE	CRM_COND_VALUE	CURR	19	2	Billed Value
42	BILL_CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_SLS_OD1_PRODUCT_IL	ETAX_HAND_TYPE	CRMC_ETAX_HTYP	HAND_TYPE
2	CRMT_BSP_SLS_OD1_PRODUCT_IL	ITM_TYPE	CRMC_ITEM_TYPE	ITM_TYPE
3	CRMT_BSP_SLS_OD1_PRODUCT_IL	QTY_UNIT	T006	MSEHI
4	CRMT_BSP_SLS_OD1_PRODUCT_IL	TRANS_MOT	CRMC_TRANS_MOT	MOT

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
