SAP ABAP Table CRMT_BSP_GPM_TREE (BSP: Grantor Program screen structure for tree view)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IPS-MD-PRG (Application Component) Grantor Programm
     ⤷ CRM_BSP_MODEL_GPM_APP (Package) Grants Program Management : Model Implementation

Basic Data

Table Category	INTTAB	Structure

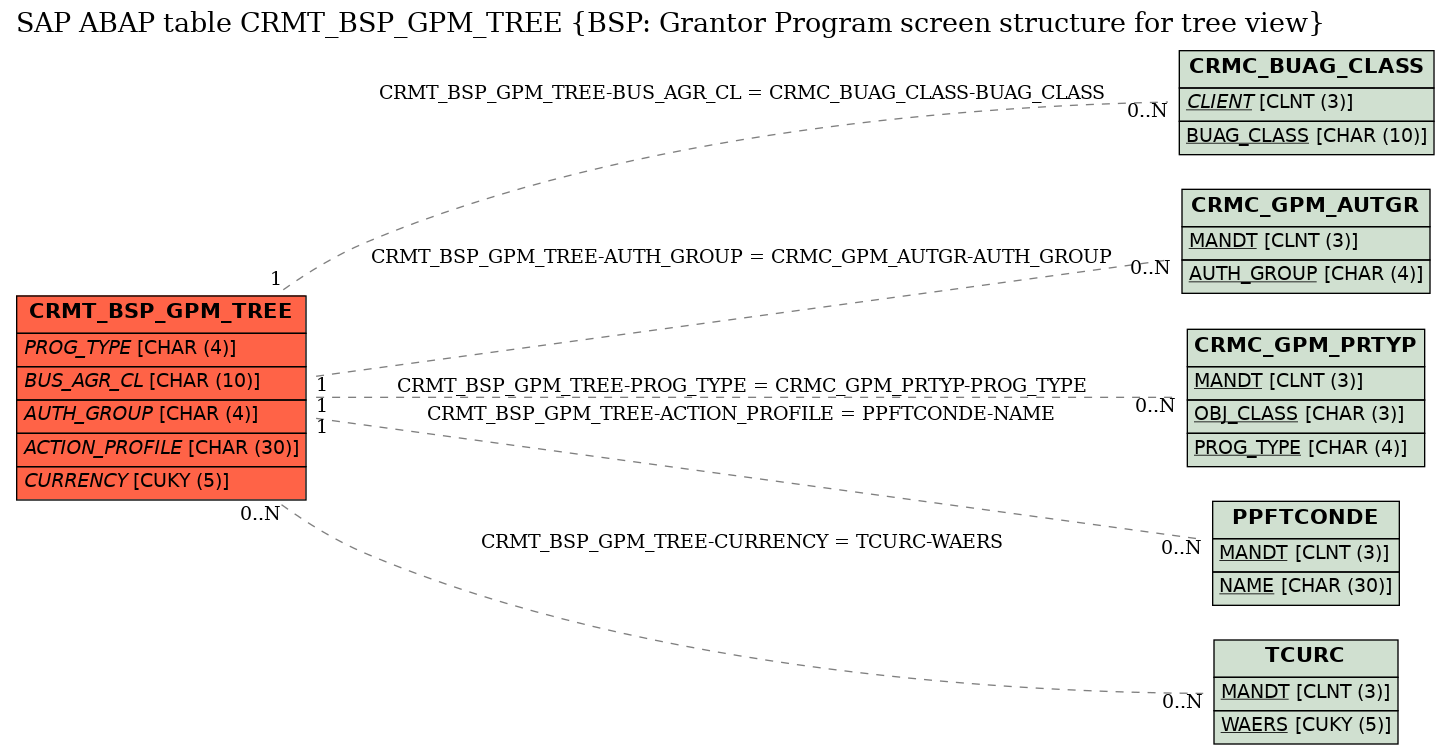

Structure	CRMT_BSP_GPM_TREE	Table Relationship Diagram
Short Description	BSP: Grantor Program screen structure for tree view

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Include Structure: Display Tables in Tree Table View
3	PARENT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
4	ICON	☐			STRG	0	0
5	ICON_EXPANDED	☐			STRG	0	0
6	IS_EXPANDED	☐	XFELD	XFELD	CHAR	1	0	Checkbox
7	IS_LEAF	☐	XFELD	XFELD	CHAR	1	0	Checkbox
8	IS_HOTSPOT	☐	XFELD	XFELD	CHAR	1	0	Checkbox
9	TOOLTIP	☐			STRG	0	0
10	DESCRIPTION	☐			STRG	0	0
11	.INCLUDE	☐				0	0	Grants Program Management attributes
12	.INCLUDE	☐				0	0	Grantor Program : Project attributes with Hierarchy info.
13	GUID	☐	CGPL_PROJECT_GUID	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16 Character GUID for Projects
14	EXTERNAL_ID	☐	CRMT_GPM_EXTID	CGPL_EXTID	CHAR	24	0	External Identifier of a Grantor Program
15	PROJECT_GUID	☐	CGPL_PROJECT_GUID	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16 Character GUID for Projects
16	OBJECT_TYPE	☐	CGPL_OBJECT_TYPE	CHAR3	CHAR	3	0	Object Type in Project Planning
17	PLANSTART	☐	CGPL_PLANSTART	BCOS_TSTMP	DEC	15	0	Planned start date
18	PLANFINISH	☐	CGPL_PLANFINISH	BCOS_TSTMP	DEC	15	0	Planned Finish Date
19	CREATED_BY	☐	CGPL_CREATED_BY	USNAM	CHAR	12	0	Name of Person Who Created Object
20	CREATED_ON	☐	CGPL_CREATED_ON	DATUM	DATS	8	0	Date on Which the Object was Created
21	CHANGED_BY	☐	CGPL_CHANGED_BY	USNAM	CHAR	12	0	Name of Person Who Changed Object
22	CHANGED_ON	☐	CGPL_CHANGED_ON	DATUM	DATS	8	0	Date on Which Object Was Last Changed
23	CALENDAR_ID	☐	WFCID	WFCID	CHAR	2	0	Factory Calendar	*
24	BWIDENTIFIER	☐	CGPL_BWIDENTIFIER	CGPL_BWIDENTIFIER	NUMC	8	0	Project Planning - BW Identification
25	APPLICATION	☐	CGPL_APPLICATION_TYPE	CGPL_APPLICATION_TYPE	CHAR	3	0	Application in Project Planning	*
26	.INCLUDE	☐				0	0	Grantor Program: External attributes
27	LANGU	☐	LANGU	SPRAS	LANG	1	0	Language Key	*
28	TEXT1	☐	CGPL_TEXT1	TEXT40	CHAR	40	0	Language-Dependent Short Text
29	PLANSTART_DATE	☐	CRMT_GPM_PLANSTART_DATE	SYDATS	DATS	8	0	Validity Start Date
30	PLANSTART_TIME	☐	CRMT_GPM_PLANSTART_TIME	SYTIME	TIMS	6	0	Validity Start Time
31	PLANFINISH_DATE	☐	CRMT_GPM_PLANFINISH_DATE	SYDATS	DATS	8	0	Validity End Date
32	PLANFINISH_TIME	☐	CRMT_GPM_PLANFINISH_TIME	SYTIME	TIMS	6	0	Validity End Time
33	UP	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
34	DOWN	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
35	LEFT_NODE	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
36	RIGHT_NODE	☐	CGPL_GUID16	CGPL_PROJECT_GUID	RAW	16	0	Project Planning: 16-Character GUID for Projects and Activts
37	NODE_LEVEL	☐	CGPL_LEVEL	INT1	INT1	3	0	CGPL Planning Level of Activity
38	STSMA	☐	CRM_J_STSMA	CRM_J_STSMA	CHAR	8	0	Status Profile	*
39	PARENT_EXTERNAL_ID	☐	CRMT_GPM_PARENT_EXTID	CGPL_EXTID	CHAR	24	0	External Identifier of the Higher-Level Grantor Program
40	PARENT_TEXT1	☐	CRMT_GPM_PARENT_TEXT1	TEXT40	CHAR	40	0	Description of the Higher Level Grantor Program
41	SERV_ORG_DSCR	☐	CRMT_GPM_SERV_ORG_DSCR	TEXT40	CHAR	40	0	GPM: Service Organization Description
42	SALES_ORG_DSCR	☐	CRMT_GPM_SALES_ORG_DSCR	TEXT40	CHAR	40	0	GPM: Sales Organization Description
43	DIS_CHANNEL_DSCR	☐	CRMT_GPM_DIS_CHANNEL_DSCR	TEXT40	CHAR	40	0	GPM: Distribution Channel Description
44	DIVISION_DSCR	☐	CRMT_GPM_DIVISION_DSCR	TEXT40	CHAR	40	0	GPM: Division Description
45	.INCLUDE	☐				0	0	Grantor Program structure for Attributes Assignment
46	PROG_TYPE	☐	CRMT_GPM_PROGTYPE	CRM_GPM_PROGTYPE	CHAR	4	0	Grantor Program Type	CRMC_GPM_PRTYP
47	BUS_AGR_CL	☐	CRMT_BUAG_CLASS	CRMT_BUAG_CLASS	CHAR	10	0	Business Agreement Class	CRMC_BUAG_CLASS
48	AUTH_GROUP	☐	CRMT_GPM_AUTH_GROUP	CRM_GPM_AUTH_GROUP	CHAR	4	0	Grantor Program Authorization Group	CRMC_GPM_AUTGR
49	ACTION_PROFILE	☐	CRMT_GPM_ACTION_PROFILE	PPFDCNTXT	CHAR	30	0	Grantor Program PPF Action Profile	PPFTCONDE
50	SERV_ORG	☐	CRMT_SERVICE_ORG	HROBJEC_14	CHAR	14	0	Service Organization
51	SALES_AREA	☐	CRMT_GPM_SALES_AREA		CHAR	18	0	Sales Area
52	TIME_ZONE	☐	TZNZONE	TZNZONE	CHAR	6	0	Time Zone	*
53	CURRENCY	☐	CRMT_GPM_CURRENCY	WAERS	CUKY	5	0	Grantor Program Currency	TCURC
54	PROFILE_ID	☐	CRMT_GPM_PROFILE_ID		CHAR	10	0	Grantor Program Profile ID
55	CLEARENCE	☐	CRMT_GPM_CLEARANCE	CRMT_GPM_CLEARANCE	CHAR	1	0	Grantor Program Clearance
56	TRANSFER	☐	CRMT_GPM_TRANSFER	BOOLEAN	CHAR	1	0	Grantor Program Transfer to External System
57	AVC_PROF_ID	☐	CRMT_GAG_AVC_PROF_ID	CHAR8	CHAR	8	0	Availabilty Control Profile Name
58	TEXTPROCEDURE	☐	COMT_TEXT_DET_PROCEDURE	CHAR8	CHAR	8	0	Text Determination Procedure
59	.INCLUDE	☐				0	0	GPM: EEW fields for attributes assignment
60	EEW_INCL_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_GPM_TREE	ACTION_PROFILE	PPFTCONDE	NAME	KEY	1	CN
2	CRMT_BSP_GPM_TREE	AUTH_GROUP	CRMC_GPM_AUTGR	AUTH_GROUP	KEY	1	CN
3	CRMT_BSP_GPM_TREE	BUS_AGR_CL	CRMC_BUAG_CLASS	BUAG_CLASS	KEY	1	CN
4	CRMT_BSP_GPM_TREE	CURRENCY	TCURC	WAERS
5	CRMT_BSP_GPM_TREE	PROG_TYPE	CRMC_GPM_PRTYP	PROG_TYPE		1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
