SAP ABAP Table CRMT_BSP_CPL_ITEMLIST (Confirmation: Display Structure for Item List Tab)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

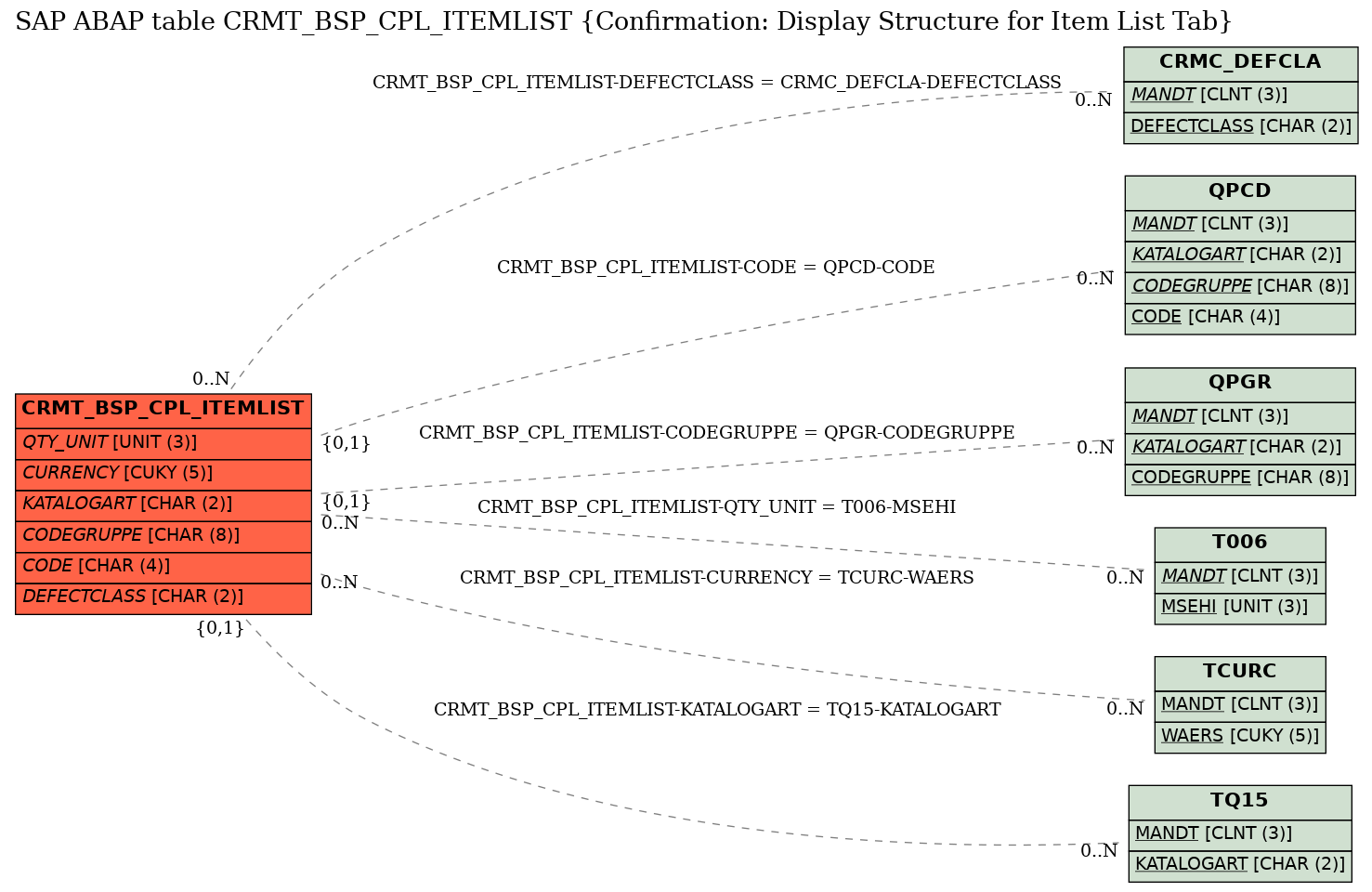

Structure	CRMT_BSP_CPL_ITEMLIST	Table Relationship Diagram
Short Description	Confirmation: Display Structure for Item List Tab

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Confirmation: Display Structure for Item List Tab
3	.INCLUDE	☐				0	0	Management of Interface Structures
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
6	NUMBER_INT	☐	CRMT_BSP_ITEM_NO	CRM_BSP_ITEM_NO	NUMC	10	0	Item Number in Document
7	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
8	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
9	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
10	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
11	QTY_UNIT	☐	CRMT_BSP_SRV_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure of Product in Service Document	T006
12	FROM_TIME_IO	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
13	NUMBER_PARENT	☐	CRMT_BSP_ITEM_NO_PARENT	CRM_BSP_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Document
14	ITEM_TYPE_TEXT	☐	CRMT_ITM_TYPE_DESC	TEXT40	CHAR	40	0	Item Category Text
15	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
16	PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
17	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
18	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
19	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	TCURC
20	REQUEST_DATE	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
21	HR_OBJID	☐	HROBJID	HROBJID	NUMC	8	0	Object ID	*
22	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
23	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
24	SERIAL_NUMBER	☐	CRMT_SERIAL_NUMBER	CHAR40	CHAR	40	0	Product Serial Number
25	.INCLUDE	☐				0	0
26	.INCLUDE	☐				0	0
27	.INCLUDE	☐				0	0
28	.INCLUDE	☐				0	0
29	.INCLUDE	☐				0	0	Service:General output field for subject
30	REF_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
31	GUID_HIERARCHY	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
32	SUBJECT_PROFILE	☐	CRMT_SUBJECT_PROFILE	CRM_SUBJECT_PROFILE	CHAR	9	0	Subject Profile	*
33	PROFILE_TYPE	☐	CRMT_SUBJECT_PROFILE_TYPE	CRM_SUBJECT_PROFILE_TYPE	CHAR	2	0	Subject Profile Category
34	KATALOGART	☐	COMT_CATALOG	COM_CATALOG	CHAR	2	0	Catalog	TQ15
35	KATALOGTXT	☐	QTXTCATALG	QKURZTEXT	CHAR	40	0	Short Text for the Catalog
36	CODEGRUPPE	☐	QCODEGRP	QCODEGRP	CHAR	8	0	Code Group	QPGR
37	GROUPTEXT	☐	QKTEXTCD	QKURZTEXT	CHAR	40	0	Code Group Short Text
38	CODE	☐	QCODE	QCODE	CHAR	4	0	Code	QPCD
39	DEFECTCLASS	☐	CRMT_DEFECTCLASS	CRM_DEFECTCLASS	CHAR	2	0	Defect Class	CRMC_DEFCLA
40	QUALITY	☐	CRMT_QUALITY	CRM_BOOLEAN	CHAR	1	0	Quality Defect
41	DEFQUANTITY	☐	CRMT_DEFQUANTITY	CRM_DEFQUANTITY	INT4	10	0	Defect Count
42	LISTCODE	☐	CRMT_SRV_SERVICE_CODE_LIST	CHAR14	CHAR	14	0	Code
43	CODETEXT	☐	QTXT_CODE	QKURZTEXT	CHAR	40	0	Short Text for Code
44	SORT	☐	CRMT_SORT	CRM_SORT	INT2	5	0	Sort Field
45	CATALOG_TYPE	☐	CRMT_CATALOGTYPE	CRM_CATALOGTYPE	CHAR	1	0	Catalog Category
46	CODEPROFILE	☐	CRMT_CODEGROUPS	CRM_CODEGROUPS	CHAR	9	0	Code Group Profile for Catalog
47	HIERARCHY_LEVEL	☐	CRMT_SUBJECT_PROFILE_LEVEL	CRM_SUBJECT_PROFILE_LEVEL	INT1	3	0	Hierarchy Level in Subject Profile

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_CPL_ITEMLIST	CODE	QPCD	CODE	REF	C	CN
2	CRMT_BSP_CPL_ITEMLIST	CODEGRUPPE	QPGR	CODEGRUPPE	REF	C	CN
3	CRMT_BSP_CPL_ITEMLIST	CURRENCY	TCURC	WAERS
4	CRMT_BSP_CPL_ITEMLIST	DEFECTCLASS	CRMC_DEFCLA	DEFECTCLASS
5	CRMT_BSP_CPL_ITEMLIST	KATALOGART	TQ15	KATALOGART	REF	C	CN
6	CRMT_BSP_CPL_ITEMLIST	QTY_UNIT	T006	MSEHI

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
