SAP ABAP Table CRMT_BSP_CFM_SERVICES (Confitmation: Display Structure for Services Tab)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BSP_CFM_SERVICES	Table Relationship Diagram
Short Description	Confitmation: Display Structure for Services Tab

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Confirmation: Display Structure for Item List Tab
3	.INCLUDE	☐				0	0	Management of Interface Structures
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
6	NUMBER_INT	☐	CRMT_BSP_ITEM_NO	CRM_BSP_ITEM_NO	NUMC	10	0	Item Number in Document
7	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
8	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
9	ITM_TYPE	☐	CRMT_ITEM_TYPE	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
10	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
11	QTY_UNIT	☐	CRMT_BSP_SRV_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure of Product in Service Document	T006
12	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	*
13	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	*
14	OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
15	OBJECT_TYPE_TXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
16	DURATION	☐	CRMT_SRV_CONF_DURATION	DAUER_5_2	QUAN	7	2	Confirmed Duration
17	TIME_UNIT	☐	CRMT_SRV_CONF_TIME_UNIT	MEINS	UNIT	3	0	Time Unit for Confirmed Duration	*
18	TIME_OUT_FROM	☐	CRMT_SRV_BEG_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	Start of Work
19	TIME_OUT_TO	☐	CRMT_SRV_END_TZTF_IO	TZTF_IO_FIELD	CHAR	26	0	End of Work
20	TIME_OUT_FROM_D	☐	CRMT_DATES_START_DATE	DATUM	DATS	8	0	Start Date
21	TIME_OUT_TO_D	☐	SC_DATETO	DATUM	DATS	8	0	End Date
22	TIME_OUT_FROM_T	☐	CRMT_BSP_TIME_HHMM_FROM	CRM_BSP_TIME_HHMM	TIMS	6	0	From
23	TIME_OUT_TO_T	☐	CRMT_BSP_TIME_HHMM_TO	CRM_BSP_TIME_HHMM	TIMS	6	0	To
24	PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
25	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
26	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
27	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
28	NET_VALUE	☐	CRMT_NET_VALUE	WERTV8	CURR	15	2	Net Value
29	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	TCURC
30	NUMBER_PARENT	☐	CRMT_BSP_ITEM_NO_PARENT	CRM_BSP_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Document
31	AC_INDICATOR	☐	CRMT_AC_INDICATOR	CRMT_AC_INDICATOR	CHAR	2	0	Accounting Indicator	CRMC_AC_IND
32	ACC_IND_TXT	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
33	BUAG_ID	☐	CRMT_BUAG_ID	CRMT_BUAG_ID	CHAR	12	0	Number of Business Agreement
34	BUAG_TEXT	☐	CRMT_BUAG_TEXT	CHAR30LOW	CHAR	30	0	Text for Business Agreement
35	ORDER_NUMBER	☐	CRMT_OBJECT_ID_SRV	CRM_OBJECT_ID	CHAR	10	0	Service Process Number
36	ORDER_ITEM	☐	CRMT_BSP_ITEM_NO_SRV	CRM_BSP_ITEM_NO	NUMC	10	0	Item Number in Document
37	PRODUCT	☐	COMT_PRODUCT_GUID	SYSUUID	RAW	16	0	Internal Unique ID of Product
38	SERIAL_NUMBER	☐	CRMT_SERIAL_NUMBER	CHAR40	CHAR	40	0	Product Serial Number
39	.INCLUDE	☐				0	0
40	.INCLUDE	☐				0	0
41	.INCLUDE	☐				0	0
42	.INCLUDE	☐				0	0
43	.INCLUDE	☐				0	0
44	.INCLUDE	☐				0	0
45	.INCLUDE	☐				0	0	Time Structure for PC UI
46	TIME_TO	☐	CRMT_BSP_TIME_TO	CHAR6	CHAR	6	0	To
47	TIME_TOVALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
48	TIME_TO_DURA	☐	CHAR20	CHAR20	CHAR	20	0	Char 20
49	TIME_FROM	☐	CRMT_BSP_TIME_FROM	CHAR6	CHAR	6	0	From
50	TIME_FROMVALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
51	TIMEZONE_TO	☐	CRMT_TIMEZONE_TO	TZNZONE	CHAR	6	0	Time Zone for End Time	*
52	TIMEZONE_FROM	☐	CRMT_TIMEZONE_FROM	TZNZONE	CHAR	6	0	Time Zone for a Start Time	*
53	TIMESTAMP_TO	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)
54	TIMESTAMP_FROM	☐	CRMT_TIMESTAMP	BCOS_TSTMP	DEC	15	0	Time Stamp (Date and Time)

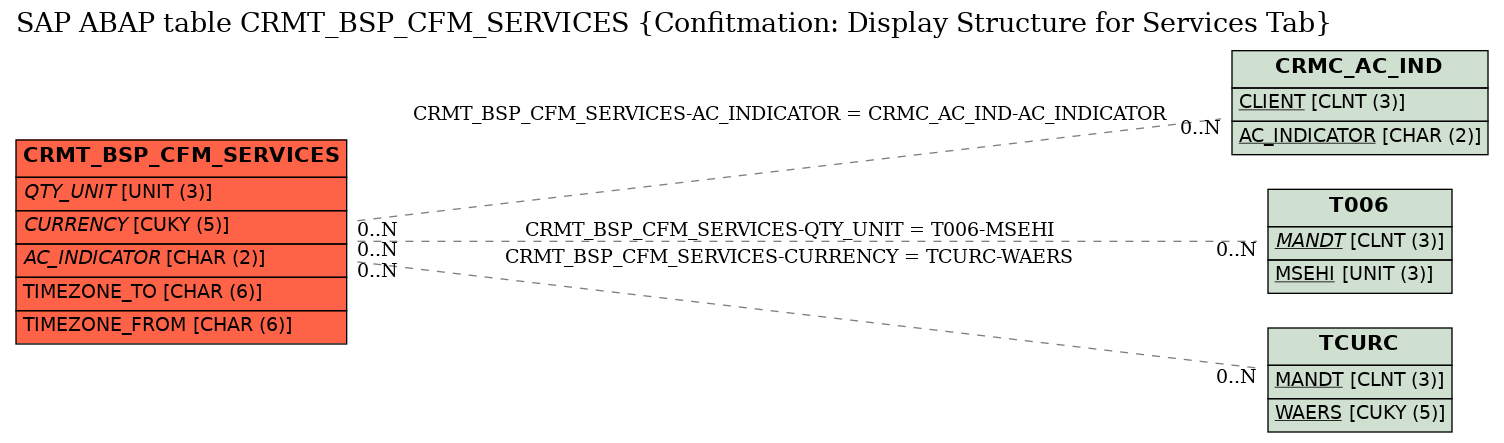

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_CFM_SERVICES	AC_INDICATOR	CRMC_AC_IND	AC_INDICATOR
2	CRMT_BSP_CFM_SERVICES	CURRENCY	TCURC	WAERS
3	CRMT_BSP_CFM_SERVICES	QTY_UNIT	T006	MSEHI

History

Last changed by/on	SAP	20130604
SAP Release Created in	310
