SAP ABAP Table CRMT_BSP_BTX_BILLPLANMST_IT (Milestone Billing Plan Dates)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BSP_BTX_BILLPLANMST_IT	Table Relationship Diagram
Short Description	Milestone Billing Plan Dates

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Milestone Billing Plan Dates
3	.INCLUDE	☐				0	0	Milestone Billing Plan Date on Interface
4	.INCLUDE	☐				0	0	CRM: Milestone Billing - Planned Rows
5	.INCLUDE	☐				0	0	Billing Plan Date on the User Interface
6	.INCLUDE	☐				0	0	Management of Interface Structures
7	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
8	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
9	BILLPLAN_MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
10	SETTL_FROM_TZTF	☐	CRMT_SETTL_FROM_TZTF	TZTF_IO_FIELD	CHAR	26	0	Start of Settlement for Period (Interface)
11	SETTL_TO_TZTF	☐	CRMT_SETTL_TO_TZTF	TZTF_IO_FIELD	CHAR	26	0	End of Settlement for Period (Interface)
12	BILL_DATE_TZTF	☐	CRMT_BILL_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Billing Date for Billing Index and Printout
13	INVCR_DATE_TZTF	☐	CRMT_INVCR_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Billing Document Creation Date
14	PERIOD_DATE	☐	CRMT_PERIOD_DATE	BCOS_TSTMP	DEC	15	0	Period Date
15	RULE_PER_DATE_TEXT	☐	CRMT_RULE_PERIOD_DATE_TEXT	TIMERUTEXT	CHAR	50	0	Rule for Determining the Period Date
16	RULE_PER_DATE_T	☐	CRMT_RULE_PERIOD_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Period Date	TIMERUNA
17	SETTL_FROM	☐	CRMT_SETTL_FROM	BCOS_TSTMP	DEC	15	0	Start of Settlement for Period
18	RULE_SET_FROM_T	☐	CRMT_RULE_SETTL_FROM_T	TIMENAME	CHAR	12	0	Rule for Determining Start of Settlement Period	TIMERUNA
19	SETTL_TO	☐	CRMT_SETTL_TO	BCOS_TSTMP	DEC	15	0	End of Settlement for Period
20	RULE_SETTL_TO_T	☐	CRMT_RULE_SETTL_TO_T	TIMENAME	CHAR	12	0	Rule for Determining End of Settlement Period	TIMERUNA
21	BILL_DATE	☐	CRMT_BILL_DATE	BCOS_TSTMP	DEC	15	0	Billing Date for Billing Index and Printout
22	RULE_BILL_DATE_TEXT	☐	CRMT_RULE_BILL_DATE_TEXT	TIMERUTEXT	CHAR	50	0	Rule for Determining the Next Billing Date
23	RULE_BILL_DATE_T	☐	CRMT_RULE_BILL_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Next Billing Date	TIMERUNA
24	INVCR_DATE	☐	CRMT_INVCR_DATE	BCOS_TSTMP	DEC	15	0	Billing Document Creation Date
25	RULE_INV_DATE_TEXT	☐	CRMT_RULE_INVCR_DATE_TEXT	TIMERUTEXT	CHAR	50	0	Rule for Determining Next Billing Document Creation Date
26	RULE_INV_DATE_T	☐	CRMT_RULE_INVCR_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Next Billing Document Creation Date	TIMERUNA
27	BILLING_TIMEZONE	☐	CRMT_BILLING_TIMEZONE	TZNZONE	CHAR	6	0	Time Zone of Billing Plan Set	TTZZ
28	PERCENTAGE	☐	CRMT_BILL_PERCENTAGE	DEC3_2	DEC	5	2	Percentage of Value to be Billed
29	BILL_VALUE	☐	CRMT_BILL_VALUE	CRM_COND_VALUE	CURR	19	2	Value to be Billed on Date Specified in Billing Plan
30	CURRENCY	☐	CRMT_CURRENCY	WAERS	CUKY	5	0	Currency	*
31	NO_OF_PERIODS	☐	CRMT_NO_OF_PERIODS		NUMC	5	0	Number of Periods in Billing Plan
32	NUMBER_INT	☐	CRMT_BILL_NUMBER_INT		NUMC	10	0	Billing Plan: Internal Sort Order
33	BP_USAGE	☐	CRMT_BP_USAGE	CRMT_BP_USAGE	CHAR	1	0	Billing Plan Usage
34	BILLPLAN_LINE_ID	☐	CRMT_BILLPLAN_LINE_ID	CRMT_BILLPLAN_LINE_ID	CHAR	2	0	ID of Billing Plan Line
35	NUMBER_EXT	☐	CRMT_ITEM_NO_EXT		NUMC	10	0	External Item Number
36	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
37	.INCLUDE	☐				0	0	Milestone Billing Plan Date: UI IT Part
38	TO_BE_INVOICED	☐	CRMT_FLG_TO_BE_INVOICED	XFELD	CHAR	1	0	Indicates that Item Is to Be Invoiced
39	INVOICED	☐	CRMT_FLG_INVOICED	XFELD	CHAR	1	0	Indication that Item Has Been Billed
40	BILLING_BLOCK	☐	CRMT_BILLING_BLOCK	CRM_BILLING_BLOCK	CHAR	2	0	Billing Block	*
41	BILL_BLOCK_TEXT	☐	CRMT_BILL_BLOCK_TEXT	TEXT20	CHAR	20	0	Billing Block
42	CASHFLOW_TYPE	☐	CRMT_CASHFLOW_TYPE	CRMT_CASHFLOW_TYPE	CHAR	4	0	Flow Category
43	IT_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
44	IT_HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
45	BILLING_MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
46	.INCLUDE	☐				0	0	Milestone Billing Plan - Search Help Connection Billing Date
47	BILL_PROFILE	☐	TIMECONT	TIMECONT	CHAR	12	0	Name of Date Profile
48	BILL_TYPE	☐	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
49	BILL_DATE_VALUE	☐	CRMT_BILL_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Billing Date for Billing Index and Printout

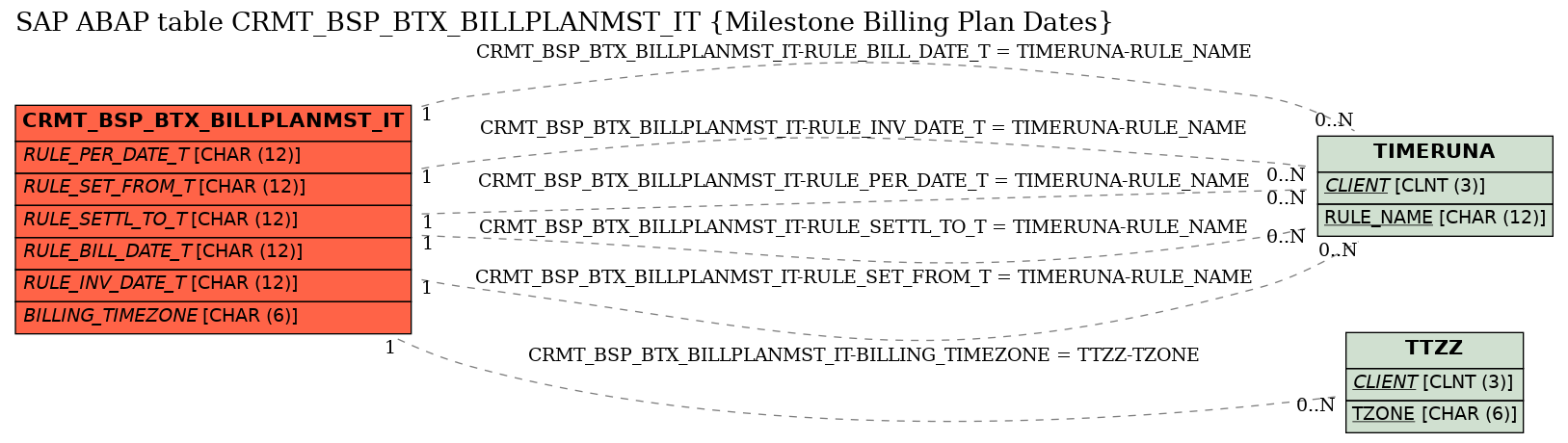

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_BTX_BILLPLANMST_IT	BILLING_TIMEZONE	TTZZ	TZONE	KEY	1	CN
2	CRMT_BSP_BTX_BILLPLANMST_IT	RULE_BILL_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
3	CRMT_BSP_BTX_BILLPLANMST_IT	RULE_INV_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
4	CRMT_BSP_BTX_BILLPLANMST_IT	RULE_PER_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
5	CRMT_BSP_BTX_BILLPLANMST_IT	RULE_SETTL_TO_T	TIMERUNA	RULE_NAME	REF	1	CN
6	CRMT_BSP_BTX_BILLPLANMST_IT	RULE_SET_FROM_T	TIMERUNA	RULE_NAME	REF	1	CN

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
