SAP ABAP Table CRMT_BSP_BTX_BILLPLAN2_HD (Billing Plan Header)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure

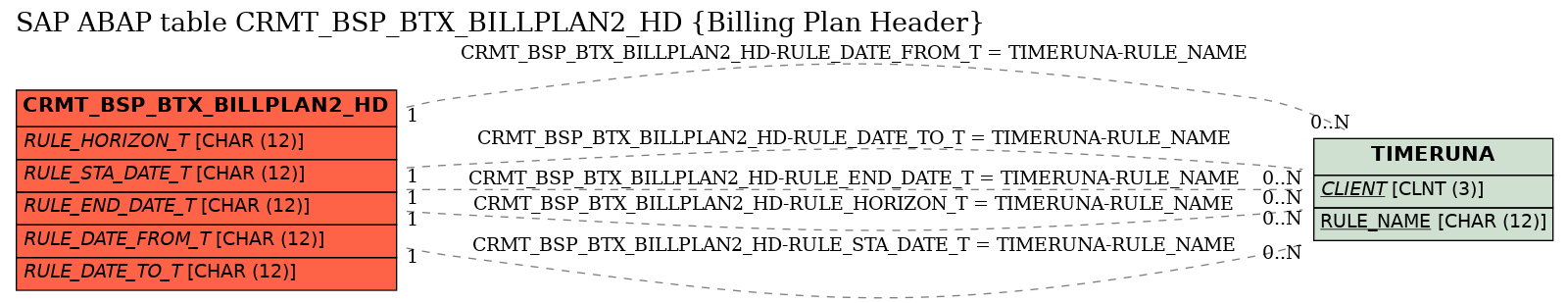

Structure	CRMT_BSP_BTX_BILLPLAN2_HD	Table Relationship Diagram
Short Description	Billing Plan Header

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	PC UI: Billing Plan Header Data
3	.INCLUDE	☐				0	0	Billing Plan Dates
4	.INCLUDE	☐				0	0	Management of Interface Structures
5	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
7	.INCLUDE	☐				0	0	External Fields for Billing Plan
8	BILLPLAN_TYPE	☐	CRMT_BILLPLAN_TYPE	CRM_BILLPLAN_TYPE	CHAR	2	0	Billing Plan Type	*
9	REFERENCE_NO	☐	CRMT_REFERENCE_NO	CRM_REFERENCE_BILLPLAN	CHAR	10	0	Reference Billing Plan Number
10	RULE_HORIZON	☐	CRMT_RULE_HORIZON	TIMERULEID	RAW	16	0	Rule for Determining Horizon in Billing Plan	*
11	START_DATE	☐	CRMT_START_DATE	BCOS_TSTMP	DEC	15	0	Start Date of Billing Plan
12	RULE_START_DATE	☐	CRMT_RULE_START_DATE	TIMERULEID	RAW	16	0	Rule for Determining Billing Plan Start Date	*
13	END_DATE	☐	CRMT_END_DATE	BCOS_TSTMP	DEC	15	0	End Date of Billing Plan
14	RULE_END_DATE	☐	CRMT_RULE_END_DATE	TIMERULEID	RAW	16	0	Rule for Determining Billing Plan End Date	*
15	DATE_FROM	☐	CRMT_DATE_FROM	BCOS_TSTMP	DEC	15	0	Dates From
16	RULE_DATE_FROM	☐	CRMT_RULE_DATE_FROM	TIMERULEID	RAW	16	0	Rule for Determining Dates from	*
17	DATE_TO	☐	CRMT_DATE_TO	BCOS_TSTMP	DEC	15	0	Dates To
18	RULE_DATE_TO	☐	CRMT_RULE_DATE_TO	TIMERULEID	RAW	16	0	Rule for Determining Dates To	*
19	BILLING_TIMEZONE	☐	CRMT_BILLING_TIMEZONE	TZNZONE	CHAR	6	0	Time Zone of Billing Plan Set	*
20	BILLPLAN_MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
21	DATE_HORIZON	☐	CRMT_DATE_HORIZON	BCOS_TSTMP	DEC	15	0	Horizon in Billing Plan
22	DATE_HORIZ_TZTF	☐	CRMT_DATE_HORIZ_TZTF	TZTF_IO_FIELD	CHAR	26	0	Horizon in Billing Plan
23	RULE_HORIZON_T	☐	CRMT_RULE_HORIZON_T	TIMENAME	CHAR	12	0	Rule for Determining Horizon in Billing Plan	TIMERUNA
24	BILLPLAN_TYPE_T	☐	CRMT_DESCRIPTION_40	TEXT40	CHAR	40	0	Description (40 Characters)
25	START_DATE_TZTF	☐	CRMT_START_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	Start Date of Billing Plan
26	END_DATE_TZTF	☐	CRMT_END_DATE_TZTF	TZTF_IO_FIELD	CHAR	26	0	End Date of Billing Plan
27	DATE_FROM_TZTF	☐	CRMT_DATE_FROM_TZTF	TZTF_IO_FIELD	CHAR	26	0	Dates From
28	DATE_TO_TZTF	☐	CRMT_DATE_TO_TZTF	TZTF_IO_FIELD	CHAR	26	0	Dates To
29	RULE_STA_DATE_T	☐	CRMT_RULE_START_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Billing Plan Start Date	TIMERUNA
30	RULE_END_DATE_T	☐	CRMT_RULE_END_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Billing Plan End Date	TIMERUNA
31	RULE_DATE_FROM_T	☐	CRMT_RULE_DATE_FROM_T	TIMENAME	CHAR	12	0	Rule for determining dates from	TIMERUNA
32	RULE_DATE_TO_T	☐	CRMT_RULE_DATE_TO_T	TIMENAME	CHAR	12	0	Rule for Determining Dates to	TIMERUNA
33	REF_TO_HEADER	☐	CRMT_BILLPLAN_REF_TO_HEADER	CHAR1	CHAR	1	0	Indicator: Billing Plan hangs on Header
34	REF_TO_PARENT	☐	CRMT_BILLPLAN_REF_TO_PARENT	CHAR1	CHAR	1	0	Billing Plan Assigned to Higher-Level Item

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_BTX_BILLPLAN2_HD	RULE_DATE_FROM_T	TIMERUNA	RULE_NAME	REF	1	CN
2	CRMT_BSP_BTX_BILLPLAN2_HD	RULE_DATE_TO_T	TIMERUNA	RULE_NAME	REF	1	CN
3	CRMT_BSP_BTX_BILLPLAN2_HD	RULE_END_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN
4	CRMT_BSP_BTX_BILLPLAN2_HD	RULE_HORIZON_T	TIMERUNA	RULE_NAME	REF	1	CN
5	CRMT_BSP_BTX_BILLPLAN2_HD	RULE_STA_DATE_T	TIMERUNA	RULE_NAME	REF	1	CN

History

Last changed by/on	SAP	20060411
SAP Release Created in	500
