SAP ABAP Table CRMT_BSP_ACT_CAL_SRCHRES (PC UI Calendar Search Result)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX (Application Component) Business Transactions
     ⤷ CRM_BSP_MODEL_IL_1O (Package) Model Implementation: Business Transaction

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_BSP_ACT_CAL_SRCHRES	Table Relationship Diagram
Short Description	PC UI Calendar Search Result

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	OBJECT_KEY	☐	CRMT_BSP_OBJECTKEY		CHAR	100	0	Object Key
2	.INCLUDE	☐				0	0	Seach Result for the Activity List IL
3	.INCLUDE	☐				0	0	Management of Interface Structures
4	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
5	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
6	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
7	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
8	OBJECT_ID	☐	CRMT_OBJECT_ID	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
9	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
10	PRIORITY	☐	CRMT_BSP_ACT_PRIORITY	CHAR1	CHAR	1	0	BSP Activity Priority
11	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
12	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
13	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
14	LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
15	IO_ICON	☐	CRMT_IO_ICON	ICON	CHAR	4	0	Icon for Interaction Object/Contact	*
16	PROCESS_TYPE_TXT	☐	CRMT_REPORT_PROCESS_TYPE_TXT	DDTEXT	CHAR	60	0	Text Description for Transaction Category
17	CATEGORY_TXT	☐	CRMT_REPORT_CATEGORY_TXT	DDTEXT	CHAR	60	0	Texts for Category
18	OBJECT_TYPE_TXT	☐	SAEOBJTEXT	SADC40	CHAR	40	0	Object text for language-dependent table
19	.INCLUDE	☐				0	0
20	.INCLUDE	☐				0	0
21	.INCLUDE	☐				0	0
22	USER	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*
23	EMPLOYEE_ID	☐	CRMT_BSP_ACT_CAL_EMPLOYEE	CHAR80	CHAR	80	0	Employee
24	.INCLUDE	☐				0	0	ACTIVITY:Detail Tab Appointment Details
25	APPT_TYPE	☐	CRMT_APPTYPE	SC_APPTTYP	CHAR	12	0	Technical Name for Date Type	*
26	FROM	☐	CRMT_DATES_START_DATE	DATUM	DATS	8	0	Start Date
27	TO	☐	CRMT_DATES_END_DATE	DATS	DATS	8	0	End Date
28	TIME_FROM	☐	CRMT_BSP_TIME_HHMM_FROM	CRM_BSP_TIME_HHMM	TIMS	6	0	From
29	APPOINTMENT_SET_GUID	☐	CRMT_SET_GUID_32	SYSUUID_C	CHAR	32	0	Set GUID in Format CHAR32
30	TIME_TO	☐	CRMT_BSP_TIME_HHMM_TO	CRM_BSP_TIME_HHMM	TIMS	6	0	To
31	DOMINANT	☐	CRMT_DATES_DOMINANT	CRM_DATES_DOMINANT	CHAR	1	0	All Day Event
32	APPT_TYPE1	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
33	IS_DURATION1	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
34	APPT_TEXT1	☐	SC_TXT	TEXT40	CHAR	40	0	Description
35	DATE1	☐	CRMT_DATES_START_DATE	DATUM	DATS	8	0	Start Date
36	TIME1	☐	CRMT_BSP_TIME_FROM	CHAR6	CHAR	6	0	From
37	TIME1VALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
38	APPT_TYPE2	☐	SC_APPTTYP	SC_APPTTYP	CHAR	12	0	Technical Date Type Name	*
39	IS_DURATION2	☐	CRMT_IS_DURATION	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as Duration in Date Definition
40	APPT_TEXT2	☐	SC_TXT	TEXT40	CHAR	40	0	Description
41	DATE2	☐	CRMT_DATES_END_DATE	DATS	DATS	8	0	End Date
42	TIME2	☐	CRMT_BSP_TIME_TO	CHAR6	CHAR	6	0	To
43	TIME2VALUE	☐	CHAR6	CHAR6	CHAR	6	0	Character field of length 6
44	UNIQUEID	☐	CRMT_BSP_CALENDAR_UNIQUEID		CHAR	42	0	Unique ID for Identifying a Calendar Entry
45	ALLDAY_EVENT	☐	CRMT_BSP_CALENDAR_ALLDAY_EVENT	CRM_BOOLEAN	CHAR	1	0	Indicates a Date as an All-Day Event
46	ALLOW_EDIT	☐	CRMT_BSP_CALENDAR_ALLOW_EDIT	CRM_BOOLEAN	CHAR	1	0	Flags a Date as Editable in Appointment Calendar
47	ALLOW_DELETE	☐	CRMT_BSP_CALENDAR_ALLOW_DELETE	CRM_BOOLEAN	CHAR	1	0	Flags Date in Calendar as Deletable
48	PRIVATE	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
49	RECURRENCE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
50	REMINDER	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
51	.INCLUDE	☐				0	0	Structure with calendar specific fields
52	START_DATE	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
53	END_DATE	☐	SC_DATETO	DATUM	DATS	8	0	End Date
54	CAL_USER	☐	XUBNAME	XUBNAME	CHAR	12	0	User Name in User Master Record	*

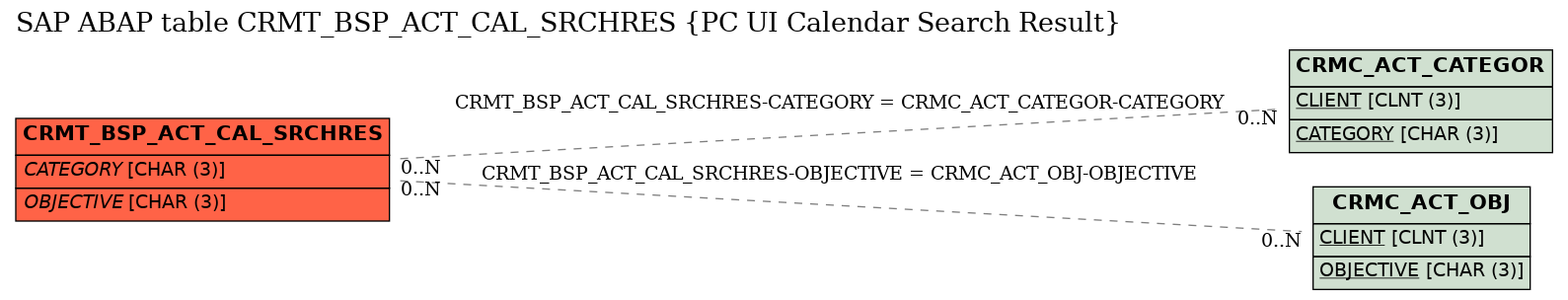

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BSP_ACT_CAL_SRCHRES	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
2	CRMT_BSP_ACT_CAL_SRCHRES	OBJECTIVE	CRMC_ACT_OBJ	OBJECTIVE

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
