SAP ABAP Table CRMT_BRF_MSG_INT (Screen Structure for all Message Fields)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-IFS-BF-BRF (Application Component) Business Rules Framework
     ⤷ CRM_FS_BRF_ACTION (Package) Financial Services: Action Implementations BRF

Basic Data

Table Category	INTTAB	Structure

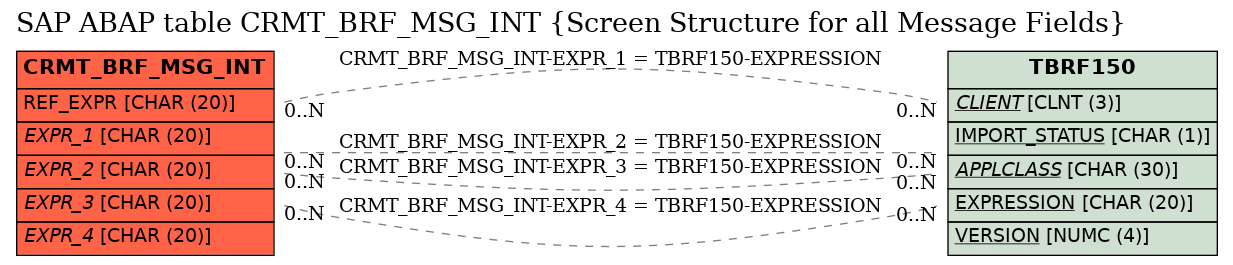

Structure	CRMT_BRF_MSG_INT	Table Relationship Diagram
Short Description	Screen Structure for all Message Fields

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Screen Structure for Messages
2	MSG_GUID	☐	CRMT_BRF_MSG_GUID		CHAR	32	0	GUID of a Message Action
3	POS	☐	CRMT_BRF_MSG_POS		INT4	10	0	Position of Message in an Action
4	MSGID	☐	SYMSGID	ARBGB	CHAR	20	0	Message Class	*
5	MSGNO	☐	MSG_NO	MSGNR	CHAR	3	0	Message Number	*
6	MSGTY	☐	MSGTY	MSGAR	CHAR	1	0	Message Type
7	MSG_SEL	☐	CRMT_BRF_MSG_TYP	CRMT_BRF_MSG_TYP	CHAR	1	0	Specifies Whether to Write or Delete Message
8	MSG_SEL_TEXT	☐	CHAR40	CHAR40	CHAR	40	0	Character field of length 40
9	MESSAGE_TEXT	☐	NATXT	NATXT	CHAR	73	0	Message Text
10	REF_EXPR	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	*
11	APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	*
12	.INCLUDE	☐				0	0	Screen Structure for Message Variables
13	RB_COLLECT	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
14	RB_DELETE	☐	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
15	RB_LIT_1	☐	CRMT_BRF_RB_LIT		CHAR	1	0	Radio Button: Constant
16	RB_EXPR_1	☐	CRMT_BRF_RB_EXPR		CHAR	1	0	Radio Button: Expression
17	LIT_1	☐	CRMT_BRF_MSGVAR	CRMT_BRF_MSGVAR	CHAR	50	0	Message Variable
18	EXPR_1	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
19	EXPR_SHORT_1	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
20	RB_LIT_2	☐	CRMT_BRF_RB_LIT		CHAR	1	0	Radio Button: Constant
21	RB_EXPR_2	☐	CRMT_BRF_RB_EXPR		CHAR	1	0	Radio Button: Expression
22	LIT_2	☐	CRMT_BRF_MSGVAR	CRMT_BRF_MSGVAR	CHAR	50	0	Message Variable
23	EXPR_2	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
24	EXPR_SHORT_2	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
25	RB_LIT_3	☐	CRMT_BRF_RB_LIT		CHAR	1	0	Radio Button: Constant
26	RB_EXPR_3	☐	CRMT_BRF_RB_EXPR		CHAR	1	0	Radio Button: Expression
27	LIT_3	☐	CRMT_BRF_MSGVAR	CRMT_BRF_MSGVAR	CHAR	50	0	Message Variable
28	EXPR_3	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
29	EXPR_SHORT_3	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
30	RB_LIT_4	☐	CRMT_BRF_RB_LIT		CHAR	1	0	Radio Button: Constant
31	RB_EXPR_4	☐	CRMT_BRF_RB_EXPR		CHAR	1	0	Radio Button: Expression
32	LIT_4	☐	CRMT_BRF_MSGVAR	CRMT_BRF_MSGVAR	CHAR	50	0	Message Variable
33	EXPR_4	☐	BRF_EXPRESSION	BRF_EXPRESSION	CHAR	20	0	BRF: Expression	TBRF150
34	EXPR_SHORT_4	☐	BRF_SHORT_TEXT	BRF_SHORT_TEXT	CHAR	80	0	BRF: General Short Text
35	EDIT_BUT1	☐	BRF_BOOLE_D	BRF_BOOLE_D	CHAR	1	0	Space = False, 'X' = True
36	EDIT_BUT2	☐	BRF_BOOLE_D	BRF_BOOLE_D	CHAR	1	0	Space = False, 'X' = True
37	EDIT_BUT3	☐	BRF_BOOLE_D	BRF_BOOLE_D	CHAR	1	0	Space = False, 'X' = True
38	EDIT_BUT4	☐	BRF_BOOLE_D	BRF_BOOLE_D	CHAR	1	0	Space = False, 'X' = True
39	BRF_APPLCLASS	☐	BRF_APPLCLASS	BRF_APPLCLASS	CHAR	30	0	BRF: Application Class	*

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_BRF_MSG_INT	EXPR_1	TBRF150	EXPRESSION
2	CRMT_BRF_MSG_INT	EXPR_2	TBRF150	EXPRESSION
3	CRMT_BRF_MSG_INT	EXPR_3	TBRF150	EXPRESSION
4	CRMT_BRF_MSG_INT	EXPR_4	TBRF150	EXPRESSION

History

Last changed by/on	SAP	20130604
SAP Release Created in	500
