SAP ABAP Table CRMT_BILLPLAN_SUBITEMS_COM (Billing Request Item: Communication Fields)

Hierarchy

☛

BBPCRM (Software Component) BBPCRM
⤷

CRM-BTX-BF-BPL (Application Component) Billing Plan
⤷

CRM_BILLPLAN (Package) CRM Billing Plan

Basic Data

Table Category	INTTAB	Structure

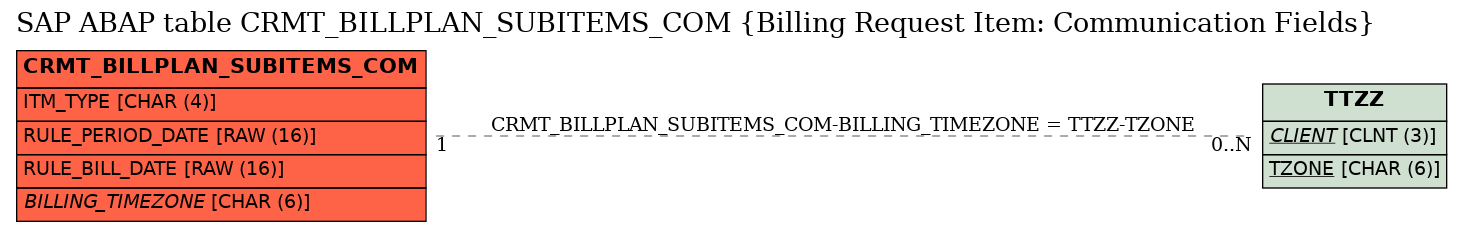

Structure	CRMT_BILLPLAN_SUBITEMS_COM	Table Relationship Diagram
Short Description	Billing Request Item: Communication Fields

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance		Display/Maintenance Allowed with Restrictions

Components


	Field	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE				0	0	Item: Communication Fields
2	GUID	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	CRMT_HANDLE		NUMC	10	0	Handle
4	HEADER_HANDLE	CRMT_HANDLE		NUMC	10	0	Handle
5	PARENT_HANDLE	CRMT_HANDLE		NUMC	10	0	Handle
6	ALTERNATIV_HANDLE	CRMT_HANDLE		NUMC	10	0	Handle
7	GROUPING_ITEM_HANDLE	CRMT_HANDLE		NUMC	10	0	Handle
8	.INCLUDE				0	0	Item: Structre of External Fields
9	HEADER	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
10	PARENT	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
11	ALTERNATIVE	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
12	PRODUCT	CRMT_PRODUCT_GUID_DB	SYSUUID	RAW	16	0	Internal Unique ID of Product
13	PRODUCT_SRC_SYS	CRMT_PRODUCT_SRC_SYS	LOGSYS	CHAR	10	0	Logical System from Which Product Originates	*
14	ORDERED_PROD	CRMT_ORDERED_PROD_DB	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
15	PARTNER_PROD	CRMT_ITEM_DESCR_PARTNER	PRSHTEXT40	CHAR	40	0	Product Number of Business Partner
16	DESCRIPTION	CRMT_PRSHTEXTX_DB	CRM_PRSHTEXT40_DB	CHAR	40	0	Product Short Text
17	ITM_LANGUAGE	CRMT_ITEM_LANGU	SYLANGU	LANG	1	0	Short Text Language for an Item
18	NUMBER_INT	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
19	NUMBER_EXT	CRMT_ITEM_NO_EXT		NUMC	10	0	External Item Number
20	ITM_TYPE	CRMT_ITEM_TYPE_DB	CRM_ITEM_TYPE	CHAR	4	0	Item Category	*
21	ORDER_DATE	CRMT_ORDER_DATE	BCOS_TSTMP	DEC	15	0	Posting Date
22	SUBST_REASON	CRMT_ITEM_SUBSTITUTION	CRM_ITEM_SUBSTITUTION	CHAR	4	0	Reason for Product Substitution	*
23	ITM_USAGE	CRMT_ITEM_USAGE	CRM_ITEM_USAGE	CHAR	2	0	Usage of Higher-Level Item
24	ITM_TYPE_USAGE	CRMT_IT_TYPE_USAGE	CRM_IT_TYPE_USAGE	CHAR	4	0	Item Category Usage	*
25	PRODUCT_KIND	CRMT_PRODUCT_KIND	CRM_PRODUCT_KIND	CHAR	1	0	Technnical Type of Product
26	LOG_SYSTEM_EXT	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
27	.INCLUDE				0	0	EEW Extension
28	ORDERADM_I_DUMMY	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
29	.INCLUDE				0	0
30	.INCLU--AP				0	0	Additional Fields in ORDERADM_I_EXT
31	ALTID_TYPE	COMT_ALTID_TYPE	CHAR16	CHAR	16	0	ID Type for Alternative IDs
32	PARENT_IN_COMP_TX	CRMT_COMP_TX_PARENT_GUID	SYSUUID	RAW	16	0	Higher-Level Item Number in Composite Transaction
33	NUMBER_INT_COMP_TX	CRMT_COMP_TX_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Composite Transaction-Specific Item Number
34	.INCLUDE				0	0	Item: Dynamic Communication Fields
35	NUMBER_PARENT	CRMT_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Transaction
36	NUMBER_ALTERN	CRMT_ITEM_NO_ALTERNATIVE	CRM_ITEM_NO	NUMC	10	0	Item for Which This Item is an Alternative in the Document
37	PREVIOUS_HANDLE	CRMT_HANDLE		NUMC	10	0	Handle
38	PREVIOUS_GUID	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
39	ITM_PROC_IDENT	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
40	MULTIPLICITY	PRCT_MULTIPLICITY	INT4	INT4	10	0	Multiplier for Pricing Item
41	GROUPING_ITEM	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
42	NUMBER_PARENT_COMP_TX	CRMT_COMP_TX_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Composite Transaction
43	MODE	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
44	.INCLUDE				0	0	Date Fields at Deadline Level
45	.INCLUDE				0	0	Date Fields at Deadline Level: External Part
46	PERIOD_DATE	CRMT_PERIOD_DATE	BCOS_TSTMP	DEC	15	0	Period Date
47	RULE_PERIOD_DATE	CRMT_RULE_PERIOD_DATE	TIMERULEID	RAW	16	0	Rule for Determining the Period Date	*
48	SETTL_FROM	CRMT_SETTL_FROM	BCOS_TSTMP	DEC	15	0	Start of Settlement for Period
49	RULE_SETTL_FROM	CRMT_RULE_SETTL_FROM	TIMERULEID	RAW	16	0	Rule for Determining Start of Settlement Period	*
50	SETTL_TO	CRMT_SETTL_TO	BCOS_TSTMP	DEC	15	0	End of Settlement for Period
51	RULE_SETTL_TO	CRMT_RULE_SETTL_TO	TIMERULEID	RAW	16	0	Rule for Determining End of Settlement Period	*
52	BILL_DATE	CRMT_BILL_DATE	BCOS_TSTMP	DEC	15	0	Billing Date for Billing Index and Printout
53	RULE_BILL_DATE	CRMT_RULE_BILL_DATE	TIMERULEID	RAW	16	0	Rule for Determining the Next Billing Date	*
54	INVCR_DATE	CRMT_INVCR_DATE	BCOS_TSTMP	DEC	15	0	Billing Document Creation Date
55	RULE_INVCR_DATE	CRMT_RULE_INVCR_DATE	TIMERULEID	RAW	16	0	Rule for Determining Next Billing Document Creation Date	*
56	VALUE_DATE	CRMT_VALUE_DATE	BCOS_TSTMP	DEC	15	0	Fixed Value Date
57	RULE_VALUE_DATE	CRMT_RULE_VALUE_DATE	TIMERULEID	RAW	16	0	Rule for Origin of Next Fixed Value Date	*
58	BILLING_TIMEZONE	CRMT_BILLING_TIMEZONE	TZNZONE	CHAR	6	0	Time Zone of Billing Plan Set	TTZZ
59	.INCLUDE				0	0	Billing Data: External Fields
60	SETTL_FIMA	CRMT_SETTL_FIMA	BCOS_TSTMP	DEC	15	0	Internal Billing Date for Financial Mathematics
61	FIMA_KONDIND	CRMT_FIMA_KONDIND		NUMC	10	0	Reference FIMA Condition Item
62	FIMA_BEWEIND	CRMT_FIMA_BEWEIND		NUMC	10	0	Reference FIMA Flow Record
63	.INCLUDE				0	0	Date Fields at Deadline Level: Internal Part
64	KIND_PERIOD_DATE	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
65	KIND_SETTL_FROM	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
66	KIND_SETTL_TO	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
67	KIND_BILL_DATE	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
68	KIND_INVCR_DATE	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
69	KIND_VALUE_DATE	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
70	KIND_START_DATE	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
71	KIND_END_DATE	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
72	KIND_DATE_FROM	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
73	KIND_DATE_TO	TIMENAEVEN	SC_APPTTYP	CHAR	12	0	Date type	*
74	.INCLUDE				0	0	Amount Allocation for Billing Plan: External Fields
75	PARTNER1	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
76	PARTNER1_FCT	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
77	PARTNER2	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
78	PARTNER2_FCT	CRMT_PARTNER_FCT	COM_PARTNER_FCT	CHAR	8	0	Partner Function
79	AC_INDICATOR	CRMT_AC_INDICATOR	CRMT_AC_INDICATOR	CHAR	2	0	Accounting Indicator	*
80	AC_OBJECT_TYPE	CRMT_AC_OBJECT_TYPE	CRMT_OBJECT_TYPE	CHAR	2	0	Object Type for Settlement Account Assignment	*
81	AC_ASSIGNMENT	CRMT_AC_ASSIGN	CRMT_AC_ASSIGN	CHAR	50	0	Settlement Account Assignment
82	AC_PERCENTAGE	CRMT_AC_COST_PERCENTAGE	DEC3_2	DEC	5	2	Percentage of Costs to Be Distributed
83	SPLIT_ORIGIN	CRMT_SPLIT_ORIGIN	CRMT_SPLIT_ORIGIN	CHAR	2	0	Origin Split
84	KSCHL	PRCT_COND_TYPE	/SAPCND/COND_TYPE	CHAR	4	0	Pricing - Condition Type	*
85	.INCLUDE				0	0	External Grouping Fields for Amount Allocation
86	GROUP1	CRMT_GROUP1	CRMT_GROUP	CHAR	32	0	Group 1
87	GROUP2	CRMT_GROUP2	CRMT_GROUP	CHAR	32	0	Group 2
88	GROUP3	CRMT_GROUP3	CRMT_GROUP	CHAR	32	0	Group 3
89	GROUP4	CRMT_GROUP4	CRMT_GROUP	CHAR	32	0	Group 4
90	GROUP5	CRMT_GROUP5	CRMT_GROUP	CHAR	32	0	Group 5
91	GROUP6	CRMT_GROUP6	CRMT_GROUP	CHAR	32	0	Group 6
92	GROUP7	CRMT_GROUP7	CRMT_GROUP	CHAR	32	0	Group 7
93	.INCLUDE				0	0	Fields for Value Split
94	PERCENTAGE	CRMT_BILL_PERCENTAGE	DEC3_2	DEC	5	2	Percentage of Value to be Billed
95	QUANTITY	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
96	QTY_UNIT	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
97	.INCLUDE				0	0	Billing Plan Deadline: Dynamic Communication Fields
98	RULE_PER_DATE_T	CRMT_RULE_PERIOD_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Period Date
99	RULE_BILL_DATE_T	CRMT_RULE_BILL_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining the Next Billing Date
100	RULE_INV_DATE_T	CRMT_RULE_INVCR_DATE_T	TIMENAME	CHAR	12	0	Rule for Determining Next Billing Document Creation Date
101	RULE_VAL_DATE_T	CRMT_RULE_VALUE_DATE_T	TIMENAME	CHAR	12	0	Rule for Origin of Next Fixed Value Date
102	RULE_SET_FROM_T	CRMT_RULE_SETTL_FROM_T	TIMENAME	CHAR	12	0	Rule for Determining Start of Settlement Period
103	RULE_SETTL_TO_T	CRMT_RULE_SETTL_TO_T	TIMENAME	CHAR	12	0	Rule for Determining End of Settlement Period
104	SUPPRESS_EVENT	CRMT_BOOLEAN	CRM_BOOLEAN	CHAR	1	0	Logical Variable
