SAP ABAP Table CRMT_ACTIVITY_ALV (CRM: Structure for the Application Workplace - Activities)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure

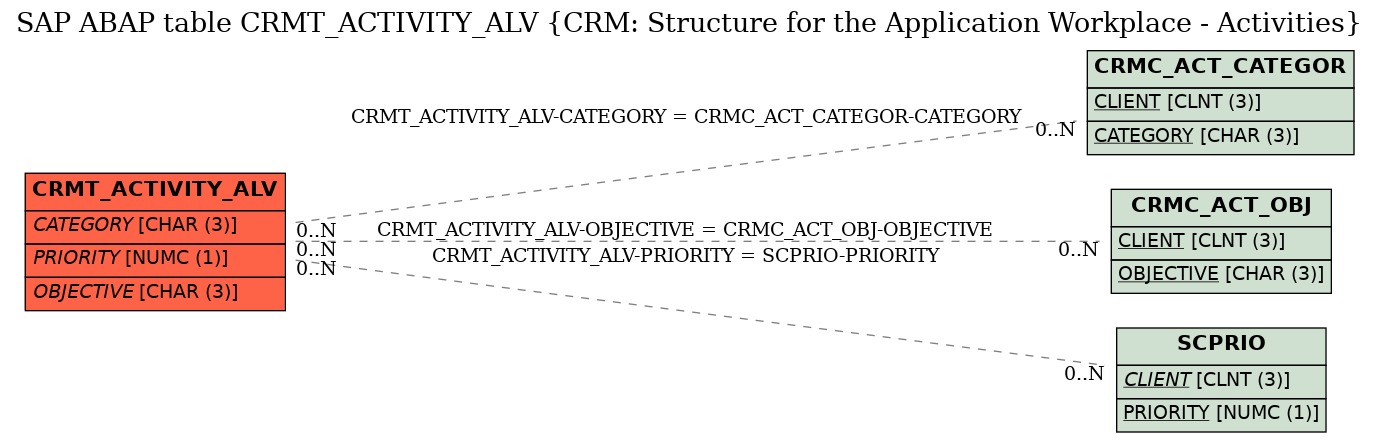

Structure	CRMT_ACTIVITY_ALV	Table Relationship Diagram
Short Description	CRM: Structure for the Application Workplace - Activities

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Structure of an Activity - External Fields
2	CATEGORY	☐	CRMT_ACTIVITY_CATEGORY	CRM_ACTIVITY_CATEGORY	CHAR	3	0	Activity Category (Communication Type)	CRMC_ACT_CATEGOR
3	PRIORITY	☐	CRMT_PRIORITY	SC_PRIO	NUMC	1	0	Activity Priority	SCPRIO
4	OBJECTIVE	☐	CRMT_OBJECTIVE	CRM_OBJECTIVE	CHAR	3	0	Goal of an Activity	CRMC_ACT_OBJ
5	DIRECTION	☐	CRMT_DIRECTION	CRM_DIRECTION	CHAR	1	0	Direction of an Activity
6	EXTERN_ACT_ID	☐	CRMT_EXTERNAL_ACTIVITY_ID	CRM_EXTERNAL_ACTIVITY_ID	CHAR	20	0	External Business Transaction Number
7	ADDRESS_ID	☐	CRMT_ADDRESS	AD_ADDRNUM	CHAR	10	0	Location where Activity takes place	*
8	PRIVATE_FLAG	☐	CRMT_PRIVAT	CRM_BOOLEAN	CHAR	1	0	Indicator: Task is Private
9	COMPLETION	☐	CRMT_COMPLETION	CRM_COMPLETION	NUMC	3	0	Completion Rate in Percent
10	ACT_LOCATION	☐	CRMT_ACTIVITY_LCTN	CRM_ACTIVITY_LOCATION	CHAR	100	0	Location
11	.INCLUDE	☐				0	0	EEW Include
12	ACTIVITY_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
13	.INCLUDE	☐				0	0
14	.INCLUDE	☐				0	0	General Header Data - Structure of External Fields
15	OBJECT_ID	☐	CRMT_OBJECT_ID_DB	CRM_OBJECT_ID	CHAR	10	0	Transaction ID
16	PROCESS_TYPE	☐	CRMT_PROCESS_TYPE_DB	CRM_PROCESS_TYPE	CHAR	4	0	Business Transaction Type	*
17	POSTING_DATE	☐	CRMT_POSTING_DATE		DATS	8	0	Posting Date for a Business Transaction
18	DESCRIPTION	☐	CRMT_PROCESS_DESCRIPTION	CRM_PROCESS_DESCRIPTION	CHAR	40	0	Transaction Description
19	DESCR_LANGUAGE	☐	CRMT_PROCESS_DESCRIPTION_LANGU	SPRAS	LANG	1	0	Language Key of Description	*
20	LOGICAL_SYSTEM	☐	CRMT_LOGSYS	LOGSYS	CHAR	10	0	Logical System	*
21	CRM_RELEASE	☐	SAPRELEASE	CHAR10	CHAR	10	0	SAP Release
22	SCENARIO	☐	CRMT_SCENARIO	CRM_SCENARIO	CHAR	10	0	Scenario Identity
23	TEMPLATE_TYPE	☐	CRMT_TEMPLATE_TYPE_DB	CRM_TEMPLATE_TYPE	CHAR	1	0	Template Type of CRM Transaction
24	.INCLUDE	☐				0	0	Time and User of Last Transaction Processing
25	CREATED_AT	☐	COMT_CREATED_AT_USR	COM_TSTMP	DEC	15	0	Created At (Output in User Time Zone)
26	CREATED_BY	☐	CRMT_CREATED_BY	UNAME	CHAR	12	0	User that Created the Transaction
27	CHANGED_AT	☐	COMT_CHANGED_AT_USR	COM_TSTMP	DEC	15	0	Changed At (Output in User Time Zone)
28	CHANGED_BY	☐	CRMT_CHANGED_BY	UNAME	CHAR	12	0	Transaction Last Changed By
29	HEAD_CHANGED_AT	☐	CRMT_CHANGED_AT	BCOS_TSTMP	DEC	15	0	Time of Last Change to the Transaction
30	.INCLUDE	☐				0	0	EEW Extension
31	ORDERADM_H_DUMMY	☐	DUMMY	DUMMY	CHAR	1	0	Dummy function in length 1
32	.INCLUDE	☐				0	0
33	.INCLU--AP	☐				0	0	Additional Fields in ORDERADM_H After Decoupling
34	INPUT_CHANNEL	☐	CRMT_INPUT_CHANNEL	CRM_INPUT_CHANNEL	CHAR	3	0	Input channel
35	BTX_CLASS	☐	CRMT_TRANSACTION_CLASSIFICATN	CRM_TRANSACTION_CLASSIFICATION	CHAR	1	0	CRM Business Transaction Classification
36	AUTH_SCOPE	☐	CRM_AUTH_SCOPE	CRM_AUTH_SCOPE	NUMC	6	0	Authorization Scope	*
37	COMP_TX_HEADER	☐	CRMT_COMP_TX_HEADER_GUID	SYSUUID	RAW	16	0	GUID of Composite Transaction Header
38	.INCLUDE	☐				0	0	One Order: Key Fields
39	CLIENT	☐	MANDT	MANDT	CLNT	3	0	Client	*
40	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
41	STAT	☐	J_STATUS	J_STATUS	CHAR	5	0	Object status
42	STATUS	☐	CRMT_RPRTNG_STATUS_L	TEXT40	CHAR	40	0	Longtext Status for a Sales Document
43	CATEGORY_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
44	PRIORITY_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
45	OBJECTIVE_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
46	DIRECTION_TEXT	☐	CRMT_DESCRIPTION_20	TEXT20	CHAR	20	0	Description (20 Characters)
47	PARTNER_FCT	☐	CRMT_RPRTNG_MYFUNCTION	CHAR8	CHAR	8	0	Function That a Processor Has in a Sales Document
48	FCT_DESCRIPTION	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
49	FCT_SHORT_DESC	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
50	MAIN_BP_1_NO	☐	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
51	MAIN_BP_1_FCT	☐	CRMT_RPRTNG_ADDFUNCTION	CHAR8	CHAR	8	0	Role of an Additional Business Partner for Display
52	MAIN_BP_1	☐	CRMT_RPRTNG_ADDPARTNER	NAME	CHAR	35	0	Additional Business Partner
53	MAIN_BP_1_DESC	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
54	MAIN_BP_1_DESC_S	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
55	MAIN_BP_1_NAMELIST	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
56	MAIN_BP_2_NO	☐	CRMT_PARTNER_NO	CRM_PARTNER_NO	CHAR	32	0	Partner Number
57	MAIN_BP_2_FCT	☐	CRMT_RPRTNG_ADDFUNCTION	CHAR8	CHAR	8	0	Role of an Additional Business Partner for Display
58	MAIN_BP_2	☐	CRMT_RPRTNG_ADDPARTNER	NAME	CHAR	35	0	Additional Business Partner
59	MAIN_BP_2_DESC	☐	CRMT_REPORT_FNKT_LONG	TEXT30	CHAR	30	0	Partner Function: Long Text
60	MAIN_BP_2_DESC_S	☐	CRMT_REPORT_FNKT_SHORT	TEXT4	CHAR	4	0	Partner Function: Short Text
61	MAIN_BP_2_NAMELIST	☐	AD_LINE_S	CHAR80	CHAR	80	0	One-line short form of formatted address
62	STATUS_USER_LONG	☐	CRMT_REPORT_STATUS_UL	CHAR100	CHAR	100	0	Longform User Status
63	STATUS_USER	☐	CRMT_REPORT_STATUS_U	CHAR40	CHAR	40	0	Shortform Status
64	STATUS_LONG	☐	CRMT_REPORT_STATUS_L	CHAR100	CHAR	100	0	Longform Status
65	PLANNEDDATEFROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
66	PLANNEDDATETO	☐	SC_DATETO	DATUM	DATS	8	0	End Date
67	PLANNEDZONE	☐	SC_ZONEFRO	TZNZONE	CHAR	6	0	Appointment calendar: Time zone of start of appointment	*
68	PLANNEDTIMEFROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
69	PLANNEDTIMETO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time
70	ACTUALDATEFROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
71	ACTUALDATETO	☐	SC_DATETO	DATUM	DATS	8	0	End Date
72	ACTUALZONE	☐	SC_ZONEFRO	TZNZONE	CHAR	6	0	Appointment calendar: Time zone of start of appointment	*
73	ACTUALTIMEFROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
74	ACTUALTIMETO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time
75	PROPOSEDDATEFROM	☐	SC_DATEFRO	DATUM	DATS	8	0	Start Date
76	PROPOSEDDATETO	☐	SC_DATETO	DATUM	DATS	8	0	End Date
77	PROPOSEDZONE	☐	SC_ZONEFRO	TZNZONE	CHAR	6	0	Appointment calendar: Time zone of start of appointment	*
78	PROPOSEDTIMEFROM	☐	SC_TIMEFRO	SYTIME	TIMS	6	0	From Time
79	PROPOSEDTIMETO	☐	SC_TIMETO	SYTIME	TIMS	6	0	To Time

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_ACTIVITY_ALV	CATEGORY	CRMC_ACT_CATEGOR	CATEGORY
2	CRMT_ACTIVITY_ALV	OBJECTIVE	CRMC_ACT_OBJ	OBJECTIVE
3	CRMT_ACTIVITY_ALV	PRIORITY	SCPRIO	PRIORITY

History

Last changed by/on	SAP	20140802
SAP Release Created in
