SAP ABAP Table CRMT_7510_SERVICE_UI (Service Order - UI Structure for Tool Issue Items)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure

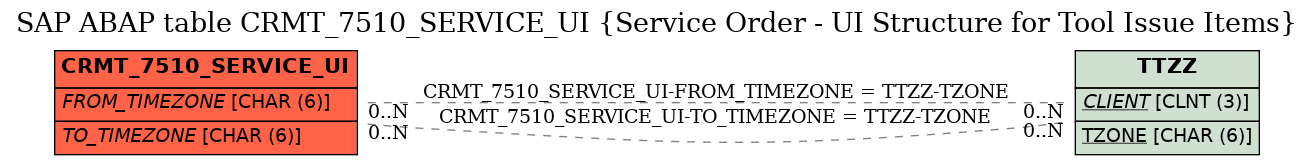

Structure	CRMT_7510_SERVICE_UI	Table Relationship Diagram
Short Description	Service Order - UI Structure for Tool Issue Items

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
5	PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
6	SELECTION_MARK	☐	CRMT_SELECTION_MARK	CRM_SELECTION_MARK	CHAR	1	0	Selection Indicator for Table Controls
7	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
8	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
9	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
10	NUMBER_PARENT	☐	CRMT_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Transaction
11	NUMBER_ALTERNATIVE	☐	CRMT_ITEM_NO_ALTERNATIVE	CRM_ITEM_NO	NUMC	10	0	Item for Which This Item is an Alternative in the Document
12	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
13	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
14	ITM_TYPE	☐	CRMT_ITEM_TYPE_SRV_TOOL	CRM_ITEM_TYPE	CHAR	4	0	Item Category for Service Tool	*
15	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
16	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
17	FROM_TIME_IO	☐	CRMT_TOOL_FROM_TIME_IO	TZTF_IO_FIELD	CHAR	26	0	Entry Field for Tool Output Time
18	FROM_TIME	☐	EV_FR_TIME	BCOS_TSTMP	DEC	15	0	Start Time Stamp: Date
19	FROM_TIMEZONE	☐	EV_FR_TIMEZONE	TZNZONE	CHAR	6	0	Start Time Zone: Date	TTZZ
20	FROM_FLAGFIXED	☐	EV_FR_FLAGFIXED	XFLAG	CHAR	1	0	Flag Whether Start Time is Fixed
21	TO_TIME_IO	☐	CRMT_TOOL_TO_TIME_IO	TZTF_IO_FIELD	CHAR	26	0	Input Field for Tool Return Time
22	TO_TIME	☐	EV_TO_TIME	BCOS_TSTMP	DEC	15	0	End Time Stamp: Date
23	TO_TIMEZONE	☐	EV_TO_TIMEZONE	TZNZONE	CHAR	6	0	End Time Zone: Date	TTZZ
24	TO_FLAGFIXED	☐	EV_TO_FLAGFIXED	XFLAG	CHAR	1	0	Flag Whether End Time is Fixed
25	DLV_GROUP	☐	CRMT_DLV_GROUP	CRMT_DLV_GROUP	NUMC	3	0	Delivery Group (Items are Delivered Together)
26	DLV_GROUP_DATE	☐	CRMT_DLV_GROUP_DATE	BCOS_TSTMP	DEC	15	0	Delivery Group Date
27	DLV_GROUP_DATE_IO	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
28	STATUS_ICON	☐	CRMT_ATP_ICON	SYCHAR132	CHAR	132	0	ATP Traffic light
29	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
30	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
31	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_7510_SERVICE_UI	FROM_TIMEZONE	TTZZ	TZONE
2	CRMT_7510_SERVICE_UI	TO_TIMEZONE	TTZZ	TZONE

History

Last changed by/on	SAP	20130604
SAP Release Created in	400
