SAP ABAP Table CRMT_7300_ALV_SERVICE_UI (Service Process Item Data - Grid Control)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure

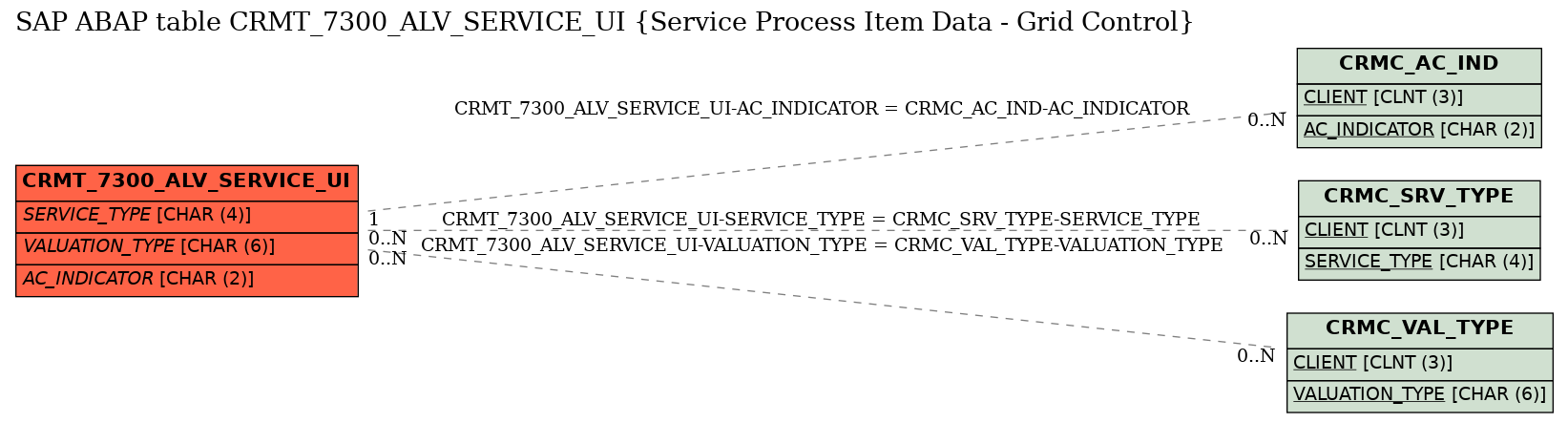

Structure	CRMT_7300_ALV_SERVICE_UI	Table Relationship Diagram
Short Description	Service Process Item Data - Grid Control

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Service Process - Service Product Items
2	.INCLUDE	☐				0	0	Management of Interface Structures
3	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
4	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
5	SCHED_GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
6	SELECTION_MARK	☐	CRMT_SELECTION_MARK	CRM_SELECTION_MARK	CHAR	1	0	Selection Indicator for Table Controls
7	OBJECT_TYPE	☐	CRMT_SWO_OBJTYP_PROCESS_ITEM	CRM_OJ_NAME_PROCESS_ITEM	CHAR	10	0	CRM Item Object Type	*
8	NUMBER_INT	☐	CRMT_ITEM_NO	CRM_ITEM_NO	NUMC	10	0	Item Number in Document
9	NUMBER_PARENT	☐	CRMT_ITEM_NO_PARENT	CRM_ITEM_NO	NUMC	10	0	Higher-Level Item Number in Transaction
10	ORDERED_PROD	☐	CRMT_ORDERED_PROD	CRM_ORDERED_PROD	CHAR	54	0	Product Name Entered
11	DESCRIPTION	☐	CRMT_DESCRIPTION	TEXT40	CHAR	40	0	Description
12	ITM_TYPE	☐	CRMT_ITEM_TYPE_SRV_PROD	CRM_ITEM_TYPE	CHAR	4	0	Item Category for Service Product	*
13	QUANTITY	☐	CRMT_SCHEDLIN_QUAN	MENG13	QUAN	13	3	CRM Schedule Line Quantity
14	QTY_UNIT	☐	CRMT_PROCESS_QTY_UNIT	MEINS	UNIT	3	0	Unit of Measure in Which the Product Is Sold	*
15	FROM_TIME_IO	☐	TZTF_IO_FIELD	TZTF_IO_FIELD	CHAR	26	0	Field for Date Input
16	MODE	☐	CRMT_MODE	CRM_MODE	CHAR	1	0	Processing Mode of Transaction
17	ORDER_QTY	☐	CRMT_QTY_ORDER	MENG13	QUAN	13	3	CRM: Order Quantity
18	CONFIRMED_QTY	☐	CRMT_QTY_CONFIRMED	MENG13	QUAN	13	3	CRM: Confirmed Quantity
19	SERVICE_TYPE	☐	CRMT_SERVICE_TYPE	CRMT_SERVICE_TYPE	CHAR	4	0	Service Type	CRMC_SRV_TYPE
20	VALUATION_TYPE	☐	CRMT_VALUATION_TYPE	CRMT_VALUATION_TYPE	CHAR	6	0	Valuation Type	CRMC_VAL_TYPE
21	DISPO_FLG	☐	CRMT_SRV_DISPO_FLG	FLAG	CHAR	1	0	Relevant for Resource Planning
22	CONFIRM_RELEVANT	☐	CRMT_CONFIRM_RELEVANT	CRM_BOOLEAN	CHAR	1	0	Relevant for Confirmation
23	PROC_IDENT	☐	CRMT_ITM_PROC_IDENT	CRM_ITM_PROC_IDENT	CHAR	4	0	Process Identifier
24	STATUS_TXT	☐	J_TXT30	TEXT30	CHAR	30	0	Object status
25	AC_INDICATOR	☐	CRMT_AC_INDICATOR	CRMT_AC_INDICATOR	CHAR	2	0	Accounting Indicator	CRMC_AC_IND
26	PROBABILITY	☐	CRMT_ORDER_PROBABILITY	CRM_PROBABILITY	NUMC	3	0	Order Probability
27	CELL	☐	LVC_T_STYL		TTYP	0	0
28	CT	☐	LVC_T_SCOL		TTYP	0	0

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_7300_ALV_SERVICE_UI	AC_INDICATOR	CRMC_AC_IND	AC_INDICATOR		1	CN
2	CRMT_7300_ALV_SERVICE_UI	SERVICE_TYPE	CRMC_SRV_TYPE	SERVICE_TYPE
3	CRMT_7300_ALV_SERVICE_UI	VALUATION_TYPE	CRMC_VAL_TYPE	VALUATION_TYPE

History

Last changed by/on	SAP	20130604
SAP Release Created in	20C
