SAP ABAP Table CRMT_7220_SALES_UI (Item Data Detail Shipping)

Hierarchy

☛ BBPCRM (Software Component) BBPCRM
   ⤷ CRM-BTX-BF (Application Component) Basic Functions for Business Transactions
     ⤷ CRM_USERFACE (Package) User Interface One Order

Basic Data

Table Category	INTTAB	Structure
Structure	CRMT_7220_SALES_UI	Table Relationship Diagram
Short Description	Item Data Detail Shipping

Delivery and Maintenance

Pool/cluster
Delivery Class
Data Browser/Table View Maintenance	Display/Maintenance Allowed with Restrictions

Components

	Field	Key	Data Element	Domain	Data Type	Length	Decimal Places	Short Description	Check table
1	.INCLUDE	☐				0	0	Management of Interface Structures
2	GUID	☐	CRMT_OBJECT_GUID	SYSUUID	RAW	16	0	GUID of a CRM Order Object
3	HANDLE	☐	CRMT_HANDLE		NUMC	10	0	Handle
4	DLV_PRIO	☐	CRMT_DLV_PRIO	CRM_DLV_PRIO	NUMC	2	0	Delivery Priority	CRMC_DLV_PRIO
5	ORDERCOMBIND	☐	CRMT_ORDERCOMBIND	CRM_BOOLEAN	CHAR	1	0	Indicator: Order Combination
6	NET_WEIGHT	☐	CRMT_NET_WEIGHT	MENG15	QUAN	15	3	Net Weight
7	GROSS_WEIGHT	☐	CRMT_GROSS_WEIGHT	MENG15	QUAN	15	3	Gross Weight
8	WEIGHT_UNIT	☐	COMT_WEIGHT_UNIT	MEINS	UNIT	3	0	Weight Unit	T006
9	VOLUME	☐	CRMT_VOLUME	MENG15	QUAN	15	3	Volume Occupied by the Product per Volume Unit
10	VOLUME_UNIT	☐	COMT_VOLUME_UNIT	MEINS	UNIT	3	0	Unit for the Volume of a Product	T006
11	DELI_UNLIM_TOL	☐	CRMT_DELI_UNLIM_TOL	CRM_BOOLEAN	CHAR	1	0	Indicator: Unlimited Overdelivery Allowed
12	OVER_DLV_TOL	☐	CRMT_OVER_DLV_TOL	PRZ21	DEC	3	1	Overdelivery Tolerance Limit
13	UNDER_DLV_TOL	☐	CRMT_UNDER_DLV_TOL	PRZ21	DEC	3	1	Underdelivery Tolerance Limit
14	DELIVERY_BLOCK	☐	CRMT_DELIVERY_BLOCK	CRMT_BUS_DEL_BLOCK_REASON	CHAR	2	0	Delivery Block	CRMC_BUPA_CDBL
15	PART_DLV_ITM	☐	CRMT_PART_DLV_ITM	CRM_PART_DLV_ITM	CHAR	1	0	Delivery Control (Item)
16	TRANS_MOT	☐	CRMT_TRANS_MOT	CRM_TRANS_MOT	CHAR	2	0	Mode of Transport	CRMC_TRANS_MOT
17	GEOROUTE	☐	CRMT_GEOROUTE	CRM_GEOROUTE	CHAR	10	0	Route
18	GEOROUTE_SRC	☐	CRMT_GEOROUTE_SRC_IND	CRM_SOURCE_IND	CHAR	1	0	Source Indicator of Route
19	CARRIER_SRC	☐	CRMT_CARRIER_SRC_IND	CRM_SOURCE_IND	CHAR	1	0	Origin Indicator of Carrier
20	TRANS_MEANS	☐	CRMT_TRANS_MEANS	CRM_TRANS_MEANS	CHAR	10	0	Means of Transport (from SCM System)
21	INV_BEFORE_GI	☐	CRMT_BEFORE_LOADING	CRM_BEFORE_LOADING	CHAR	1	0	Invoice Before Goods Issue (IBGI)
22	EXLIC_IMPORT	☐	CRMT_EXLIC_IMPORT	CRMT_EXLIC	CHAR	40	0	Import License (Control Master Number from GTS)
23	MAX_PL_DLV	☐	CRMT_MAX_PL_DLV		DEC	1	0	Maximum number of partial deliveries allowed per item

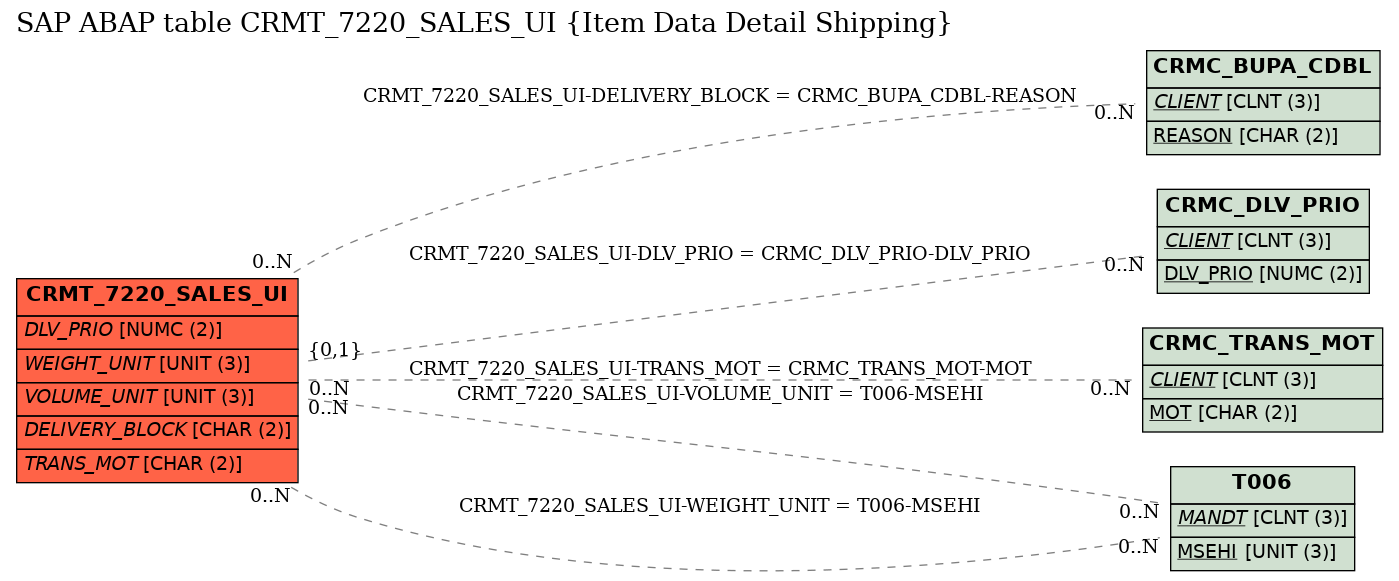

Foreign Keys

	Source Table	Source Column	Foreign Table	Foreign Column	Dependency Factor	Cardinality left	Cardinality right
1	CRMT_7220_SALES_UI	DELIVERY_BLOCK	CRMC_BUPA_CDBL	REASON
2	CRMT_7220_SALES_UI	DLV_PRIO	CRMC_DLV_PRIO	DLV_PRIO	REF	C	CN
3	CRMT_7220_SALES_UI	TRANS_MOT	CRMC_TRANS_MOT	MOT
4	CRMT_7220_SALES_UI	VOLUME_UNIT	T006	MSEHI
5	CRMT_7220_SALES_UI	WEIGHT_UNIT	T006	MSEHI

History

Last changed by/on	SAP	20060208
SAP Release Created in
